ILLUSTRATED PARTS/RECOMMENDED PARTS

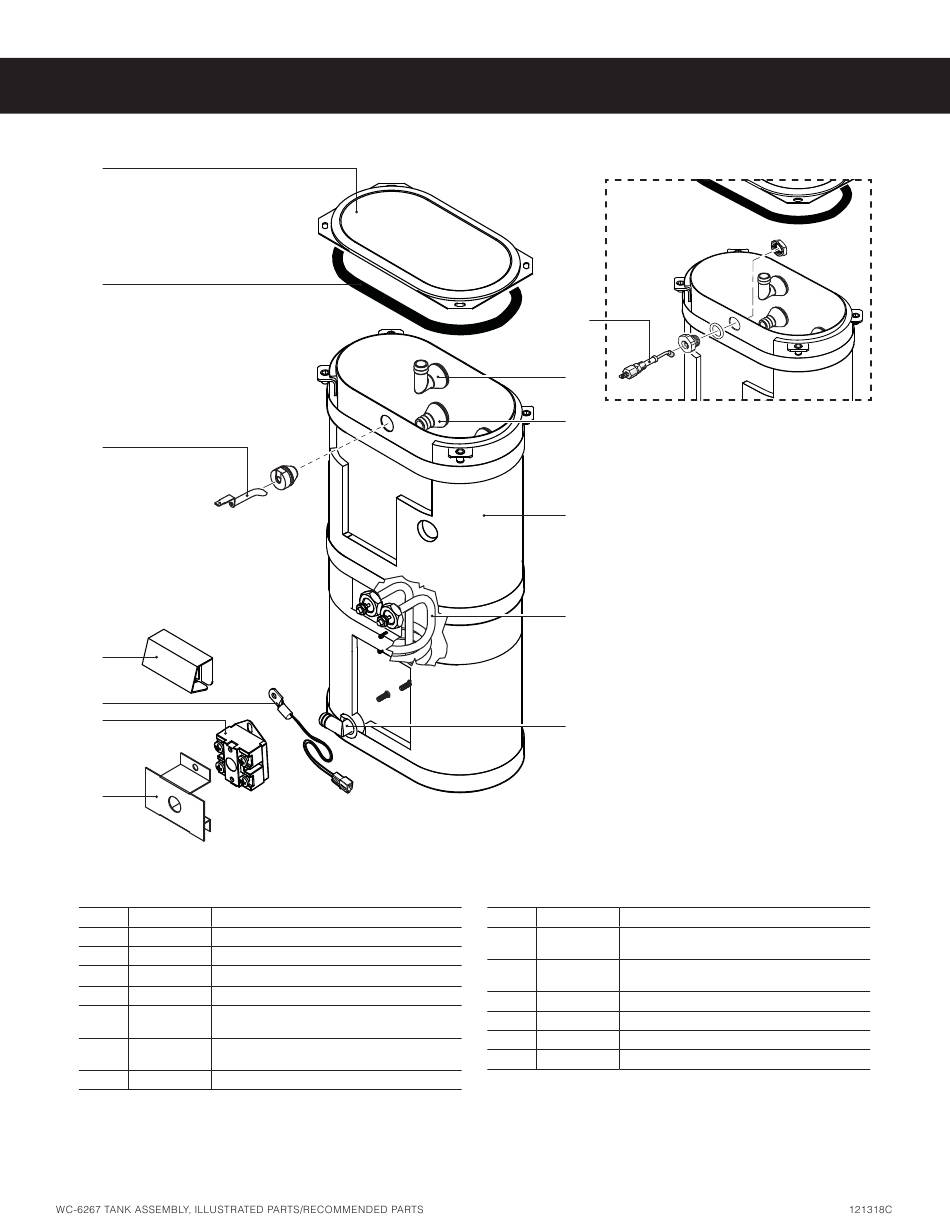

WC-6267 - Tank Assembly
2
3
4A
7
6
8
12
WC-6267 - Tank Assembly - Parts List
ITEM # PART # DESCRIPTION
1 WC-6267 TANK, COMPLETE ALP-DS/GT 220V
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062* GASKET, TANK LID
1
4A WC-5528K* KIT, WATER LEVEL PROBE, SILICONE
KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING,
2
4B WC-5502-01*
O-RING & NUT
KIT,ELEMENT HEATING 3.5KW 220V W/JAM NUTS
5 WC-922-04*
& SILICONE WASHERS
6 WC-1438-101* SENSOR, TEMPERATURE TANK
1 Units built 01/04/2019 and later.
2 Units built before 01/04/2019. Replaces WC-5527.
* Recommended parts to stock.
4B
10
11
Water Level Probe Detail
1
5
9
ITEM # PART # DESCRIPTION
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
7 WC-4394*
HEATING ELEMENT
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
8 WC-522*
277V 40A
9 WC-37365* KIT, FITTING TANK INLET
10 WC-37266* KIT, FITTING TANK OVERFLOW
11 WC-37317* KIT, STRAIGHT FITTING & BUSHNG 8mm GEN USE
12 WC-43055* GUARD, SHOCK RESET THERMOSTAT (WC-522)
IP59
(Older Units)
