SVAT Compact Security System CLEARVU6 Specifications page 2

Compact Security System
1
2
8" LCD Monitor
1. LCD Screen
Watch your footage.
2. Power Button
Turn LCD Monitor ON/ OFF.
3. AV1/AV2 In Ports
Connection to video input sources.
4. 3.5mm Headphone Jack
Connects to stereo headphones.
5. Power Input
DC power input (12V)
6. Speakers
FEATURES OF THE CLEARVU6
8"
8" Ultra Slim LCD
View your cameras live on the included monitor. You
can even set the monitor to automatically cycle
between both cameras.
IR Night Vision
These cameras come equipped with 12 infrared LEDs
that allow you to see in the dark, up to 15 feet away!
They activate automatically when it gets dark, and
deactivate during the day to save energy (CDS sensor).
WHAT IS INCLUDED
• 2 Indoor/Outdoor Night Vision CCD Color Cameras
• 1x 8" Ultra Slim LCD Monitor
• 1 Remote Control for LCD Monitor
• 2x 60ft 4 PIN DIN to RCA Video/Power Wires
(female) (male)
• 2x RCA (female) to 3.5mm (male) A/V wires
• Power Adapter for LCD Monitor
• 2 Power Adapters for Cameras
• Mounting Hardware
• 6 Window Warning Stickers
SVAT Electronics
Toll Free: 1.866.946.7828
w/ 8" LCD Monitor and 2 Hi-Res Indoor/Outdoor Night Vision CCD Cameras

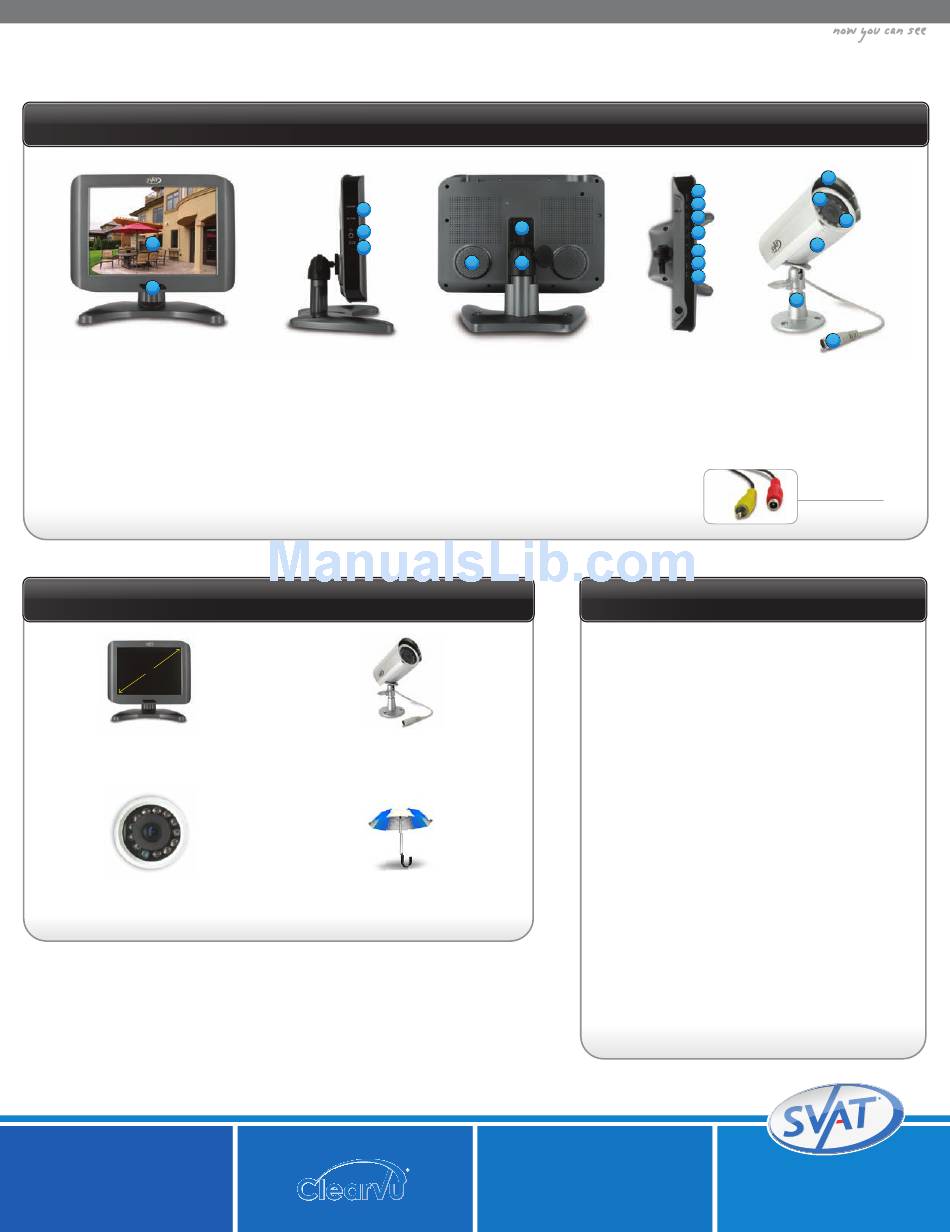

CLEARVU6 HOT SPOTS
3
4
5
7. Mounting Rails
8 . Mounting Hole
9. AV1/AV2 Button
Switch between input channels.
10. Pics Button
Changes picture set.
11. Auto Button
Automatically cycles through both
input channels.
12. Volume Increase/Decrease Buttons
13. Up/Down Arrow Buttons
Navigate the on-screen menu.
Hi-Res Indoor/Outdoor CCD Camera
The high quality CCD image sensor in this camera
provides a clear, crisp and consistent picture at
420 TV lines of resolution. It also allows you to
better distinguish facial features, which can help
in the positive identification of individuals.
Weatherproof Camera
These cameras are built for the outdoors with
(1) professional grade weatherproof housing
a sunshade.
• Online/Toll Free Support
(1)
IR illumination range up to 15ft
(4.5M) under ideal conditions.
• Instruction Manuals
Objects at or beyond this range
• Mounting Hardware
may be partially or completely
obscured, depending on the
• 1 Year Warranty
camera application.
• Online/Toll Free Support
(2)
Not for use in direct exposure to
water, rain or snow
UPC#
CLEARVU6 ~ 871363006783
7
6 8
14. Menu Button
Enters the on-screen menu.
15. Mute Button
CCD Color Camera
16. Sun Shield
Helps prevent glare from bright lights.
17. Infrared (IR) LEDs
Allows the camera to see in the dark
up to 15ft away.
18. CDS Sensor
Turns on the infrared LEDs when it
gets dark out.
LCD MONITOR
Display.................................... 8" Color LCD
Resolution ............................. 480 x 468
Source of Light .................... CCFL
Video Inputs ......................... 2x 3.5mm jack (RCA to 3.5mm
Auto Video Sequence ....... Yes, Adjustable Interval Time
Video Outputs ..................... No
Audio Input...........................2x 3.5mm jack (RCA to 3.5mm
Audio Output....................... 1x 3.5mm headphone jack
LCD Profile Ratio ................. 4.3
Contrast Ratio...................... 150:1
Brightness ............................. 300cd/m2
Sleep Timer...........................Yes
OUTDOOR CAMERA (CV67)
Camera Type.........................Bullet
(2) and
Image Sensor....................... 1/4" Color CCD
Resolution ............................. 420 TV Lines
Outdoor Use.........................Yes
IP Rating.................................IP65
Focal Length......................... 3.6mm
Night Vision ..........................Yes
DIMENSIONS
LCD Monitor: 8.375" x 6.5" x 1.25" ~ 1.6lbs
Camera: 5.5" x 5" x 2.44" ~ 0.85lbs
(For complete specifications visit www.svat.com)
SVAT, CLEARVU and "now you can see"
are trademarks of SVAT Electronics.
©2008 SVAT Electronics
All Rights Reserved
SVAT ELECTRONICS
16
9
17
10
11
18
12
19
13
14
15
20
21
19. Camera Housing
Made of anodized aluminum to
prevent rust.
20. Camera Mount
Allows the camera to be desk
or wall mountable.
21. Connection to Audio/Video Wire
Converts to RCA.
60ft Extension Wire
Ends on the 60ft extension wire.
Power (red), & Video (yellow)
SPECIFICATIONS
wire provided)
wire provided)
Model #
CLEARVU6
