Fx22/fx62 supervisory controller gprs modem option card

Advertisement

FX22/FX62 Supervisory Controller
GPRS Modem Option Card
Installation Instructions
LP-FXGPRSU-0
Applications
This document describes the mounting and cabling of a
General Packet Radio Service (GPRS) wireless
modem option kit for FX22/FX62 Supervisory
Controllers without the factory-installed onboard GPRS
modem (models LP-FX2211T-0 and LP-FX6211T-0).
This GPRS modem option card is a Global System for
the Mobile Communications (GSM) cellular modem
option card that uses GPRS data technology. The
option card has two Light-Emitting Diodes (LEDs) to
indicate status and signal.
The GPRS modem option card installs into the only
option card slot in the FX22/FX62 Supervisory
Controller.
The GPRS modem option card is not supported if the
FX22/FX62 Supervisory Controller has the
factory-installed onboard GPRS modem (models
LP-FX2213T-0 and LP-FX6213T-0).
At the time of this document, only a Subscriber Identity
Module (SIM) card provisioned by the Wyless™ Group
is supported for use in the United States.
For the software configuration and operation of the
installed GPRS modem option, refer to:
FX GPRS Modem Technical Bulletin
(LIT-12011639)
For information on mounting and wiring an FX22/FX62
Supervisory Controller, refer to:
FX22/FX62 Supervisory Controller Installation
Instructions (Part No. 24-10564-9)
For installation details on the GPRS modem option
(LP-FXGPRS-0) for FX20/FX60/FX70 Supervisory
Controllers, refer to:
FX20/FX60/FX70 GPRS Installation Instructions
(Part No. 24-10564-68)
FX22/FX62 Supervisory Controller GPRS Modem Option Card Installation Instructions
Part No. 24-10564-25, Rev. —
LEDs (2):
Status
Signal
SMA Coax
Cable and
Mounting
Bracket for
connecting
Antenna

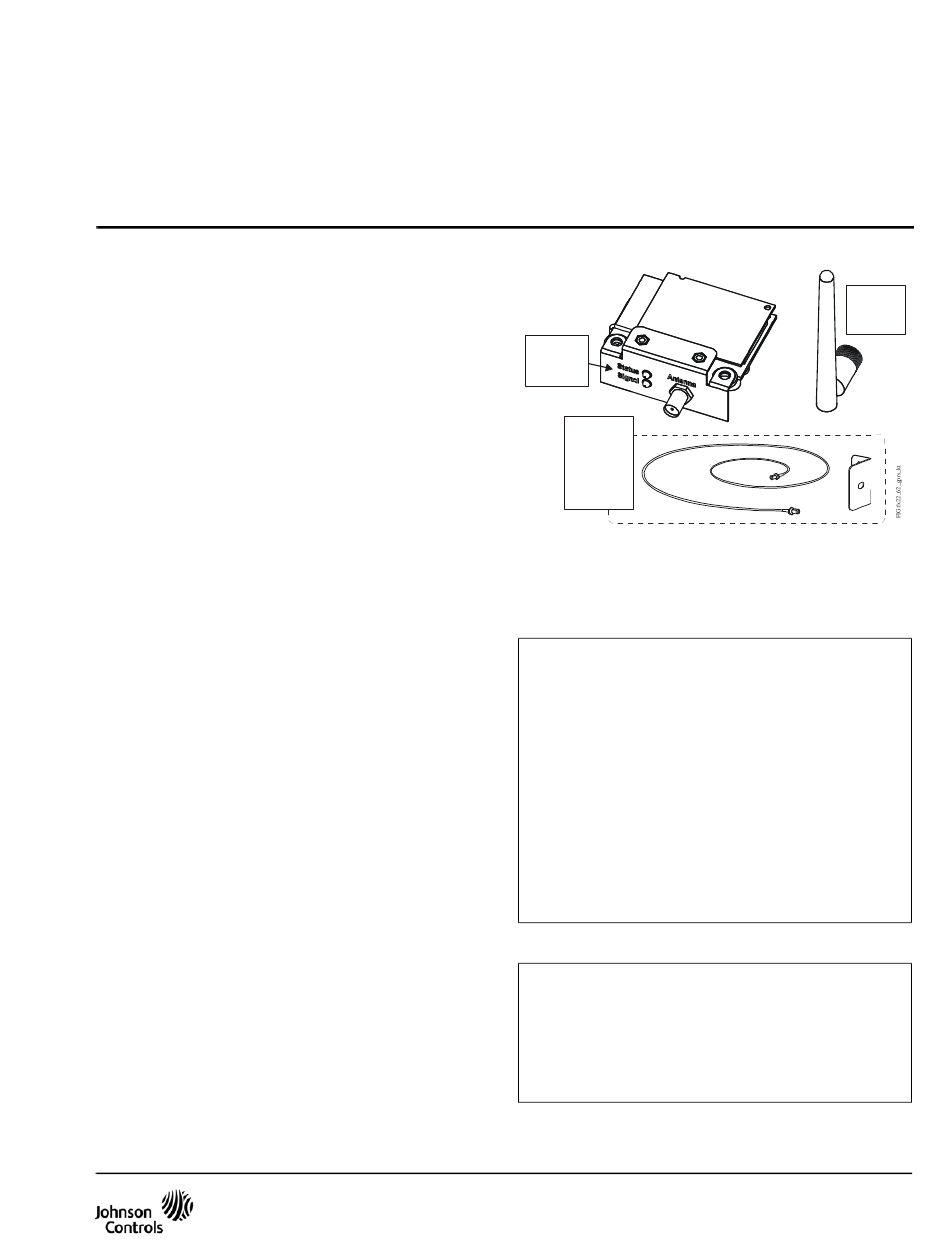

Figure 1: FX22/FX62 GPRS Modem Option Kit
North American Emissions Compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case
the user will be required to correct the interference
at his/her own expense.
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Issued October 29, 2010
Supplied
Stub
Antenna
1
