2. Product overview

Motorized change-over switches (type OTM_C) are suitable for remote control. You can operate the
motorized change-over switches either electrically by using the motor operator or manually by using
the handle. The operation, either electrical or manual, can be chosen by the selector switch "Motor/
Manual" on the motor operator. Motorized change-over switches consist of the change-over switch
and the motor operator.
5

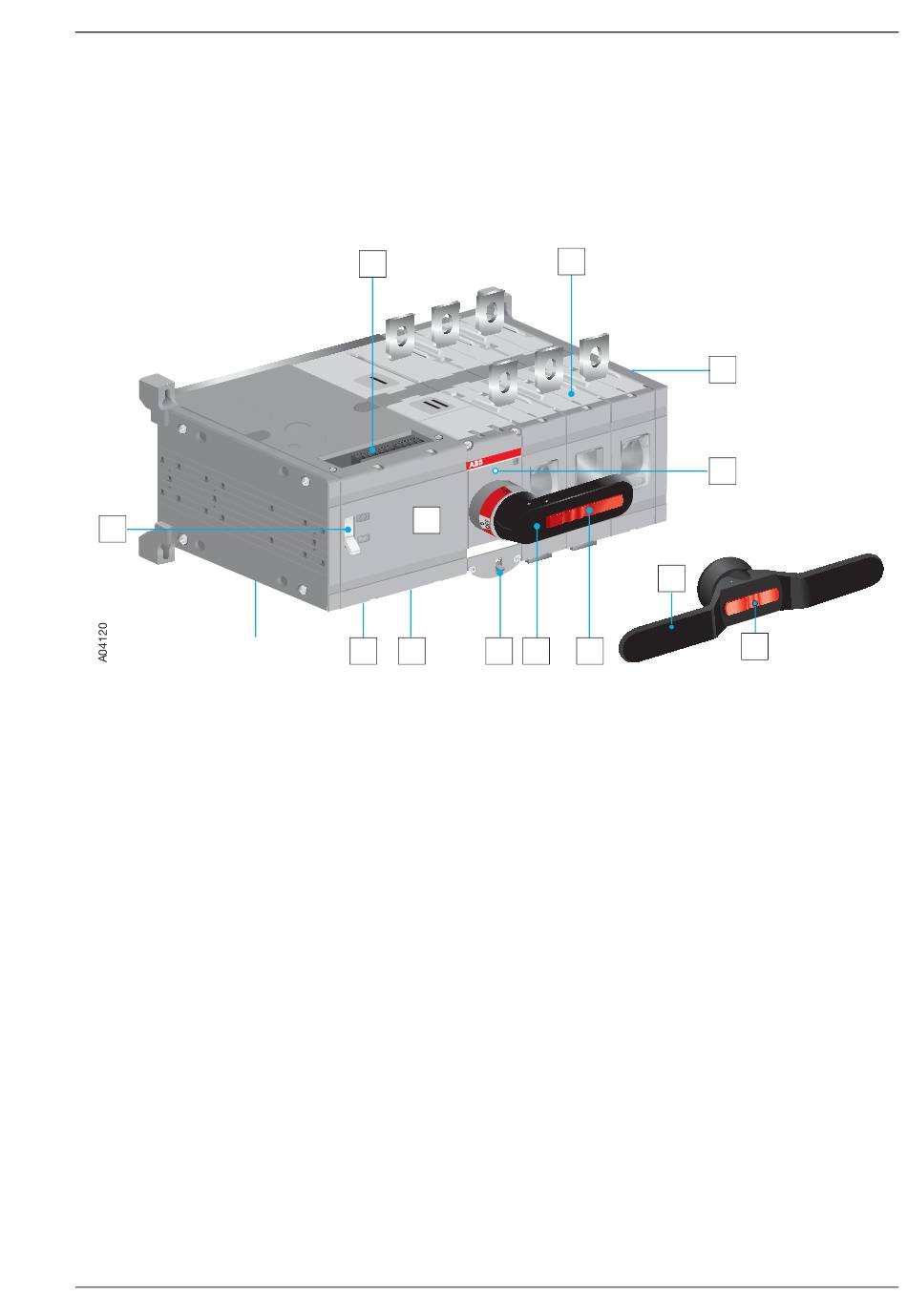

Figure 2.1 Motorized change-over switch (type OTM_C)
1 Change-over switch
2 Motor operator
3 Switch panel, the operating mechanism
4 Handle for manual operation, double grip handle in sizes OTM1000-3200_C
5 Motor/Manual selection
6 Terminals for motor operator voltage supply
7 Terminals for push-buttons
8 Fuse (F1) of motor operator
9 Locking latch for releasing the handle and locking electrical operation
10 Locking clip for locking manual operation
11 Terminals for locking state information
12 Place for auxiliary contacts
11
2
M M M M
M a n . M a n . M a n .
8 6
7
1SCC303002M0206 l ABB Installation and operating instructions, 34OTM_C rev. F l 5
1
4
9 4 10
2. Product overview
12
3
10
