A U T O M AT I C T R A N S F E R S W I T C H , O T M _ C _ 2 1 D
—

Product overview

Product overview
The OTM_C_21D automatic transfer switch can be
used as a source transfer switch in a threephase or
single-phase networks. Monitored conditions are,
no-voltage, phase-loss, overvoltage and under-
voltage detection, transfer delays, generator start
and stop, and remote test function.
11
1. Handle for manual operation
2. Place for auxiliary contact blocks
3. Push button
4. Mimic panel
5. Voltage sensing connections
6. Locking clip for padlock
The standard package includes:
1. automatic transfer switch, 2. handle, 3. handle storage clip and 4. terminal plug.
7
9

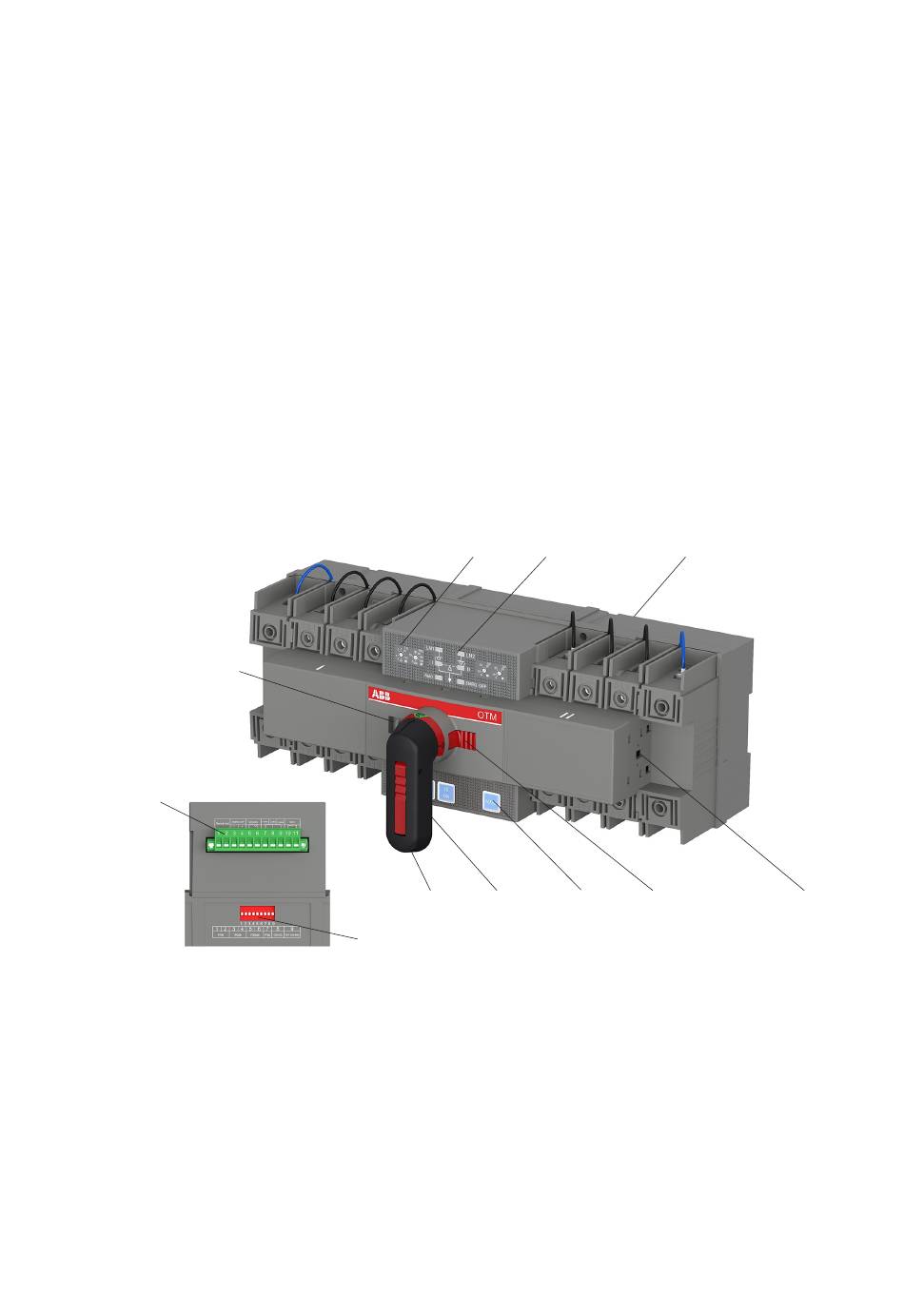

Figure 1. OTM_C_21D automatic transfer switch
Source transfer can be performed using a manu-
ally operated handle, locally using push buttons or
fully automatically. The automatic mode includes
several operating methods: Line 1 priority, no line
priority and manual back switching mode.
10 4
8 1 3
7. Locking latch for releasing the handle and
locking electrical control
8. Locking clip for locking manual operation
9. Dip switches
10. Rotary switches
11. Connecting terminal
5
6 2
