Installation without Brackets

The Vyper-KV25 and the Vyper-KV52 loudspeakers can be
eventually installed without brackets, taking advantage of the
M5 through holes hidden by the outer grill. This entitles to
use either a proper screw with 4 mm (0,16 in) max diameter,
or a M5 bolt, according to the mounting surface.
Follow the instructions for wall mounting the Vyper-KV52
loudspeaker without brackets; the procedure is the same for
the Vyper-KV25.

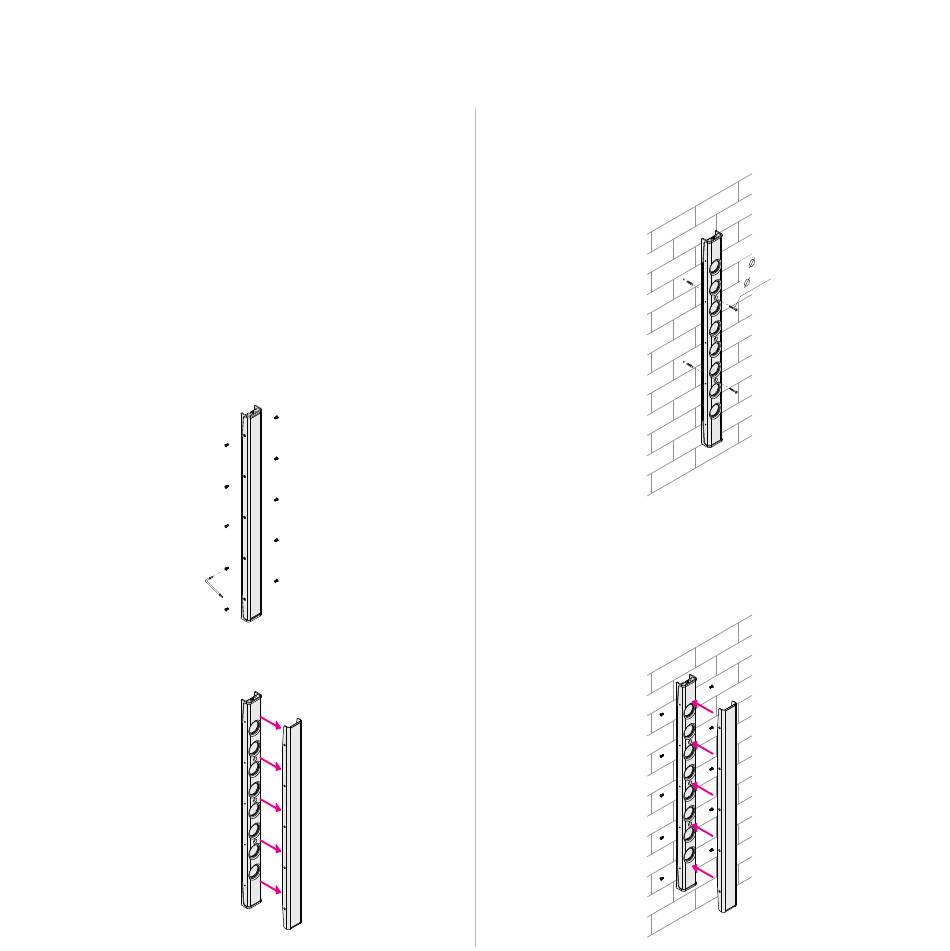

1. Unscrew the M3x6mm screws that tighten the grill
from the sides of the loudspeaker, using a Torx T10
screwdriver;
Torx T10
2. Gently remove the grill from the loudspeaker;
3. Use the proper screw and plug for mounting the
loudspeaker on the surface;
4. Reposition the outer grill on the loudspeaker and
tighten the screws.
