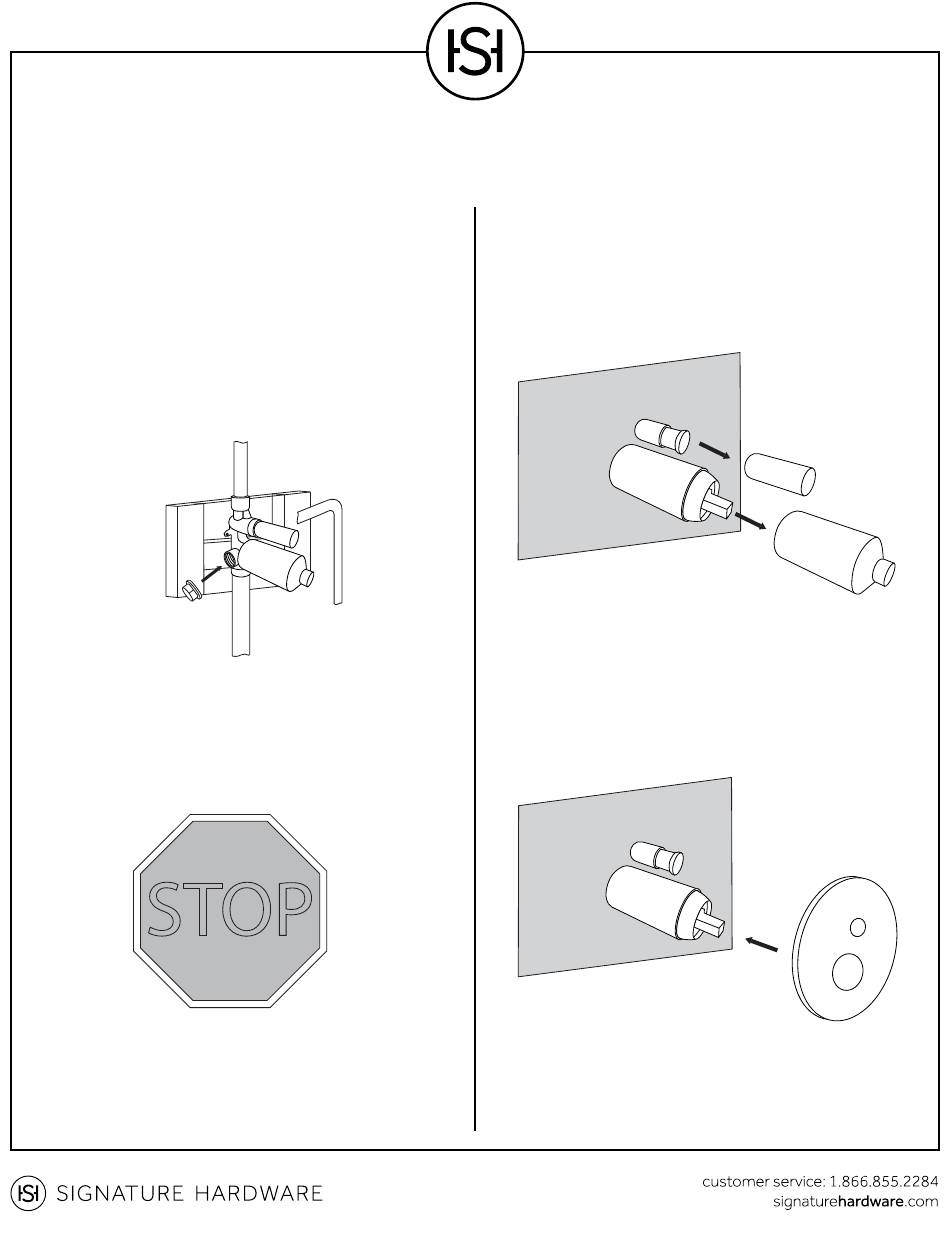

Step 2: Trim Installation - Signature Hardware LATTIMORE Installation Instructions

LATTIMORE SHOWER SET INSTALLATION
4. Once all piping is routed and connections have been
made, use a ½" test plug to perform a water pressure
test. Turn on the main water supply to your home and
water test the installed plumbing. Ensure that there are
no leaks, then shut the water off. Remove the test plug.
Note: Water pressure testing should be performed by a
licensed plumber if you are not familiar with this proce-
dure.
IMPORTANT: COMPLETE THE CONSTRUCTION OF
YOUR WALL, INCLUDING ANY FINISHED WALL
MATERIALS SUCH AS TILE, BEFORE PROCEEDING
WITH THE REMAINDER OF THE INSTALLATION.
STOP

Step 2: Trim Installation

1. Once the finished wall is complete, remove the
protective sleeves from the valve. If the test plug has
not yet been removed, remove that as well.
2. Slide the decorative back plate onto the valve.
Lattimore Shower Set Installation Instructions 3
