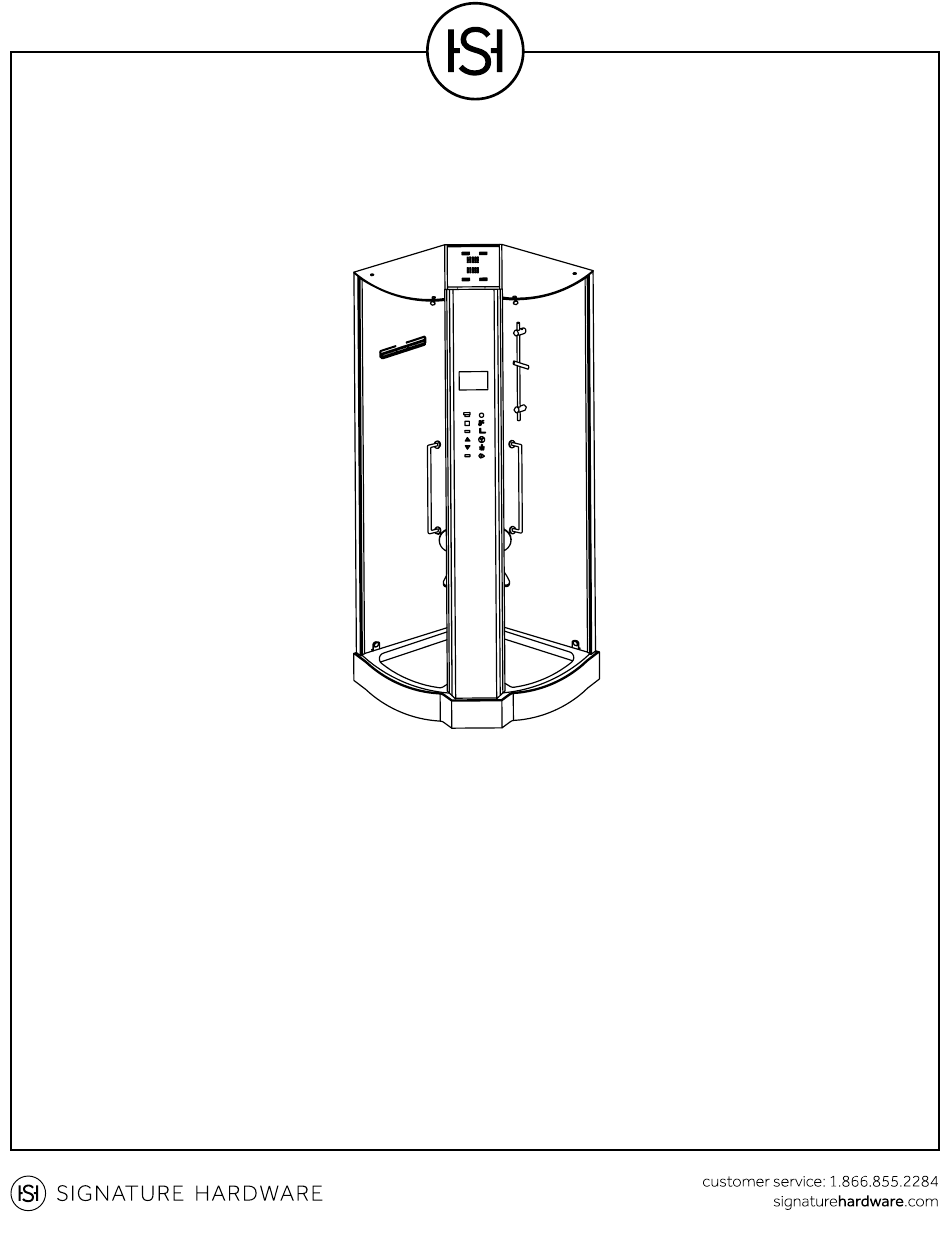

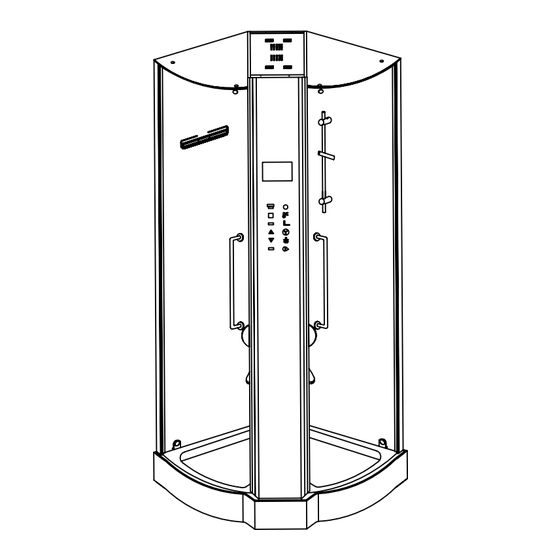

LEVENS STEAM SHOWER ENCLOSURE
INSTALLATION AND USER MANUAL
CONTENTS
Steam Shower Enclosure Installation........................................2
Technical Information...................................................................2
Plumbing Requirements..............................................................2
Assembly.......................................................................................3
Tools and Materials.....................................................................3
Installation..................................................................................3
Safety Information......................................................................13
Steam Cabin Technical Specifications.....................................14
User Manual................................................................................14
LCD Display..............................................................................14
Control Panel............................................................................15
Steam Generator Cleaning........................................................19
Troubleshooting..........................................................................20
Levens Steam Shower Enclosure Installation and User Manual
1
Advertisement
Table of Contents
Related Manuals for Signature Hardware LEVENS STEAM
Summary of Contents for Signature Hardware LEVENS STEAM
-
Page 1: Table Of Contents
INSTALLATION AND USER MANUAL CONTENTS Steam Shower Enclosure Installation........2 Technical Information..............2 Plumbing Requirements..............2 Assembly..................3 Tools and Materials..............3 Installation..................3 Safety Information..............13 Steam Cabin Technical Specifications........14 User Manual................14 LCD Display................14 Control Panel................15 Steam Generator Cleaning............19 Troubleshooting................20 Levens Steam Shower Enclosure Installation and User Manual... -
Page 2: Steam Shower Enclosure Installation
Service. We recommend that all plumbing and electrical rough-in work be completed by a professional prior to shower enclosure assembly. Signature Hardware accepts no liability for any damage to the enclosure, walls, floor, or for personal injury during installation. TECHNICAL INFORMATION •... -
Page 3: Assembly
1. Set the shower tray in place. Place a level on the tray and adjust the tray legs as necessary until completely straight. Each leg should be touching the floor. Adjustable Foot 2. Attach the hand spray slide bar to the right wall panel. Levens Steam Shower Enclosure Installation and User Manual... - Page 4 3. Attach the shower basket to the left wall panel. 4. Attach the top and bottom corner braces to the wall panels. Levens Steam Shower Enclosure Installation and User Manual...
- Page 5 5. Attach the magnetic seals and handle set to the door panel. 6. Attach the magnetic seals to the top cover. Levens Steam Shower Enclosure Installation and User Manual...
- Page 6 7. Install the back column. 8. Install the fixed wall panels. Levens Steam Shower Enclosure Installation and User Manual...
- Page 7 9. Attach the front column to the shower tray. 10. Install the ceiling shower between the two columns. Levens Steam Shower Enclosure Installation and User Manual...
- Page 8 11. Connect the flexible water feed tubs and electrical wiring to the corresponding outlets. 12. Attach the front panel to the front column. Attach the seal strips to the tops of the glass panels. Levens Steam Shower Enclosure Installation and User Manual...
- Page 9 13. Install the glass doors. 14. Attach the glass ceiling. Levens Steam Shower Enclosure Installation and User Manual...
- Page 10 15. Attach the ceiling shower cover. 16. Attach the shower seat backrest to the back column. Levens Steam Shower Enclosure Installation and User Manual...
- Page 11 17. Install the shower seat. 18. Install the seal strips according to the drawing specifications to prevent leakage. Levens Steam Shower Enclosure Installation and User Manual...
- Page 12 20. Connect the water supply and electricity. Push the shower into place if necessary. Use a screwdriver and rubber mallet to push the seal strips inside the door frame flush against the wall. Levens Steam Shower Enclosure Installation and User Manual...
-
Page 13: Safety Information
• Fetal damage in pregnant women • Physical inability to exit the steam shower • Unconsciousness WARNING – The use of alcohol, drugs, or medication can greatly increase the risk of hyperthermia Levens Steam Shower Enclosure Installation and User Manual... -
Page 14: Steam Cabin Technical Specifications
6. FM Radio Function 7. FM Radio Volume 8. FM Radio Channel 9. Chromatherapy ON/OFF 10. Fan ON/OFF 11. Steam ON/OFF 12. Power ON Indicator 13. FM Radio Channel 14. MP3 ON/OFF Levens Steam Shower Enclosure Installation and User Manual... -
Page 15: Control Panel
2. LCD Display 3. Control Panel 4. Water Diverter 5. Water Volume Adjustment 6. Water Temperature Adjustment 7. Back Massage Jet 8. Steam Outlet 9. Hand Shower Set 10. Steam Generator Cleaning Liquid Jet Levens Steam Shower Enclosure Installation and User Manual... - Page 16 The default steam timer setting is 45 minutes. To adjust the timer setting, push the Steam Timer Setting button (Image 4) until the desired time is reached. The system automatically shuts off at the end of the specified time. Image 4 Levens Steam Shower Enclosure Installation and User Manual...
- Page 17 The steam function is automatically turned off when the cabin temperature reaches 4 degrees higher than the set temperature and on when the temperature drops to 4 degrees Image 8 below the set temperature. Image 9 Levens Steam Shower Enclosure Installation and User Manual...
- Page 18 Push the buttons to make adjustments as necessary. Image 12 To change the channel, press the button twice when the radio is on (Image 13). Push the buttons to scan. Image 13 Levens Steam Shower Enclosure Installation and User Manual...
-
Page 19: Steam Generator Cleaning
Do not shut off the control system, the system will drain the dirty water automatically after 60 minutes. Repeat these steps to clean the steam generator every 3 months. Levens Steam Shower Enclosure Installation and User Manual... -
Page 20: Troubleshooting
If the water flow volume is low: • Impurities in the water supply can clog the filter resulting in low water flow. To remove clogs, remove the filter and rise with warm water. Levens Steam Shower Enclosure Installation and User Manual...
