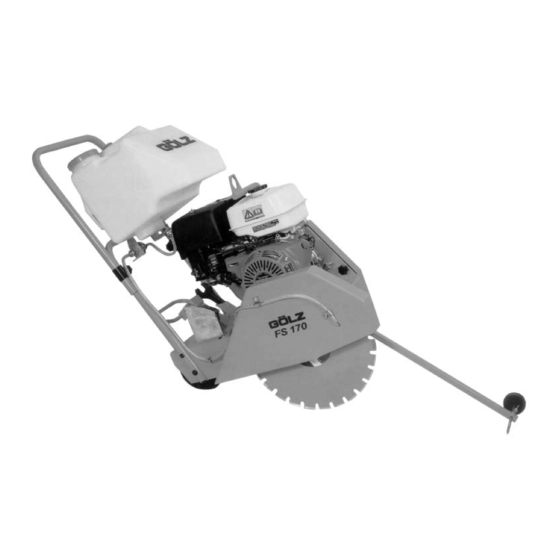

FLOOR SAW
FS 130 - FS 170
0282 170 0989/05.05
r:\technik\techdoku\englisch\fs\130-170\02821700989.indd
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS 170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GÖLZ FS 170

Summary of Contents for GÖLZ FS 170

  • Page 1 FLOOR SAW FS 130 - FS 170 0282 170 0989/05.05 r:\technik\techdoku\englisch\fs\130-170\02821700989.indd...
  • Page 3 Telefax: (02482) 12135 CE-Declaration of Conformity We declare, the product Name: FLOOR SAW Manufacturer: GÖLZ Type: FS 130 - FS 170 Serial number: __________ is in conformity with the Directives 98/37/EC 89/336/EWG i.d.F. 93/68/EWG 97/68/EC i.d.F. 2002/88/EC 2000/14/EC as well as with the standards EN 13862:2001 EN 13309:2000;...

  • Page 4: Table Of Contents

    Contents 1. Basic informations ..........5 2. Fundamental safety instructions ......5 3. Description ............9 4. Transport ............. 13 5. Installation and operation ........13 6. Maintenance ............17 7. Troubleshooting ..........19 8. Safety checks on electrical systems ....21 9.

  • Page 5: Basic Informations

    1. Basic informations Thanks for choosing a GÖLZ-product. This operating instruction is designed to familiarize the user with the machine and its designated use. The operating instruction contains important information on how to operate the machine safely, properly and most effi ciently. Observing these instructions helps to avoid danger, to reduce repair costs and downtimes and to increase the reliability and life of the machine.
  • Page 6 2.2 Basic operation and designated use of the machine The machine has been built in accordance with state-of-the-art standards and the rec og nized safety rules. Nevertheless, its use may constitute a risk to life and limb of the user or of third parties, or cause damage to the machine and to other material property.
  • Page 7 For the execution of maintenance work, tools and workshop equipment adapted to the task on hand are absolutely indispensable. The personnel must be familiar with the location and operation of fi re ex tin guish ers. Observe all fi re-warning and fi re-fi ghting procedures. 2.4 Selection and qualifi...
  • Page 8 In any work concerning the operation, conversion or adjustment of the machine and its safety-oriented devices or any work related to maintenance, inspection and repair, always observe the start-up and shut- down procedures set out in the operating instructions and the information on maintenance work. Ensure that the maintenance area is adequately secured.

  • Page 9: Description

    Hydraulic and pneumatic equipment Work on hydraulic equipment may be carried out only by persons having special knowledge and expe- rience in hydraulic systems. Check all lines, hoses and screwed connections regularly for leaks and obvious damage. Repair damage immediately. Splashed oil may cause injury and fi re. Depressurize all system sections and pressure pipes (hydraulic system, com pressed-air system) to be removed in accordance with the specifi...
  • Page 10 Information: Unconditional observe the owner’s manual of the engine manuf- acturer, which is added! 3.2 Chief constituent 1. Frame 2. Engine 3. Push bow 4. Water tank 30 l 5. Blade guard 6. Cutting depth indicator 7. V-belt guard 8. Pointer unit 3.3 Safety devices Danger: During cutting or displacing the fl...
  • Page 11 3.4 Technical data...

  • Page 13: Transport

    4. Transport Injury hazard: Injury hazard: Down Injury hazard: Down coming parts! Sharp edges! coming parts! It is not allowed to move the machine with rotating blade outside of the area in which cutting works have to be performed! 4.1 Preparation Before trans port ing dismount the blade and low er the fl...

  • Page 14: Operating Elements

    Danger: Never touch rotating parts like blade shaft or blade while opera- ting! Danger: Rotating parts may pull in clothing! Wear tightly cloth ing! Danger: Down coming parts can cause injuries to the op er a tor! Operating elements "0"-position Main switch 1.

  • Page 15: Mounting The Blade

    Danger: Wrong rotation of the blade may result in segment damage or loss and can cause injuries to the operator or other persons! Check the blade is well fastened before beginning to operate. Use only blades suitable to the blade acceptance (arbor hole, fl anges). Use only blade suitable to the material to be cut.

  • Page 16: Water Supply

    fl oor saw. Check the ball valve is closed (ball valve lever in 90°-position to the water fl ow). For cutting open the ball valve (ball valve lever in the water fl ow position) and the valve of the water tank (3). Cutting operation FS 130 B/FS 130 D/FS 170 S/FS 170 SD 1. Foot pedal - rising and low er ing-...

  • Page 17: Maintenance

    Danger: Operating with too high feed the fl oor saw might rise out of cut! In emergency situations cut off the engine as described in the engines manu- Completely rise the fl oor saw (blade may have no ground contact). Start the engine as described in the engi- nes manual.
  • Page 18 Information: Clean the fl oor saw after eve ry op er a tion. Ob serve local environ- mental regulations! Attention: When handling oil, grease and other chemical sub stanc es, observe the product-related safe ty regulations! For maintenance jobs the fl oor saw has to be shut down. For maintenance jobs which must be done while the fl...

  • Page 19: Troubleshooting

    7. Troubleshooting Attention: In the event of changes in the behaviour of the fl oor saw during operation, stop the machine immediately and report the mal func tion to the competent authority/person! PROBLEM CAUSE REMEDY Electric motor Mains plug not connected check connection Motor does not work! Fuse of power distribution...
  • Page 20 PROBLEM CAUSE REMEDY Cutting Dull diamond blade Sharpen or use softer diamond blade Floor saw rises out of cut! Faulty gas pressure spring Replace Feed too high Reduce feed Damaged centering of Replace blade shaft the blade shaft Non circular abrasion of the diamond blade! Warped blade shaft Replace...

  • Page 21: Safety Checks On Electrical Systems

    8. Safety checks on electrical systems 8.1 Safety checks on electrical systems according to BGV A2, imple- mentation instruction clause 1 No.2 Attention: Let any eventual repairs at the electric drive carried out by an electrician (specialist, specialised work shop) or by Gölz GmbH! 8.1.1 Repetitive checks on stationary electrical systems and operating equipment System/operating equipment Inspection...
  • Page 22 Wearing parts for contruction devices mentioned in the operating manual such as drilling and sawing machines Wearing parts are the parts subject to operation-related (natural) wear during pro per use of the device. The wearing time cannot be uniformly defi ned, and differs according to the intensity of use.

  • Page 23: Spare Parts List

    9. Spare parts list Always indicate: machine/model/serial number item number and description of the spare part amount of spare parts desired full address goods to be sent by regular mail, express, etc. Key to symbols Légende Zeichenerklärung = consisting of pos. = se composant des pos.
  • Page 24 Pos. Type(*) Qty. Bezeichnung - Part name - Désignation FS170 S 1720001/ FS130 B 1320001 0282 130 0554 Grundgestell - Frame - Embase 0282 130 0568 Aufnahmeplatte - 0282 130 0551 Abdeckung Keilriemenscheibe - V-belt pulley guard - Capot de protection de poulie pour courroies 0282 250 0105 Scheibe - Washer - Rondelle - B13 DIN 125 0285 300 0015...
  • Page 25 Aussenfl ansch - Outer fl ange - Flasque extérieure - FS 130 0282 170 0236 Aussenfl ansch - Outer fl ange - Flasque extérieure - FS 170 0282 130 0014 Schneidwelle mit Flansch - Blade shaft with fl ange - Arbre de coupe avec fl...
  • Page 26 Ersatzteile für Maschinen älterer Bauart - Spare parts for previous models - Pièces de rechange pour machines d´ancienne construction Pos. Type(*) Qty. Bezeichnung - Part name - Désignation 0282 130 0547 Grundgestell - Frame - Embase 0295 000 3506 Schraube - Screw - Vis - M8x25 DIN 7380 0282 130 0501 Abdeckung Keilriemenscheibe - V-belt pulley guard - Capot de protection de poulie pour courroies...
  • Page 27 Aussenfl ansch - Outer fl ange - Flasque extérieure - FS 130 0282 170 0202 Aussenfl ansch - Outer fl ange - Flasque extérieure - FS 170 0282 130 0014 Schneidwelle mit Flansch - Blade shaft with fl ange - Arbre de coupe avec fl...
  • Page 29 Pos. Type(*) Qty. Bezeichnung - Part name - Désignation 0282 130 0557 Fahrwerk - Undercarriage - Châsis 0282 250 0074 Mutter - Nut - Ecrou - M14 DIN 982 0295 120 0028 Hutmutter - M12 DIN 917 0282 130 0564 Gewindestange - thread rod - Tige fi...
  • Page 30 Ersatzteile für Maschinen älterer Bauart - Spare parts for previous models - Pièces de rechange pour machines d´ancienne construction...
  • Page 31 Pos. Type(*) Qty. Bezeichnung - Part name - Désignation 0282 130 0016 Fahrwerk - Undercarriage - Châsis 0282 130 0037 Bolzen - Bolt - Axe - D8x128 0282 130 0038 Schnell be festiger - Quick fi xing device - Dispositif d'assemblage rapide - D8 0284 650 0046 Splint - Split pin - Goupille - 4x25 DIN 94...
  • Page 32 Ersatzteile für Maschinen älterer Bauart - Spare parts for previous models - Pièces de rechange pour machines d´ancienne construction...
  • Page 33 Pos. Type(*) Qty. Bezeichnung - Part name - Désignation 0282 130 0070 Wassertank - Water tank - Réservoir d'eau - 16 l Pos.1-6, 9-12 0282 130 0528 Wassertank - Water tank - Réservoir d'eau - 30 l - Pos.1-12 0282 140 0073 Wassertank ohne Deckel - Water tank without cap - Réservoir d'eau sans couvercle 0282 130 100...
  • Page 34 Elektromotor - Electric motor - Moteur électrique Pos. Type(*) Qty. Bezeichnung - Part name - Désignation 0282 130 0980 Elektromotor - Electric motor - Moteur électrique - 5,5 kW 0282 150 0055 Schraube - Screw - Vis - M10x45 DIN 933 0295 000 0216 Scheibe - Washer - Rondelle - A10,5 DIN 7349 0286 570 0052...
  • Page 35 Pos. Type(*) Qty. Bezeichnung - Part name - Désignation 0295 000 0325 Schraube - Screw - Vis - M10x65 DIN 931 0286 570 0047 Scheibe - Washer - Rondelle - B10,5 DIN 125 0286 570 0069 Scheibe - Washer - Rondelle - B6,4 DIN 125 0281 045 0027 Mutter - Nut - Ecrou - M6 DIN 982 0267 112 5047...
  • Page 36 0282 130 0076 Motor - Engine - Moteur - YANMAR L90AE - FS 130 D 0282 170 0076 Motor - Engine - Moteur - YANMAR L100AE - FS 170 SD 0282 130 0520 Buchse - Bushing - Douille 0282 130 0503...
  • Page 37 Satz Keilriemen - Set of V-belts - Jeu de courroies - 3x XPZ-812LW - FS 130 D 0282 120 0097 Keilriemen - V-belt - Courroies - XPZ-850LW - FS 170 SD 0282 170 0235 Scheibe - Washer - Rondelle 0295 000 0329...
  • Page 38 Benzinmotor - Gas engine - Moteur HONDA...
  • Page 39 0282 130 0960 Motor - Engine - Moteur - ROBIN EX270D - FS 130 B 0282 170 0950 Motor - Engine - Moteur - HONDA GX390K1 - FS 170 S 0282 130 0520 Buchse - Bushing - Douille 0295 000 0216...
  • Page 40 0282 130 0960 Motor - Engine - Moteur - ROBIN EX270D - FS 130 B 0282 170 0950 Motor - Engine - Moteur - HONDA GX390K1 - FS 170 S 0282 130 0520 Buchse - Bushing - Douille 0282 130 0502 Transportbügel - Lifting eye - Anneau de levage...
  • Page 41 0282 065 0016 Keilriemen - V-belts - Courroies - XPZ-737LW - FS 130 B 0282 170 0232 Keilriemen - V-belts - Courroies - XPZ-787LW - FS 170 S 0282 170 0209 Keilriemenscheibe - V-belt pulley - Poulie pour courroies -...
  • Page 42 Benzinmotor - Gas engine - Moteur HONDA GX270SX Pos. Type(*) Bezeichnung - Part name - Désignation 98079-56841 Zündkerze - Spark plug - Bougie - NGK BP6ES "RP" 98079-56846 Zündkerze - Spark plug - Bougie - NGK BPR6ES "RP" 18331-ZE3-810 Kappe Aus puff topf - Exhauster cap - Cache/pot d'échappement - GX 340 SX 0282 140 0067 Schraube Topf be fe sti gung - Exhauster cap fastening screw -...
