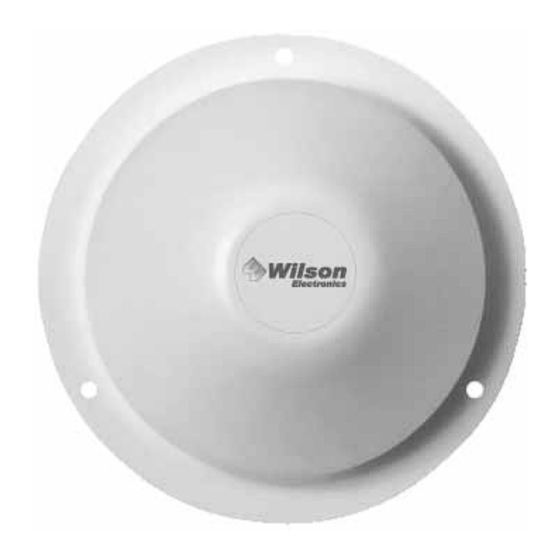

Dual-Polarity Dome Antenna
This package contains: Dual-Polarity Dome Antenna, antenna installation
kit, template with instructions for installing on the ceiling and for installing
on the wall. See reverse side for installation template.
E-mail tech@wilsonelectronics.com
Visit www.wilsonelectronics.com
Part Number
Frequency Range
Gain
Beamwidth Horizontal Plane
Beamwidth Vertical Plane
Polarization
Impedance
VSWR
Connector
Diameter
Weight
3301 East Deseret Drive, St. George, Utah 84790
Part# 301123
TECHNICAL SUPPORT
Call Toll-Free 866-294-1660
Specifi cations
Horizontal and Vertical
7.72 (inch) / 19.6 (cm)
0.69 lbs / 0.31 kg
Wilson
Electronics, Inc.
For additional technical support visit
www.wilsonelectronics.com
Phone: 866-294-1660
301123
800~900 MHz
5.2 dBi
360°
150°
50 ohms
1.5 : 1
N-Female
®
