Summary of Contents for Wilson Electronics WILSON PRO 311228

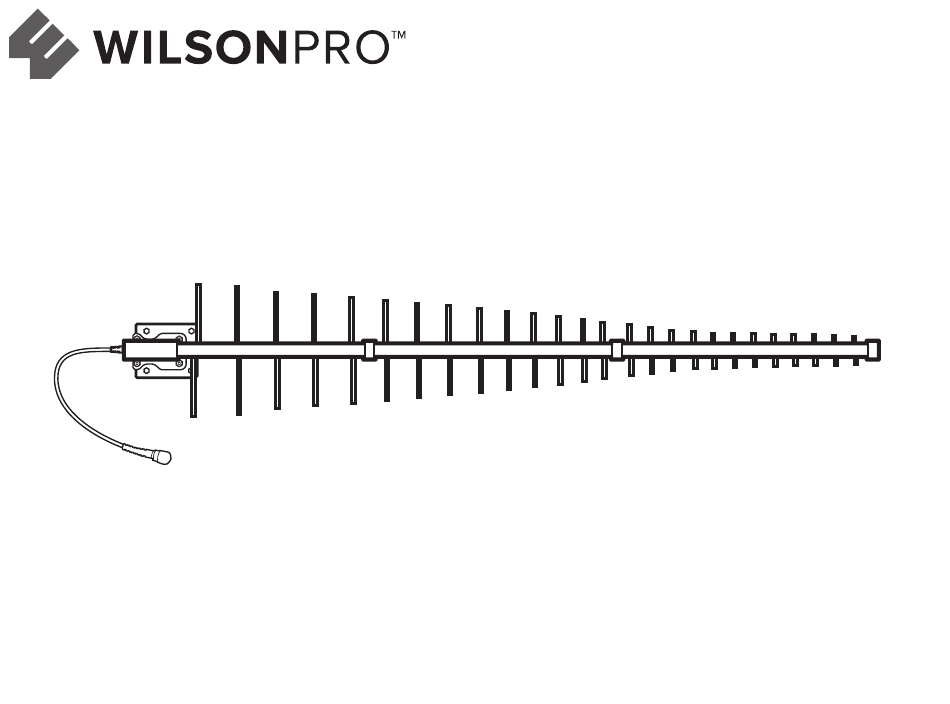

- Page 1 Installation Guide A Wilson Electronics Brand High Gain LPDA Antenna...
-
Page 2: Table Of Contents
Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Mounting The Antenna . -
Page 3: Package Contents
Package Contents High Gain U-Bolts LPDA Antenna (311228) -
Page 4: Mounting The Antenna
Mounting the Antenna Pole mount included. Pole mounting is preferred because it will be easier to adjust to the direction of the cell tower . Use the U-Bolts to attach the Antenna to a pole or exhaust pipe . Note: After mounting the antenna, fix any lose cable to the pole to avoid strain on the cable . -
Page 5: Point The Antenna Toward Desired Cell Phone Tower
Point the Antenna Toward Desired Cell Phone Tower To determine tower location use signal meter . This is important to the installation process because it will determine the overall performance of the booster system . Cell Tower... -
Page 6: Safety Guidelines & Specifications
Safety Guidelines & Specifications RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons . AWS Warning: The Outside Antenna must be installed no higher than 32 feet 9 inches (10 meters) above ground . Electrical Specifications Frequency Band (MHz) 698-806... -
Page 7: Warranty
Returned Material Authorization (RMA) number supplied by Wilson Electronics . Wilson Electronics shall, at its option, either repair or replace the product . Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S . - Page 8 866 .294 . 1 660 www .wilsonelectronics .com support@weboost .com Copyright © 2019 Wilson Electronics . All rights reserved . Wilson Electronics products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents GDE000258_Rev02_02 . 1 1 .20...
