Summary of Contents for Wilson Electronics 301111

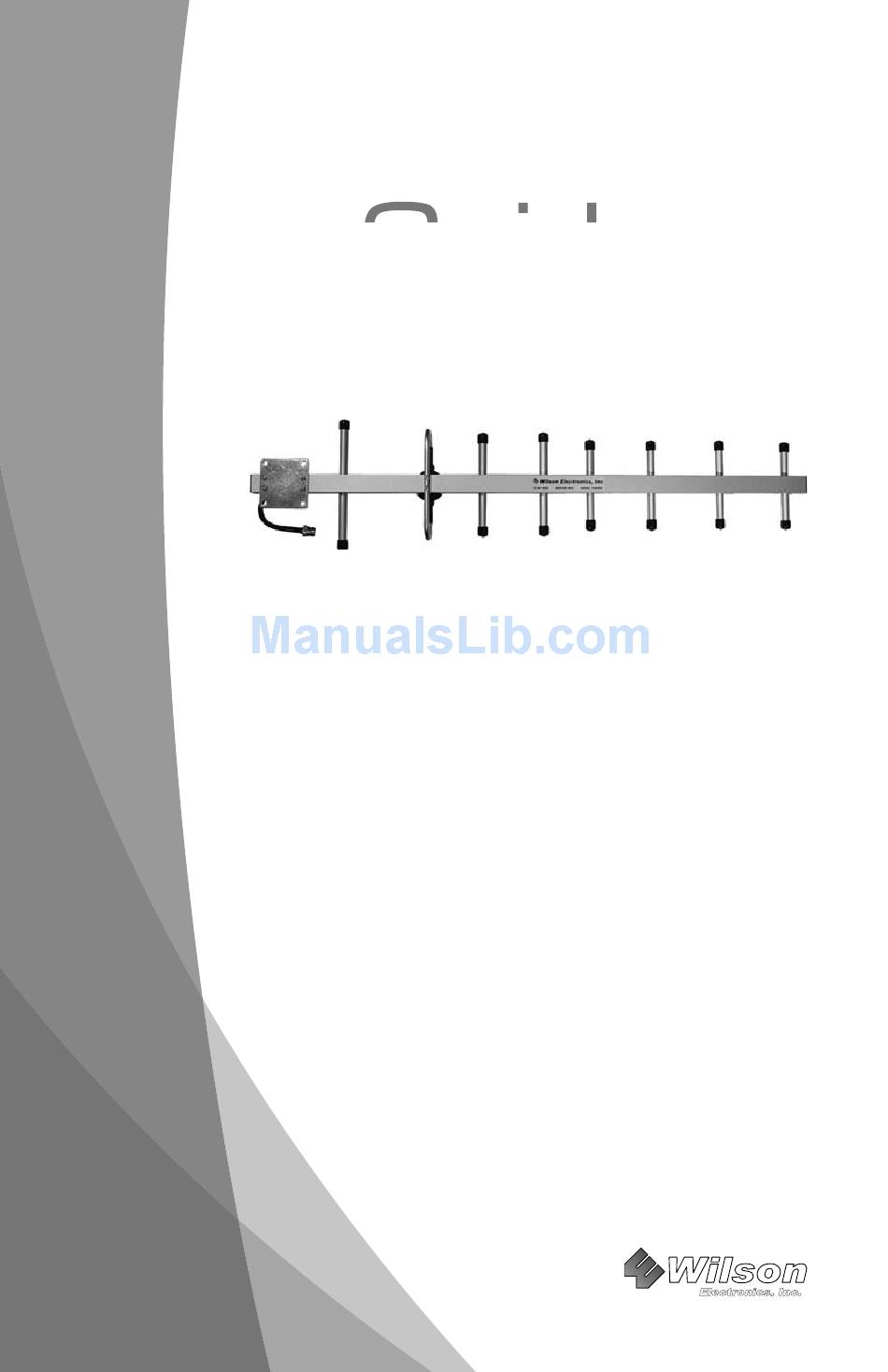

- Page 1 Antenna Antenna Installation stallatio stallat Guide 13 dB 800 MHz Yagi Cellular Antenna PART# 301111 Features: • High-gain • Directional • Single-band (800 MHz) • Pipe mounting hardware included • Easy to install Wilson ® Electronics, Inc.
- Page 2 Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer.
- Page 3 Package Contents Wilson Yagi (#301111) contents include (A) Yagi antenna with N-Female End Connector, (B) 2 - U-Bolts, (C) 2 - Pipe Brackets, (D) 4 - 1/4” Split-Lock Washers, (E) 4 - 1/4”-20 nuts. Cell Tower Antenna Installation The Yagi antenna should be mounted horizontally with the elements vertical. The included mounting bracket is adjustable and will accommodate pipe diameters from ½”...
- Page 4 To fi nd the adapter for your phone, visit www.wilsonelectronics.com or call toll free 866-294-1660. Antenna Specifi cations Part Number 301111 Number of Elements Frequency Range 806-900 MHz Impedance...
