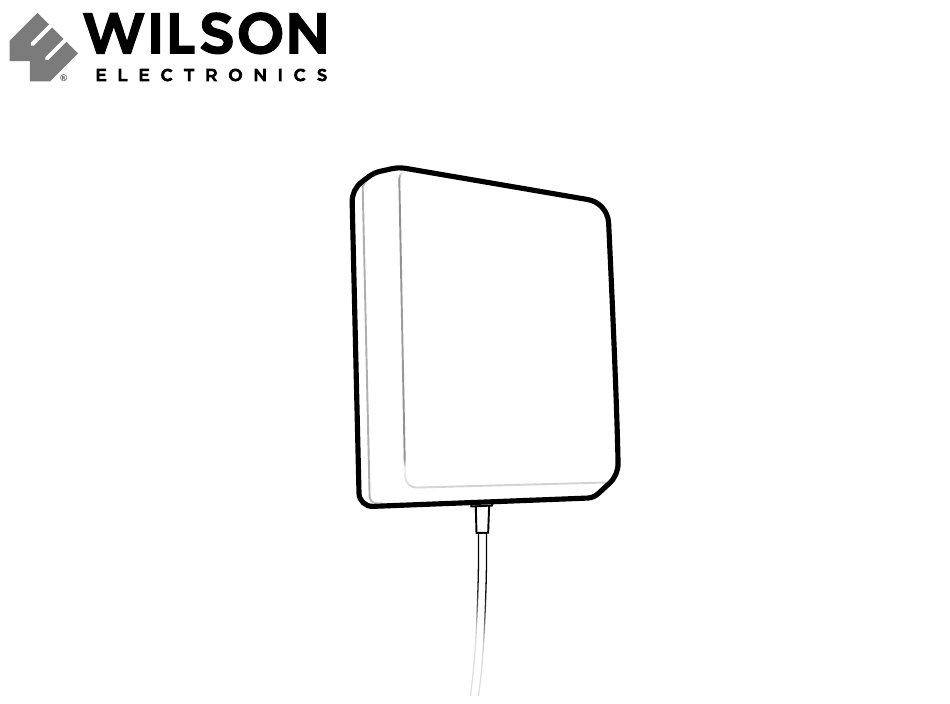

- Page 1 Installation Guide Indoor Wall Mount Antenna 50 Ohm 600 MHz - 4000 MHz...
-
Page 2: Table Of Contents
Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Placement . -
Page 3: Package Contents

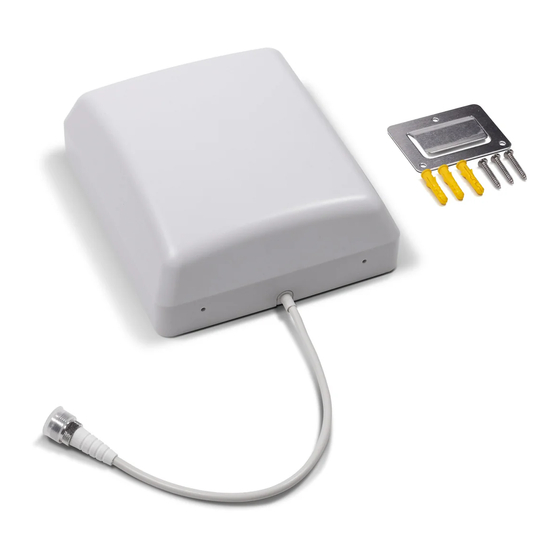

Package Contents Indoor Wall Mount Wall Mount & Antenna 50 Ohm Hardware (311243) -
Page 4: Placement
Placement Place Indoor Antenna in weak signal area at least 24 in . away from signal booster . Indoor Antenna weak signal area... -
Page 5: Mounting The Antenna
Mounting the Antenna Secure Wall Mount Bracket to wall (hardware provided) and slide Indoor Antenna into place . Connect Indoor Antenna cable to cable from signal booster . Indoor Antenna bracket slides onto Wall Mount Bracket Wall Mount Bracket wall anchor Wall Mount Bracket... -
Page 6: Safety Guidelines & Specifications
Front-to-Back Ratio (dB) <15 <8 <11 Impedance (Ω) Maximum Power (W) Mechanical Specifications Model 311243 Connector N-Female Dimensions (in / mm) 7 .0x6 .2x2 .3 / 177 .8x157 .48x58 .42 Weight (lb / kg) .88 / .4 Radiator Material... -
Page 7: Warranty
Returned Material Authorization (RMA) number supplied by Wilson Electronics . Wilson Electronics shall, at its option, either repair or replace the product . Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S . - Page 8 866 .294 . 1 660 www .wilsonelectronics .com support@wilsonelectronics .com Copyright © 2019 Wilson Electronics . All rights reserved . Wilson Electronics products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents GDE000502_Rev01_05 .31 .22...
