Summary of Contents for Wilson Electronics 311229

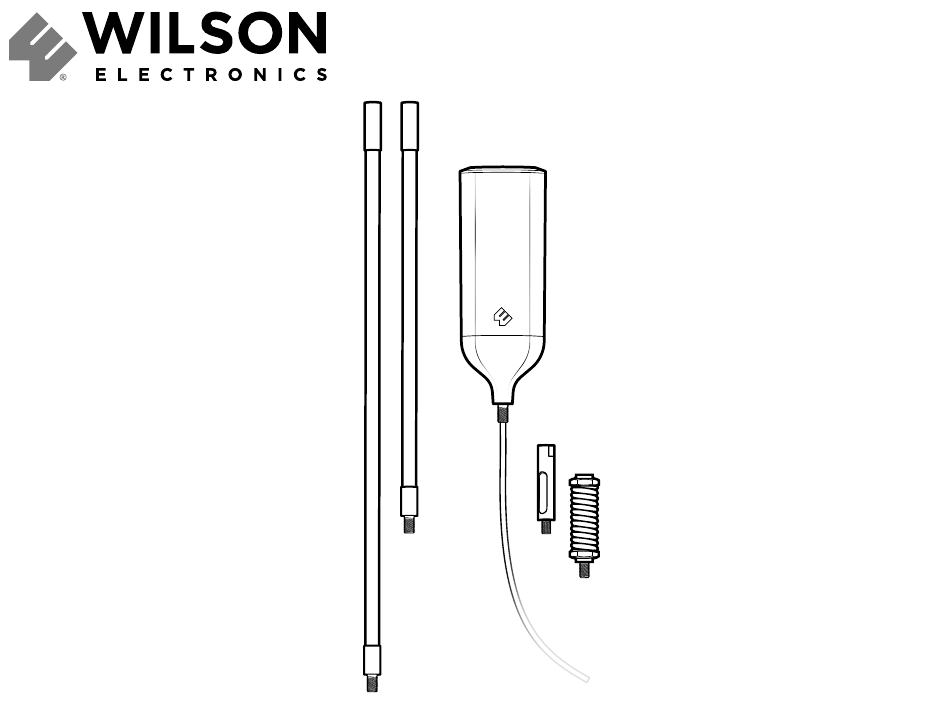

- Page 1 Installation Guide Drive OTR Antenna...
-
Page 2: Table Of Contents
Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Select Mounting Location &... -
Page 3: Package Contents
Package Contents 13 in . & 18 in . Spring, Side Exit Thread Lock Drive OTR Antenna Mast Extensions Adapter & 3-Way w/16 ft . Cable Mount (311229) -
Page 4: Select Mounting Location & Assemble The Antenna
Select Mounting Location & Assemble the Antenna antenna Once you have determined the best location for the antenna, insert cable through mast(s) then through Side 13 in. 13 in. 13 in. Exit Adapter . mast mast mast run cable cable from through Mast antenna Extension(s) - Page 5 (Assemble the Antenna cont .) Use thread locker (provided) to thread Drive OTR Antenna points and screw into place . NOTE: Be sure the antenna is the correct height before applying thread locker . NOTE: When adding the side exit adapter hold the antenna vertically and screw the adapter from the bottom up .
-
Page 6: Mounting The Antenna
Mounting the Antenna Mast Extension If the vehicle does not have built-in mounting points, a three-way mount is included that will work on vehicles with mirror rails . NOTE: The cable is strong enough that Side Exit Adapter it may be shut in most vehicle doors without damaging the cable . -
Page 7: Mounting The Antenna With Spring
Mounting the Antenna with Mast Extension Spring Side Exit Adapter If installing with the Spring, disassemble the 3-Way Mount and use disc washer add thread and nut (provided) to mount the antenna locker with Spring as shown . Spring Remove nut & shake proof washer add thread locker... -
Page 8: Safety Guidelines & Specifications
Half-Power Azimuth Beamwidth (°) Half-Power Elevation Beamwidth (°) Impedance (Ω) Maximum Power (W) Mechanical Specifications Model 311229 Connector SMA (F) Dimensions (in / mm) 7 .422 x 2 .688 / 188 x 68 Weight (lb. / kg) . 7 5 / .340... -
Page 9: Warranty
Returned Material Authorization (RMA) number supplied by Wilson Electronics . Wilson Electronics shall, at its option, either repair or replace the product . Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S . - Page 10 Notes 1 .866 .294 . 1 660 www .wilsonelectronics.com support@wilsonelectronics .com...
- Page 11 Notes 1 .866 .294 . 1 660 www .wilsonelectronics.com support@wilsonelectronics .com...
- Page 12 866 .294 . 1 660 www .wilsonelectronics .com support@wilsonelectronics .com Copyright © 2020 Wilson Electronics . All rights reserved . Wilson Electronics products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents GDE000299_Rev01_08 . 1 0 .20...
