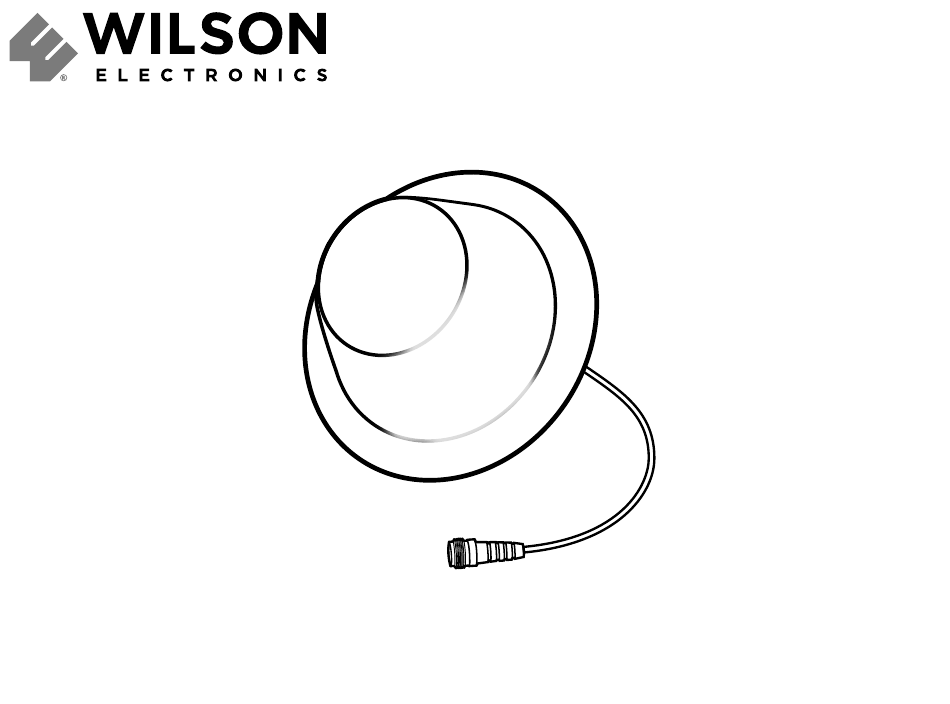

- Page 1 Installation Guide Ceiling Mount Dome Antenna 50 Ohm 600 MHz - 4000 MHz...
-
Page 2: Table Of Contents
Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Placement . -
Page 3: Package Contents
Package Contents Ceiling Mount Dome Antenna 50 Ohm (311242) -
Page 4: Placement
Placement Select a weak signal area for mounting the indoor antenna which will be at least 24 in . away from signal booster . 50 Ohm Indoor Dome Antenna weak signal area... -
Page 5: Mounting The Antenna
Mounting the Antenna Drill a 3/4 inch hole in ceiling drywall where indoor dome antenna will be mounted . Feed the antenna cable through the drilled hole into attic space and connect to cable from booster . Tighten plastic nut to threads on indoor dome antenna until snug . attic space from booster plastic nut... -
Page 6: Safety Guidelines & Specifications
Vertical Half-Power Azimuth Beamwidth (°) Half-Power Elevation Beamwidth (°) Impedance (Ω) Max Power (W) Mechanical Specifications Model 311242 Connector N-Female Dimensions (in / mm) 7 .3x3 .32 / 185 .42x 84 .33 Weight (lb / kg) .55 / .4... -
Page 7: Warranty
Returned Material Authorization (RMA) number supplied by Wilson Electronics . Wilson Electronics shall, at its option, either repair or replace the product . Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S . - Page 8 866 .294 . 1 660 www .wilsonelectronics .com support@wilsonelectronics .com Copyright © 2019 Wilson Electronics . All rights reserved . Wilson Electronics products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents GDE000501_Rev01_0602 .22...
