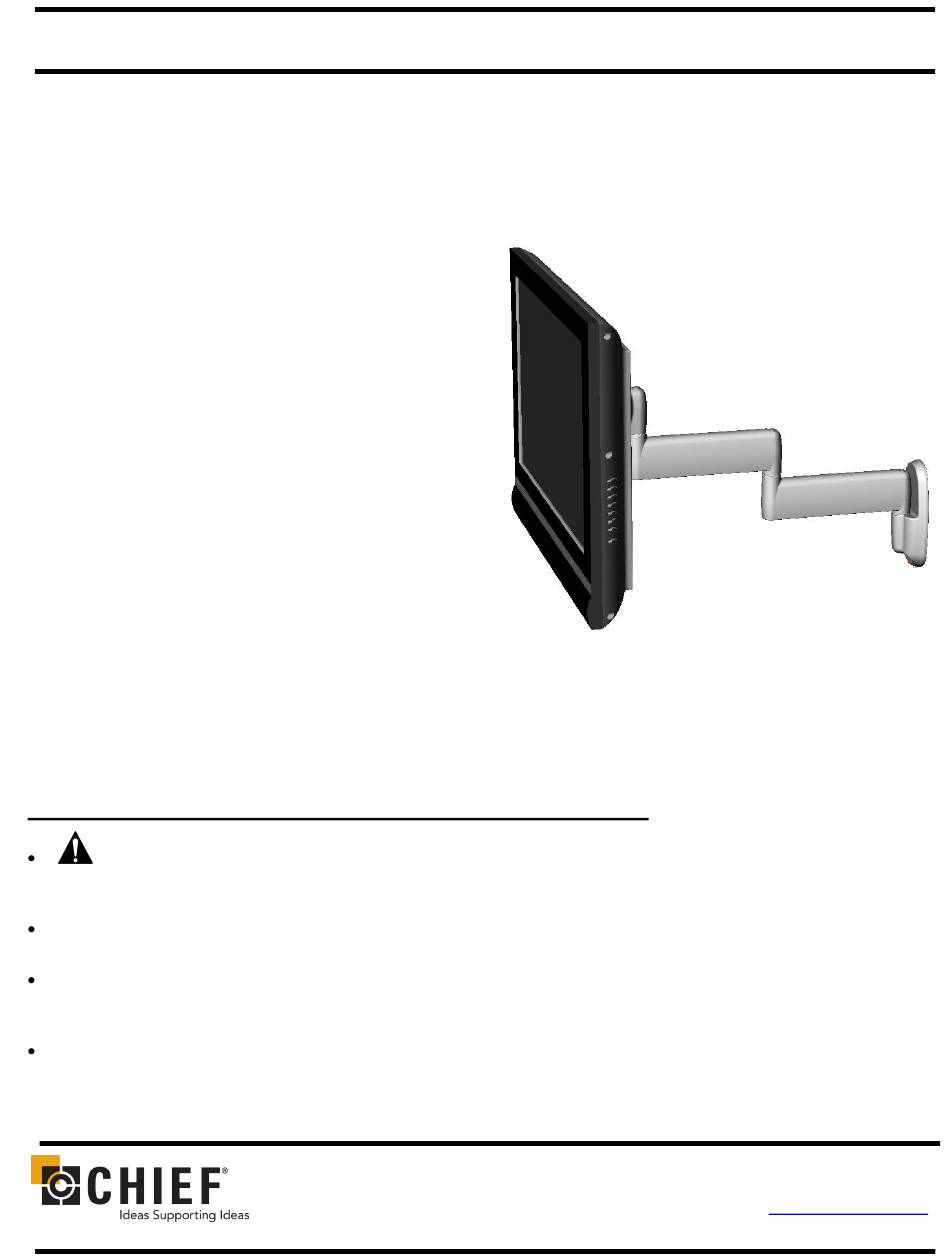

I N S T A L L A T I O N
Medium Flat Panel
Dual Swing Arm Wall Mount

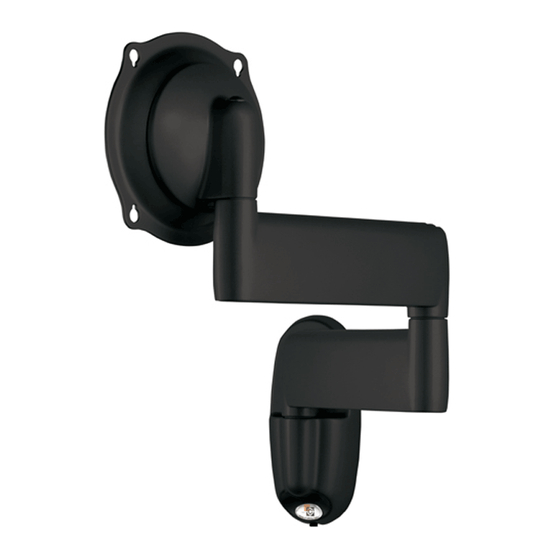

JWD-V
The JWD-V single swing arm wall mount is designed for
mounting a medium sized flat panel display. The JWD-V
can swing out from, or fold against, the wall depending
on your ergonomic need. The mount can be tilted up and
down to 15° of center.
The JWD-V is shipped with the VESA
Centris™ interface which is compatible with most
medium flat panels.
To accommodate other mounting patterns in displays,
the JWD-V comes with an interface bracket that
accommodates a number of other VESA mounting
patterns.
By design, the JWD-V can be configured to fit your
medium flat panel display, providing that your display
does not exceed the specified weight rating.

BEFORE YOU BEGIN

CAUTION:
To prevent damage to your display and/or the JWD-V, which could affect or void factory
warranty, thoroughly study all instructions and illustrations before you begin to install the mount. Pay
particular attention to the Warnings and Cautions in this document.
Refer to the "WEIGHT SPECIFICATION" section page 5 for the maximum weight allowable for use with the
JWD-V wall mount.
The JWD-V wall mount is designed to be installed using wall studs or supporting framework. The structure to which
the JWD-V wall mount is anchored must be capable of supporting five times the total weight of the mount and all
attached equipment.
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
®
100mm/100mm
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
JWD-V
8832-000130 Rev B
©2006 Chief Manufacturing
www.chiefmfg.com
12/06
