Digital Temperature & Analog Sensor (TMP-DTA-SEN)
AVTECH's Digital Temperature & Analog Sensor monitors ambient indoor temperature and a
connected 0 to 5 VDC analog sensor in real time. By connecting an external analog sensor, such
as AVTECH's Current Loop, you may track the efficiency of, for example, an air conditioner:
the Digital Temperature & Analog Sensor will provide readings for the temperature produced
and electricity consumed by your cooling system, allowing you to make informed decisions
faster about the status or efficiency of the condition being monitored.
This compact, light-weight sensor has operating ranges of -40º to 185º Fahrenheit (-40º to 85º
Celsius) and 0 to 5 VDC; it maintains accuracy within +/- 0.125 degrees and +/- 0.05 volts.
Digital Temperature & Analog Sensor Package Contents
• One (1) Digital Temperature & Analog Sensor
• One (1) 25' RJ-11 cable
• One (1) Installation Note (You're reading it now.)

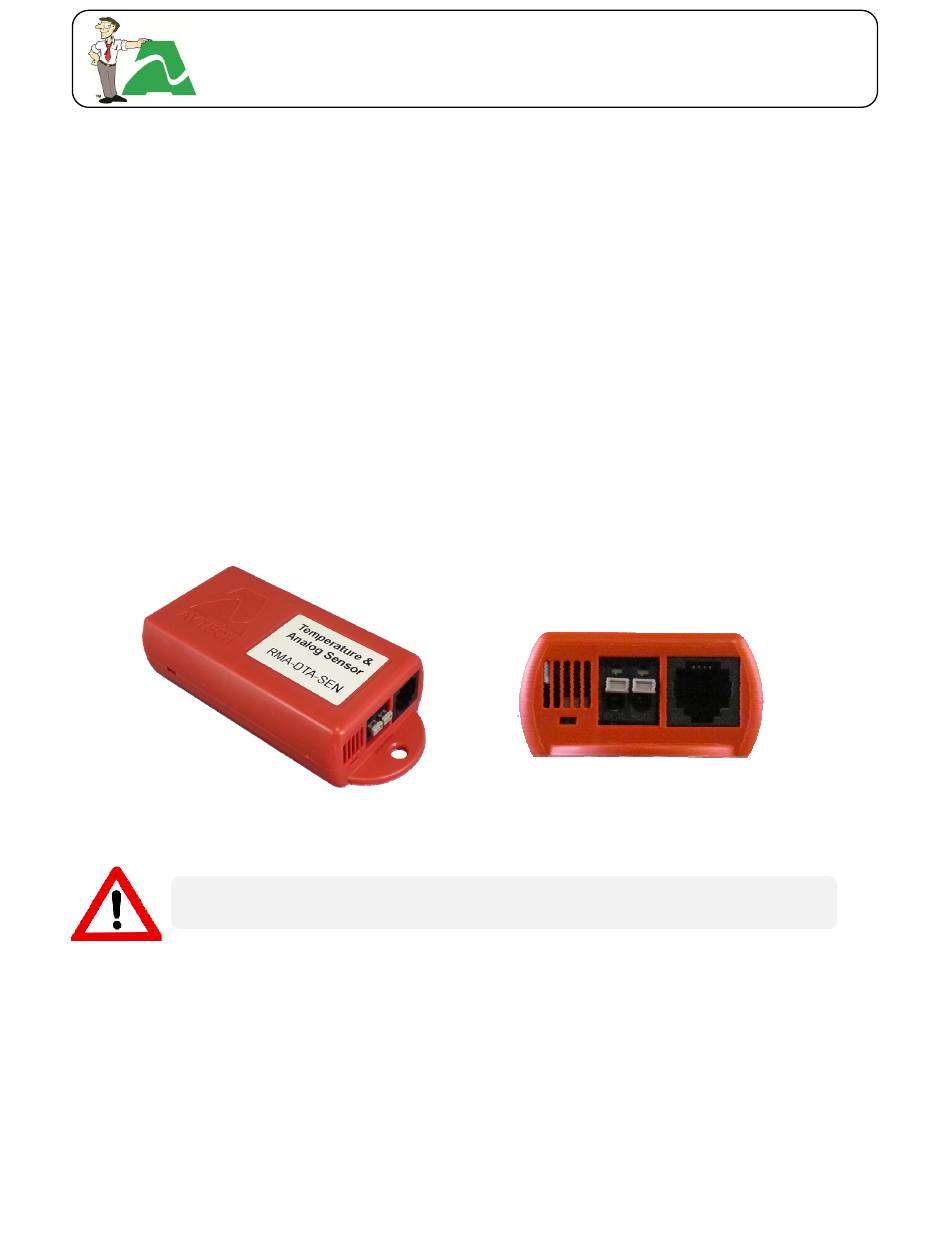

Digital Temperature & Analog Sensor ID Box
Install Your Digital Temperature & Analog Sensor
Do not use this sensor in hazardous (classified) locations or life safety applications.
Step 1: Mount your Digital Temperature & Analog Sensor
Locate the sensor where you wish to measure temperature. You may hang it from a nail,
screw or hook through the flange hole, secure it with Velcro or simply place it on a flat
surface.
Step 2: Connect your Digital Temperature & Analog Sensor to a Room Alert monitor.
Your Digital Temperature & Analog Sensor comes with a 25' RJ-11 cable.
AVTECH Software, Inc.
Temperature & Environment Monitoring... Made Easy!
Installation Note
Analog
Digital
Input
Port
Port
Front
AVTECH.com
