AVTECH

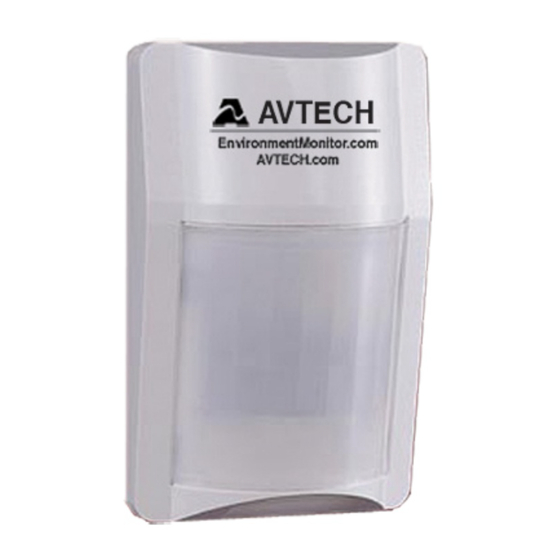

AVTECH's Motion Sensor monitors computer rooms, telecom closets and
other indoor locations for human movement; this passive infrared sensor
covers an 84º angle (approximately 48' at its widest point) and detects
motion up to 36' away.
Motion Sensor Package Contents
•
One (1) Motion Sensor
•
One (1) 25' speaker cable
•
One (1) 12V power adapter
Motion Sensor
Alarm LED
The red alarm LED blinks for approximately a minute after it is first plugged in to power
while the unit is warming up.
It illuminates for approximately 2 seconds when the sensor detects motion.
Install Your Motion Sensor
Do not use this sensor in hazardous (classified) locations or life safety applications.
Step 1: Mount your Motion Sensor.
Mount your Motion Sensor so that people cross the protection zone rather than approach
the sensor head-on.
Motion Sensor
Cover
Lens
Alarm
LED
Cover
Lock
Screw
Temperature & Environment Monitoring... Made Easy!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Avtech RMA-MOT2-SEN
Summary of Contents for Avtech RMA-MOT2-SEN
- Page 1 AVTECH Motion Sensor AVTECH’s Motion Sensor monitors computer rooms, telecom closets and other indoor locations for human movement; this passive infrared sensor covers an 84º angle (approximately 48' at its widest point) and detects motion up to 36' away. Motion Sensor Package Contents •...
- Page 2 4. Re-attach the cover and screw the cover lock screw back in. Step 2: Connect your Motion Sensor to Room Alert. Do not connect the switch sensor inputs (dry contacts) on AVTECH products to any live circuit. Use only low-voltage 2-wire cable to connect switch sensor inputs.
- Page 3 Motion Sensor (RMA-MOT2-SEN) Step 3: Connect your Motion Sensor to a power source. Your Motion Sensor comes with an 12V power adapter already attached. Plug the adapter into a power source. Notice that the alarm LED blinks for approximately one minute while the Motion Sensor warms up.
- Page 4 Configure Your Switch Sensor Configure Your Switch Sensor Use Room Alert’s Built-In Web Interface Settings Sensors Navigate to in your Room Alert web interface. The options you see below will vary depending on your Room Alert model. 1. Scroll down to Switch Sensor Settings. 2.
