Avtech RMA-DAP-SEN Installation Note

AVTECH

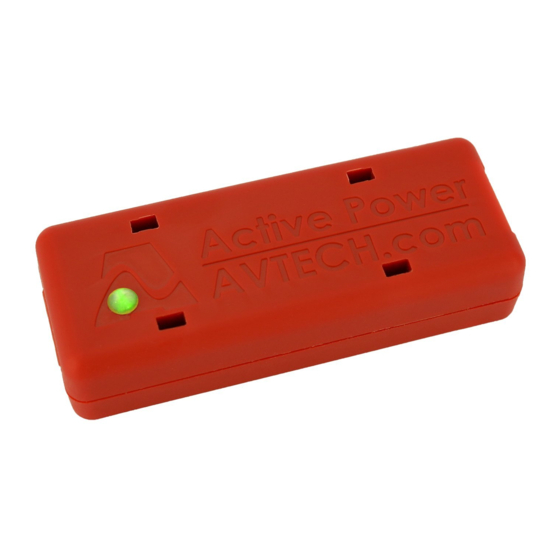

AVTECH's Digital Active Power Sensor monitors
active power status and ambient room temperatures.
Simply strap the sensor to the AC electrical cord of any
device that draws more than 100 W. There's no need
to unplug the device, modify the cord, or require an
electrician to connect within a main panel, making it
easier than ever to monitor any electric device. When
the connected device draws more than 100 W, the
sensor will detect power and show the current power
status as "Active." With an operating range of -40° to
185° Fahrenheit (-40° to 85° Celsius), this "Plug and
Play" sensor additionally provides temperature values
accurate to +/- 2° C to your Room Alert.
Digital Active Power Sensor Package Contents
• One (1) Digital Active Power Sensor
• One (1) 10' mini-USB to RJ-11 cable
• Four (4) 4" L x .1" W zip ties
• Two (2) Velcro cable ties
Digital Active Power Sensor
Status
LED
Zip Tie
Holes
Digital Temperature & Active Power Sensor Features
Status LED
The Status LED on the front shows you the sensor's power status:
This LED Color...
Solid green
Solid red
Unlit
AVTECH Software, Inc.
Digital Active Power Sensor
Mini-USB
Port
Top Front
Means...
Power is detected on your power cord
Power is NOT detected on your power cord
The sensor itself is unpowered (not plugged in to the Room Alert)
Temperature & Environment Monitoring... Made Easy!
Power Cord
Channel
Zip Tie
Holes
Bottom
AVTECH.com
