Avtech RMA-F008-SEN Installation Note

AVTECH

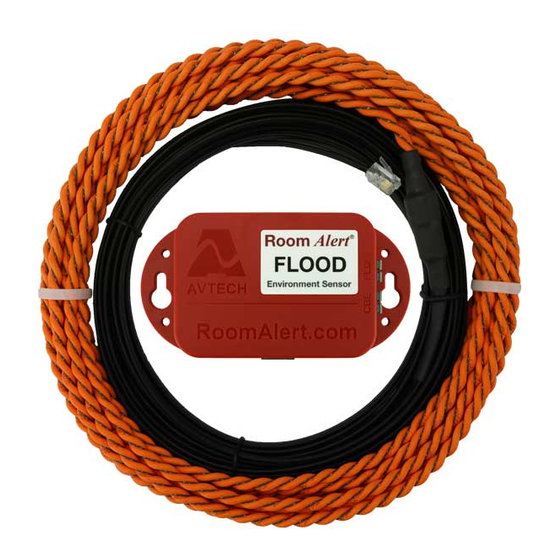

AVTECH's Flood Sensor - Cable detects liquid when
it bridges any pair of conductive threads twisted
along the length of the patented orange cable.
The cable's design allows you to position it in a
variety of ways to detect water where it runs or
settles, such as on the floor around valuable IT
equipment; around a pipe that water runs down;
or on a tray in a drop-ceiling beneath a dripping air
conditioner.
Flood Sensor - Cable Package Contents
• One (1) Flood Sensor box
• One (1) Flood Cable w/ 25' RJ-11 leader
• One (1) 25' speaker wire
• One (1) AVTECH 5V power adapter
• Two (2) mounting screws

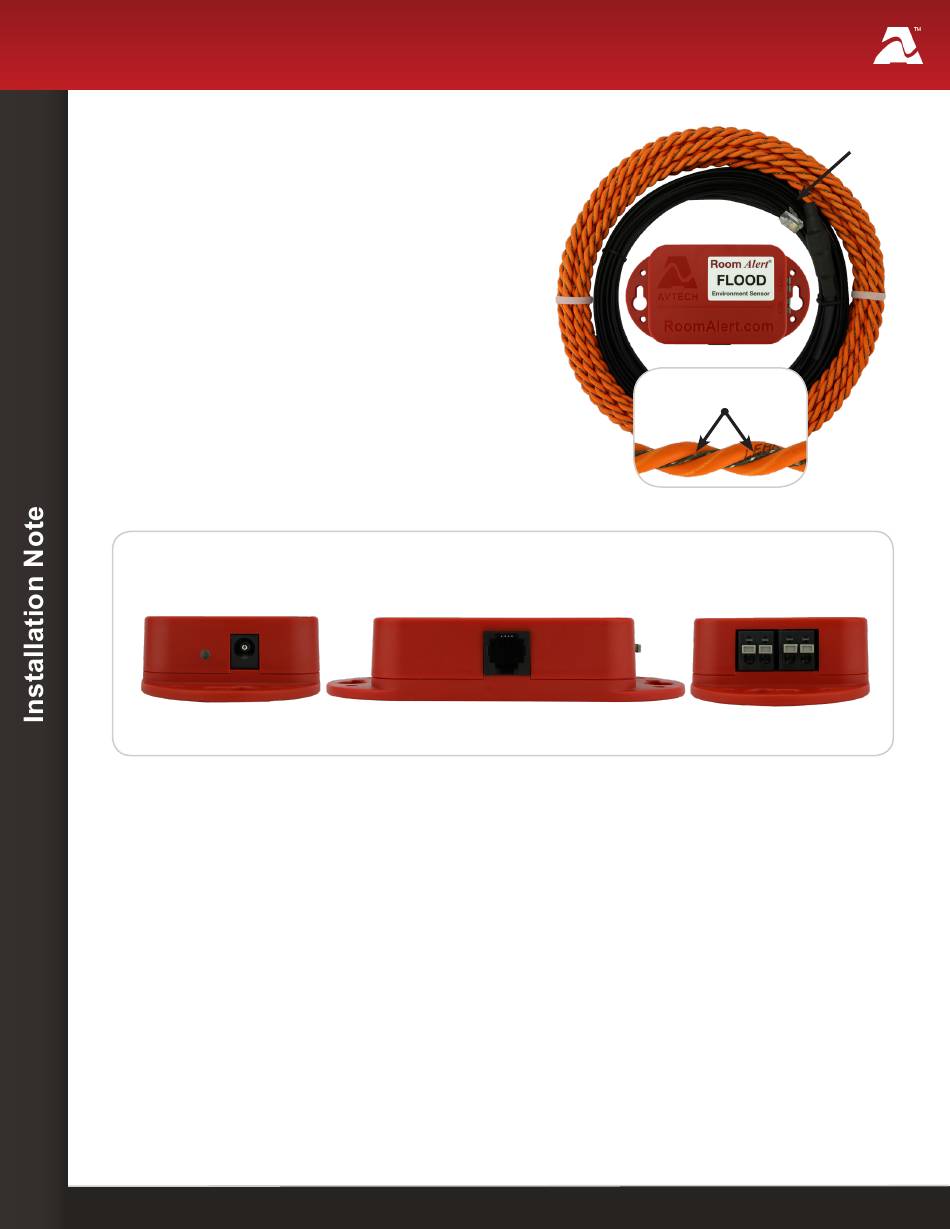

Flood Sensor Box
Status
LED
Flood Sensor - Cable Features
Switch Ports
Flood Detection Port
Use this port to monitor the presence/absence of liquid. Its switch state becomes Open
(alarm state) when liquid is detected.
Cable Fault Detection Port (Optional use)
If you wish to monitor the state of the Flood Sensor Cable itself, use this port. Its switch
state becomes Open (alarm state) under these circumstances:
• The RJ-11 leader is disconnected from the Flood Sensor box.
• There's a severe pinch, twist or other physical damage to the orange-twisted Flood Cable.
• Power is no longer being supplied to the Flood Sensor box.
Flood Sensor - Cable
Power
Port
Left
Temperature & Environment Monitoring... Made Easy!
Flood
Cable
RJ-11 Leader
Port
Front
RJ-11
Leader
Flood Box
Conductive
Threads
Cable Fault Flood
Detection Detection
Port Port
Right
