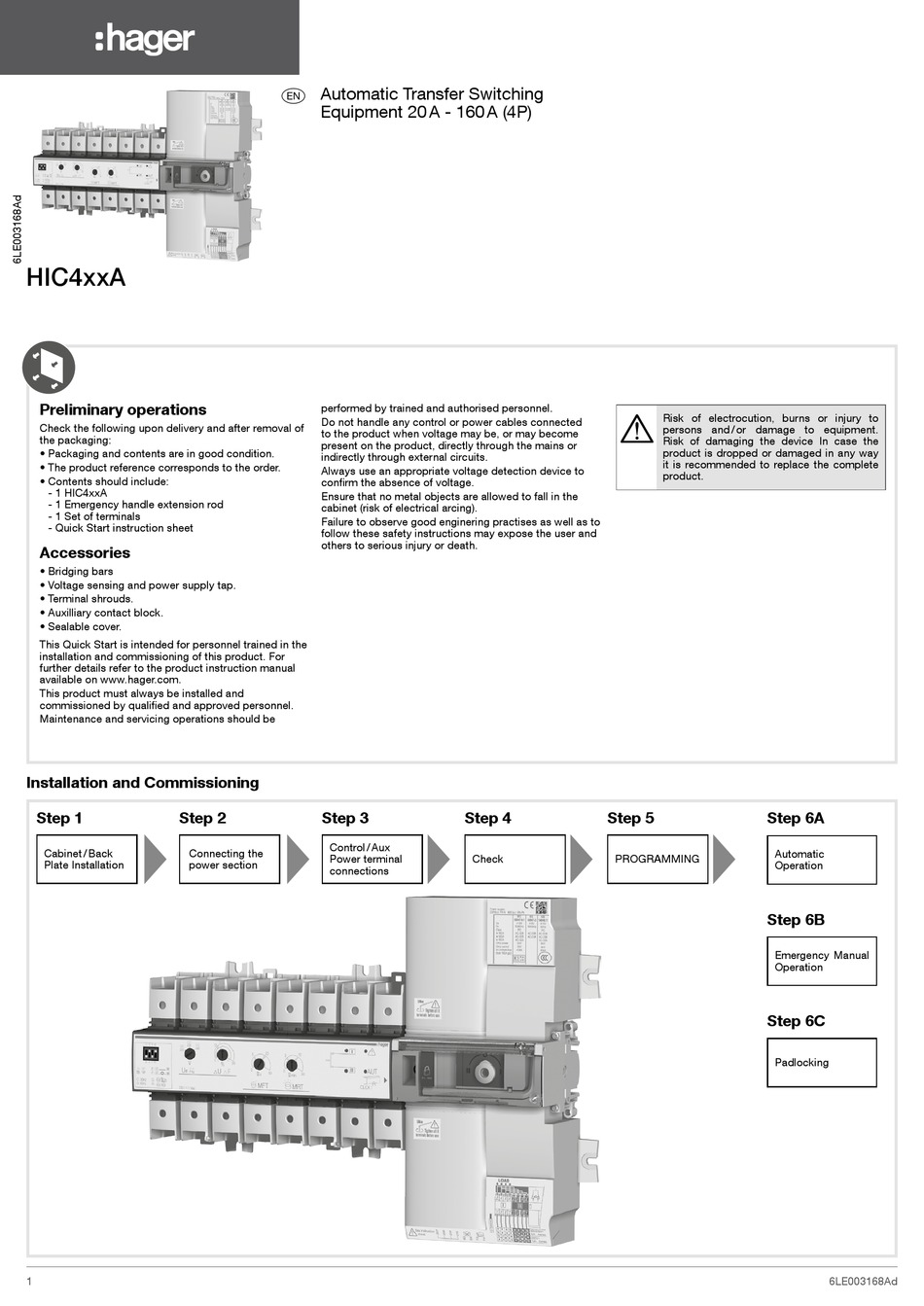

hager HIC4 A Series Quick Start

HIC4xxA
Preliminary operations
Check the following upon delivery and after removal of
the packaging:
• Packaging and contents are in good condition.
• The product reference corresponds to the order.
• Contents should include:
- 1 HIC4xxA
- 1 Emergency handle extension rod
- 1 Set of terminals
- Quick Start instruction sheet
Accessories
• Bridging bars
• Voltage sensing and power supply tap.
• Terminal shrouds.
• Auxilliary contact block.
• Sealable cover.
This Quick Start is intended for personnel trained in the
installation and commissioning of this product. For
further details refer to the product instruction manual
available on www.hager.com.
This product must always be installed and
commissioned by qualifi ed and approved personnel.
Maintenance and servicing operations should be

Installation and Commissioning

Step 1 Step 2
Cabinet / Back Connecting the
Plate Installation power section
1

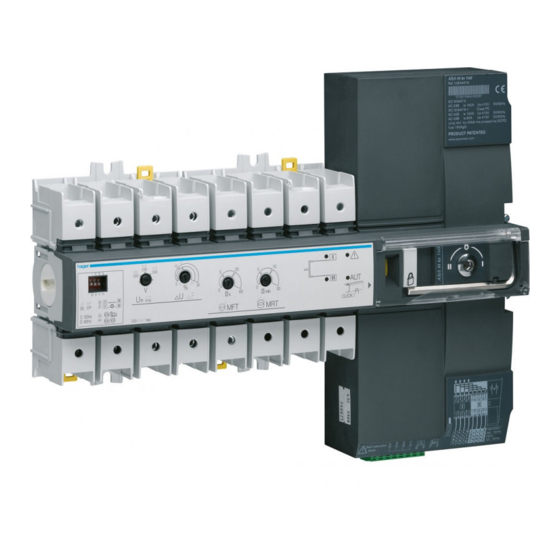

z Automatic Transfer Switching
Equipment 20 A - 160 A (4P)
performed by trained and authorised personnel.
Do not handle any control or power cables connected
to the product when voltage may be, or may become
present on the product, directly through the mains or
indirectly through external circuits.
Always use an appropriate voltage detection device to
confi rm the absence of voltage.
Ensure that no metal objects are allowed to fall in the
cabinet (risk of electrical arcing).
Failure to observe good enginering practises as well as to
follow these safety instructions may expose the user and
others to serious injury or death.
Step 3
Control / Aux
Power terminal
connections
Step 4 Step 5
Check
PROGRAMMING
Risk of electrocution, burns or injury to
persons and / or damage to equipment.
Risk of damaging the device In case the
product is dropped or damaged in any way
it is recommended to replace the complete
product.
Step 6A
Automatic
Operation
Step 6B
Emergency Manual
Operation
Step 6C
Padlocking
6LE003168Ad
