1 Multi-mode activator

The Multi-mode activator is designed to allow the user to access the chair's power seating functions
without needing to enter the Joystick Module's menu.
The MULTI-MODE ACTIVATOR does not allow power seating functions to be activated whilst
driving.
This manual is a supplement to and should be read in conjunction with your Magic Mobility
Power Wheelchair Owner's Manual
1.1

Operation

The procedure for accessing your chair's power functions using the MULTI-MODE ACTIVATOR is:
1. Stop driving (but leave Joystick in Drive Mode)
2. Use the MULTI-MODE ACTIVATOR to adjust the power seating functions as required
3. Resume driving
1.2

Program Variety

The MULTI-MODE ACTIVATOR contains a number of application specific programs that can be
selected according to the configuration of the wheelchair and the customer's requirements.
Retrofitting
If retrofitting a MULTI-MODE ACTIVATOR to an existing chair, programming changes are required.
Contact Magic Mobility for assistance

2 Hardware and Connections

2.1

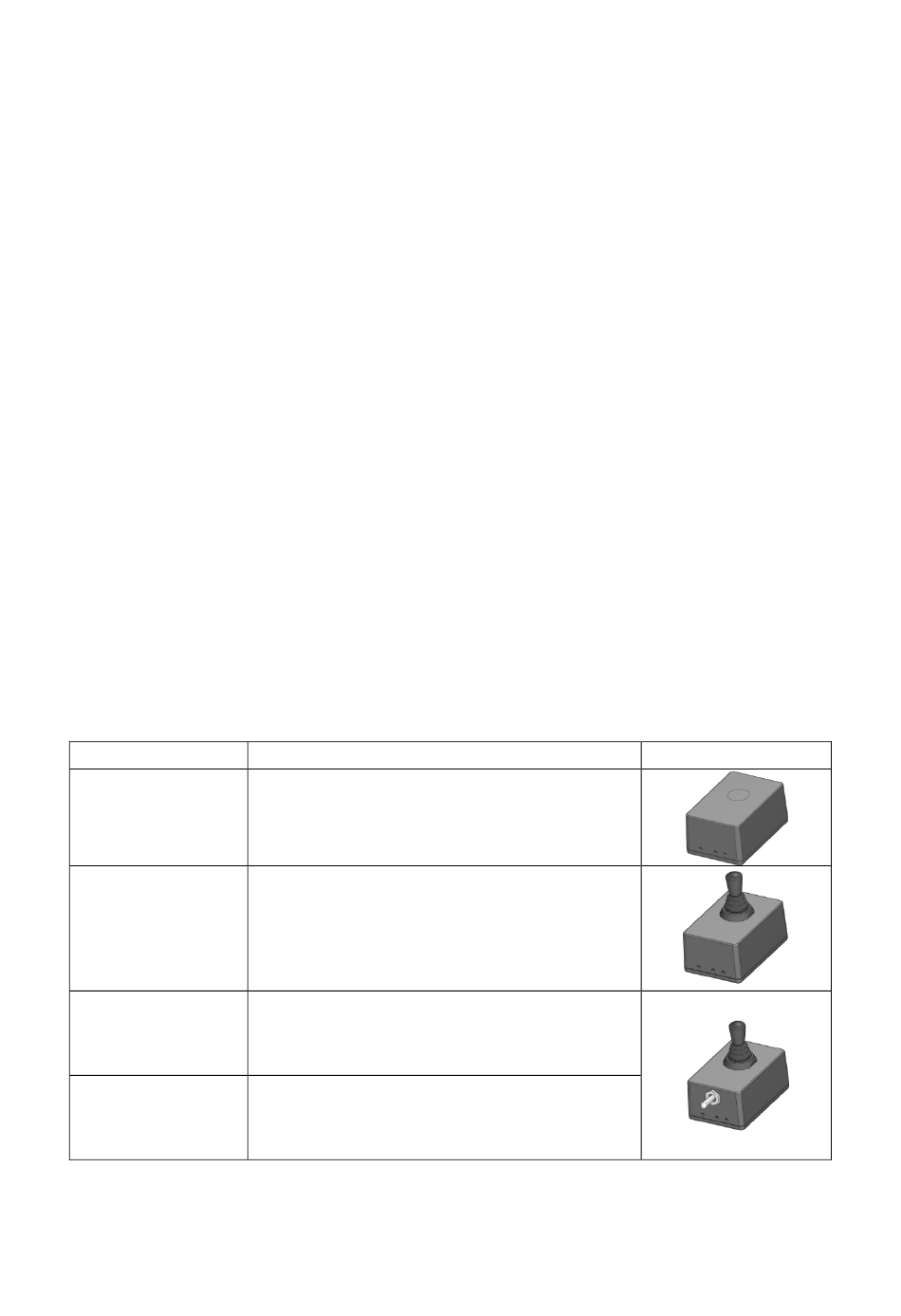

Four Models Variants

Model
S
JS
JTS
JTSN
User buttons and remote toggle or rocker switches are optional and can be used for additional
functions.
Form 07M Multi-mode activator User Guide
© Magic Mobility
Features
2 Button Sockets
1 Remote Toggle Socket
2 Button Sockets
1 Remote Toggle Socket
1 Joystick
2 Button Sockets
1 Remote Toggle Socket**
1 Joystick
1 In Built Spring-Return Toggle
2 Button Sockets
1 Remote Toggle Socket**
1 Joystick
1 In Built Non-Spring-Return Toggle
