Page 1: User Manual

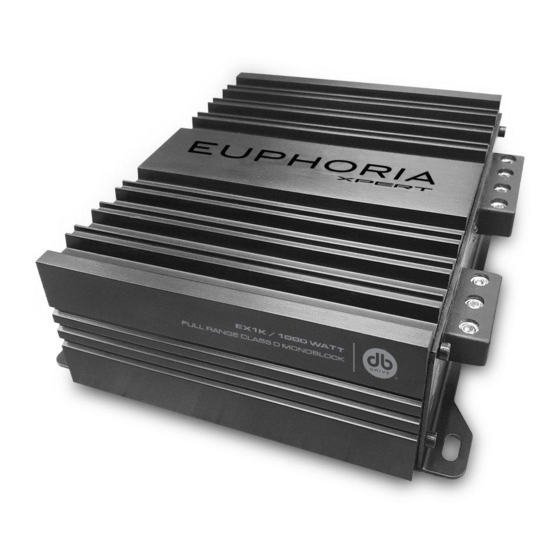

EX1K : EX2K USER MANUAL Installation Instructions | Owner’s Manual Due to continuous improvement of the product, specifications are subject to change without notice. - Page 2 1. EUPHORIA XPERT AMPLIFIERS’ SPECIFICATION EUPHORIA XPERT FULL RANGE DIGITAL 1-1. MONO AMPLIFIERS Load Voltage & THD EX1K EX2K 4ohm 14.4 volts & 1% 1 X 250 1 X 500 2ohm 14.4 volts & 1% 1 X 500 1 X 1000 1ohm 14.4 volts &...
- Page 3 INPUT GND (GROUND CONNECTION) OUTPUT REM (REMOTE) GAIN (6V ~ 0.2V) SPEAKER OUTPUTS HIGH PASS FILTER POWER & PROTECTION INDICATOR LOW PASS FILTER +12V (POWER CONNECTION) 3. INSTALLATION ake all steps into consi 3-1. MOUNTING PREPARATION atte 3-2. MOUNTING PREPARATION equipm system 3-3.
- Page 4 BATTERY 3-4. SPEAKER CONNECTION DB Drive recommends to use minimum 12 gauge speaker connect ing cables. Run 12 gauge speaker connecting cables from your speakers to EUPHORIA XPERT amplifier’s mounting location. Keep speaker cables away from the power cables and EUPHORIA XPERT amplifier’s input cables. Use grommets anywhere the cables have to pass through the hoes in the metal frame or sheet metal.
- Page 5 EUPHORIA XPERT DIGITAL FULL RANGE AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 1. 1 Ohm Minimum 8 ~ 1 ohms EX1K & EX2K amplifiers minimum impedance is 1 ohms. minimum working voltage : 10V - 16Volts EUPHORIA XPERT DIGITAL FULL RANGE AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 2. 8 ~ 2 ohms 1 Ohm Minimum 8 ~ 2 ohms...
- Page 6 4. TROUBLE SHOOTING NO SOUND ( NO OUTPUT ) 1) Please check all connections, cables’ routing, short and voltage at amplifiers and headunit. EUPHORIA XPERT 2) Please check built-in or external fuses, If it is blown, please repalce with new one. 3) Please check whether speakers work well, you can test speakers by connecting to another amplifiers.
-
Page 7: Limited Warranty
LIMITED WARRANTY Euphoria warrants any products purchased in the U.S.A. from an authorized Euphoria dealer. All products are warranted to be free from defects in material and workmanship under normal use and service for a period of two (2) years when the unit is installed by an authorized Euphoria dealer.
