Summary of Contents for DB Drive Euphoria FX90.4

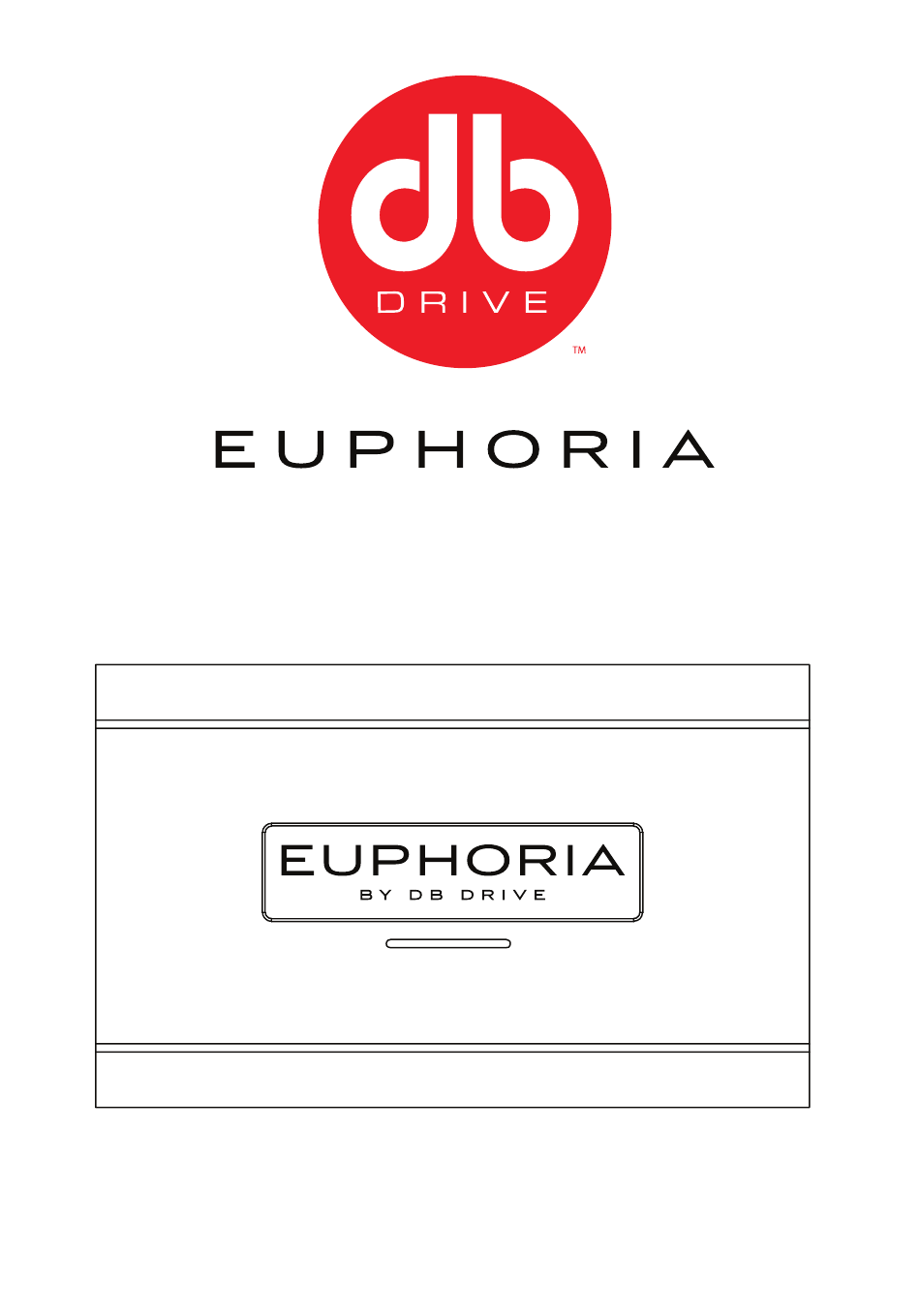

- Page 1 FX90.4 / FX125.4 MX600.1 / MX1200.1 / MX2000.1 / MX3000.1 | MONOBLOCK AMPLIFIER MX1200.1 USER MANUAL Installation Instructions | Owner’s Manual Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 CH 4 The DB Drive Euphoria 4 channel amplifiers (FX90.4 and FX125.4) feature a 12db Slope crossover network. Channels 1 and 2 can be used in the High pass setting or full range and channels 3 and 4 feature a selectable 3 way crossover system that can be used in High pass, Bandpass or low pass settings.
- Page 3 AMPLIFIERS’ SPECIFICATION MONO CLASS D AMPLIFIERS Load Voltage & THD MX600.1 MX1200.1 MX2000.1 MX3000.1 1ohm 14.4 volts & 1% 1 x 600 Watts 1 x 1200 Watts 1 x 2000 Watts 1 x 3000 Watts 2ohm 14.4 volts & 1% 1 x 300 Watts 1 x 600 Watts 1 x 1000 Watts...
-
Page 4: Installation
INPUT GND (GROUND CONNECTION) Connect RCA output cables from the headunit to It is connected to the negative or ground cables of EUPHORIA XPERT amplifiers’ RCA Input the vehicle. Recommended wire is 4 gauge or thicker. GAIN (6V ~ 0.2V) Matching the output voltage of the headunit‘s RCA REM (REMOTE) line-outs to EUPHORIA XPERT amplifiers’... -
Page 5: Troubleshooting
Ground 1-4. SPEAKER CONNECTION DB Drive recommends to use minimum 12 gauge speaker connecting cables. Run 12 gauge speaker connecting cables from your speakers to amplifier’s mounting location. Keep speaker cables away from the power cables and amplifier’s input cables. Use grommets anywhere the cables have to pass through the holes in the metal frame or sheet metal. - Page 6 FOUR CHANNEL AMPLIFIER SPEAKER CONNECTION DIAGRAM 1 8 ~ 2 ohms 8 ~ 2 ohms BRIDGED POWER INPUT CH 1 CH 2 +12V 4 CHANNEL AMPLIFIER FX90.4 BRIDGED CH 3 CH 4 8 ~ 2 ohms 8 ~ 2 ohms Working voltage is 12 ~ 16volts Minimum working impedance is 2ohm in stereo or 4ohm bridged.
- Page 7 MONO AMPLIFIER SPEAKER CONNECTION DIAGRAM 1 SPEAKER OUTPUT SPEAKER OUTPUT POWER INPUT +12V 1 Ohm Minimum 8 ~ 1 ohms minimum impedance is 1 ohms. minimum working voltage : 10V - 16Volts MONO AMPLIFIER SPEAKER CONNECTION DIAGRAM 2 8 ~ 2 ohms SPEAKER OUTPUT SPEAKER OUTPUT POWER INPUT...
-
Page 8: Limited Warranty
(1) year when purchased over the counter. This warranty applies to the original purchase only. DB Drive will either repair or replace (as its option) any unit that had been found to be defective and under warranty provided the defect occurs within the one (1) year warranty period.
