DB Drive EUPHORIA XPERT MINI Installation Instructions & Owner's Manual
  1. Manuals
  2. Brands
  3. DB Drive Manuals
  4. Amplifier
  5. EUPHORIA XPERT MINI
  6. Installation instructions & owner's manual

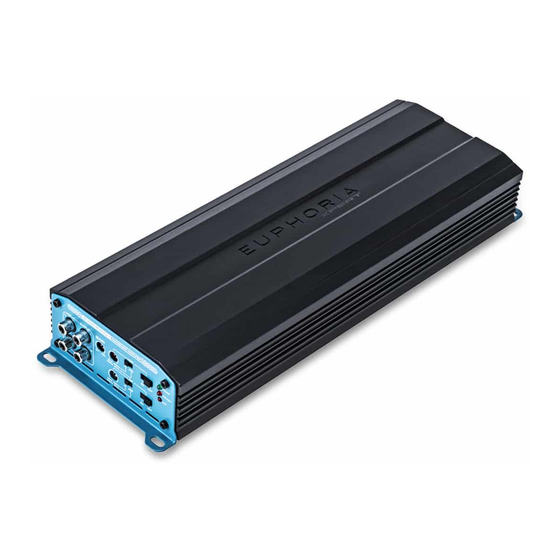

DB Drive EUPHORIA XPERT MINI Installation Instructions & Owner's Manual

Full range class d monoblock, 4 channel full range class d
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
M
I
N
I
EXM3000.1 : EXM2000.1
EXM900.4 : EXM400.4
FULL RANGE CLASS D MONOBLOCK
4 CHANNEL FULL RANGE CLASS D
USER MANUAL
Installation Instructions | Owner's Manual
Due to continuous improvement of the product, specifications are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EUPHORIA XPERT MINI and is the answer not in the manual?

Questions and answers

Related Manuals for DB Drive EUPHORIA XPERT MINI

Summary of Contents for DB Drive EUPHORIA XPERT MINI

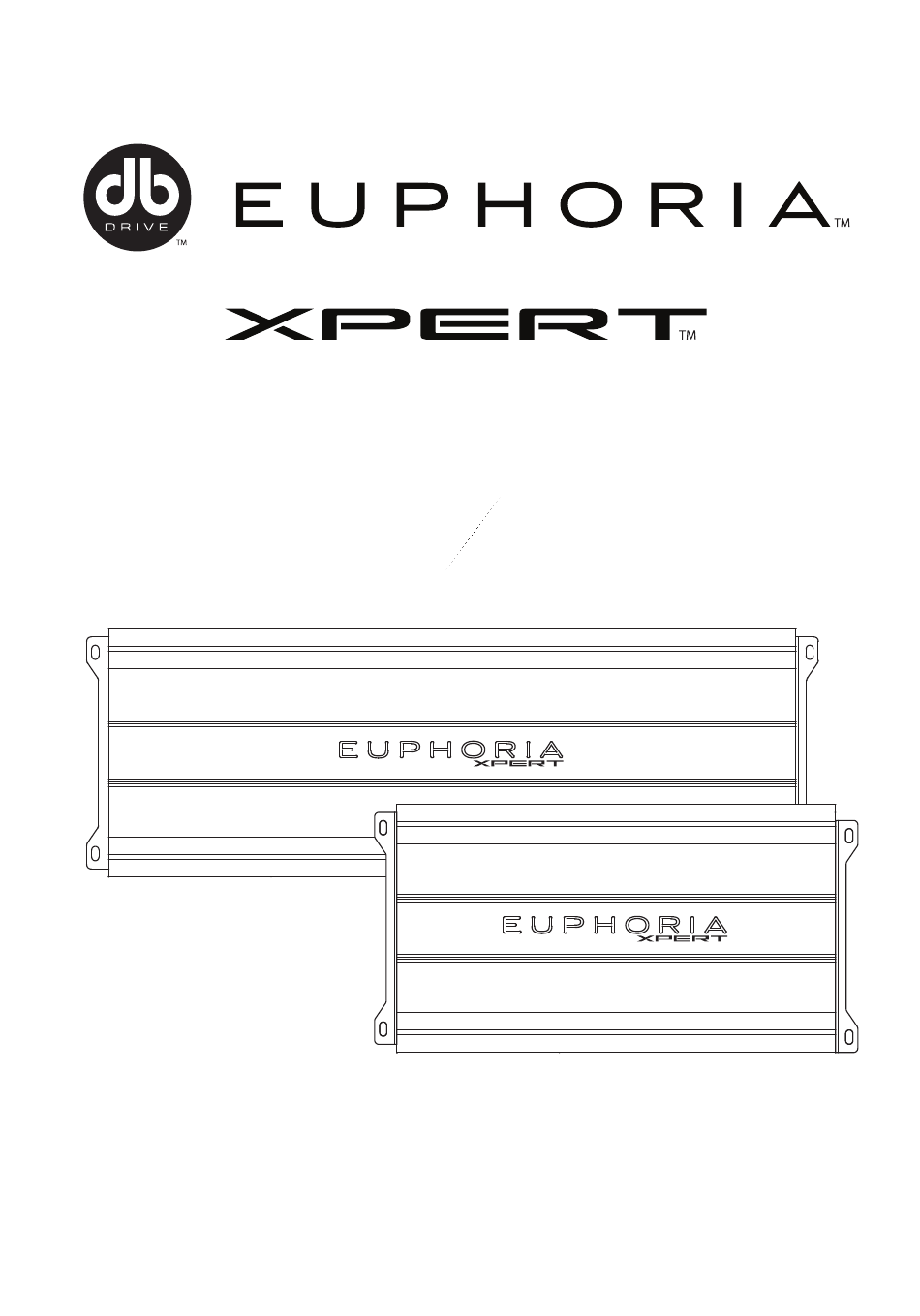

  • Page 1 EXM3000.1 : EXM2000.1 EXM900.4 : EXM400.4 FULL RANGE CLASS D MONOBLOCK 4 CHANNEL FULL RANGE CLASS D USER MANUAL Installation Instructions | Owner’s Manual Due to continuous improvement of the product, specifications are subject to change without notice.
  • Page 2 1.1 AMPLIFIERS’ SPECIFICATION AMPLIFIERS: EXM900.4, EXM400.4 SPECIFICATIONS EXM900.4 EXM400.4 Rated Power: 4Ω @ 14.4 Volts & 1% THD : 4 x 450 Watts 4Ω @ 14.4 Volts & 1% THD : 4 x 200 Watts Rated Power: 2Ω @ 14.4 Volts & 1% THD : 4 x 400 Watts 2Ω...
  • Page 3 1.2 AMPLIFIERS’ SPECIFICATION AMPLIFIERS: EXM3000.1, EXM2000.1 SPECIFICATIONS EXM3000.1 EXM2000.1 Rated Power: Rated Power: Rated Power: Working Voltage 10Hz - 22KHz 10Hz - 22KHz Frequency Response: Signal to Noise Ratio: Damping Factor: Low Level Input: High Pass Filter Variable: Low Pass Filter Variable: Minimum Working Impedance: 2.2 AMPLIFIER’S CONTROL &...

  • Page 4: Installation

    +12V (POWER CONNECTION) INPUT GAIN (6V ~ 0.2V) GND (GROUND CONNECTION) ACT- Adaptive Crossover Technology REM (REMOTE) APC Audio Protection Circuit SESI - Signal Evaluation Status Indicator 3. INSTALLATION 3-1. MOUNTING PREPARATION 3-2. MOUNTING PREPARATION 3-3. +12V, GND, REM CONNECTION. 12V (POWER CONNECTION)
  • Page 5 GND ( GROUND CONNECTION ) REM ( REMOTE CONNECTION ) AMPLIFIER +12V, GROUND, REMOTE CONNECTION DIAGRAM Ground Ground 3-4. SPEAKER CONNECTION...
  • Page 6 EXM900.4/EXM400.4 AMPLIFIER SPEAKER CONNECTION DIAGRAM 1 EXM900.4/EXM400.4 working voltage is 10 ~ 16volts EXM900.4/EXM400.4 minimum working impedance is EX900.4/EX400.4 AMPLIFIER SPEAKER CONNECTION DIAGRAM 2...

  • Page 7: Troubleshooting

    EXM3000.1/EXM2000.1 AMPLIFIER SPEAKER CONNECTION DIAGRAM 1 EXM3000.1/EXM2000.1 working voltage is 10 ~ 16volts EXM3000.1/EXM2000.1 EXM3000.1/EXM2000.1 AMPLIFIER SPEAKER CONNECTION DIAGRAM 2 4. TROUBLESHOOTING NO SOUND ( NO OUTPUT ) PROTECTION WHINING NOISE...

  • Page 8: Limited Warranty

    LIMITED WARRANTY Euphoria warrants any products purchased in the U.S.A. from an authorized Euphoria dealer. All products are warranted to be free from defects in material and workmanship under normal use and service for a period of two (2) years when the unit is installed by an authorized Euphoria dealer.
