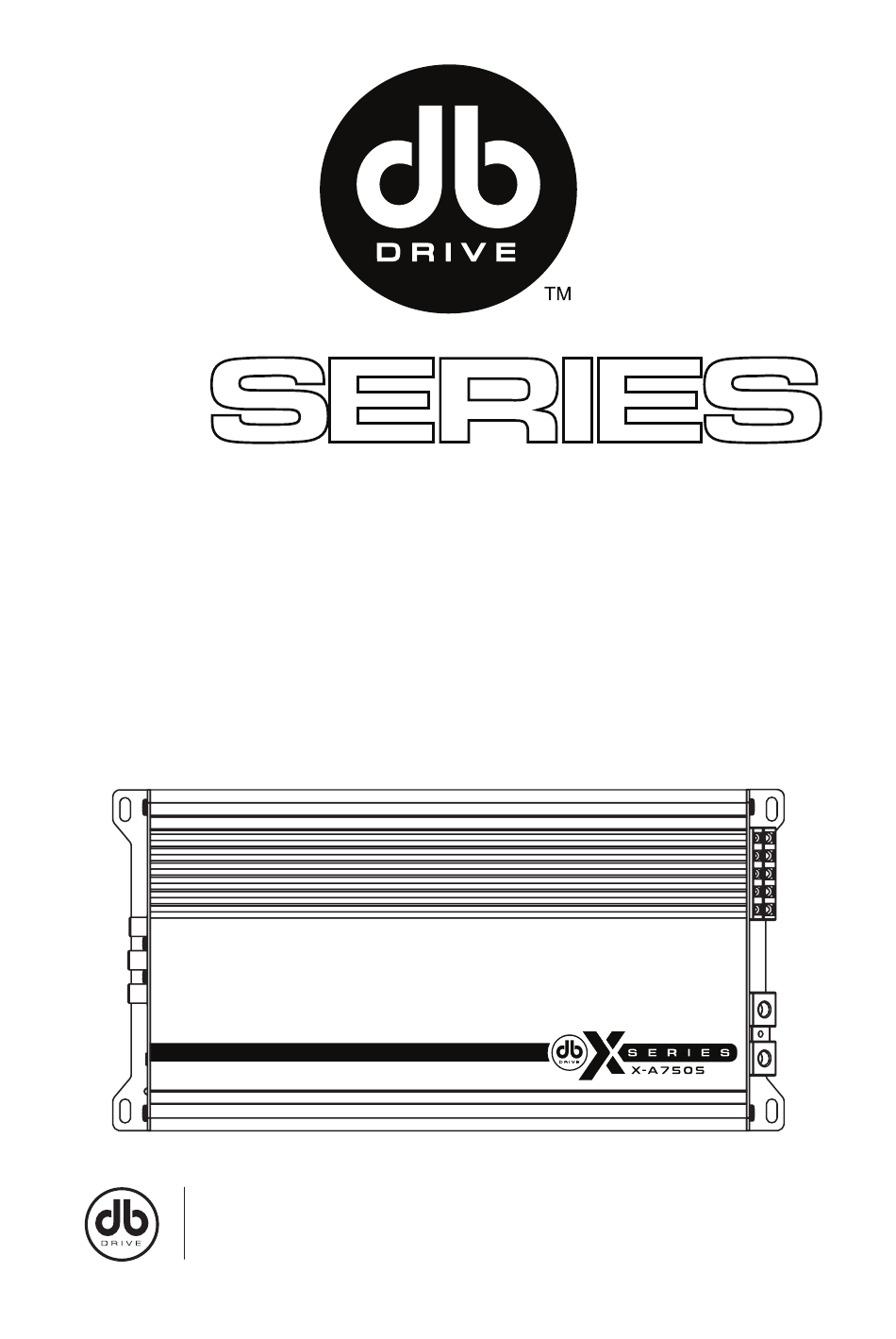

- Page 1 A M P L I F I E R S X-A1200 X-A2000 X-A4002 X-A4004 X-A7505 User Manual • Installation Instructions / Owner’s Manual • Due to continuous improvement of the product, the specifications are subject to change without notice.
- Page 2 This is our commitment to you. It’s what you deserve and have come to expect from DB DRIVE. We appreciate the confidence and look forward to your positive experience.
- Page 3 1. X-SERIES AMPLIFIER’S SPECIFICATION Input Sensitivity: 0.2V - 6V X-A1200 - Digital Monoblock Amplifiers Input Impedance: 90dB Signal to Noise Ratio: Load Voltage & THD X-A1200 Remote Gain Level Control: 0.2-6V 40Hz -100Hz 4ohm 14.4 volts & 1% Bass Boost Frequency: 1 X 150 Watts Low Pass Filter: 50Hz-150Hz...
- Page 4 2. X-SERIES AMPLIFIER’S CONTROL & CONNECTION. 2-1. X_SERIES - 2 Channel / Monoblock Amplifiers COLLECTIVE HEAT MANAGEMENT MONOBLOCK AMPLIFIERS Low Pass Filter: 50Hz - 150Hz The X-Series amplifiers use a specially designed heat radiation heatsink to C.H.M 2 CHANNEL AMPLIFIER avoid excessive heat from the circuitry Variable Filter: 30Hz - 320Hz REMOTE LEVEL CONTROL PORT...
- Page 5 2-2. X_SERIES - 4 Channel Class D Amplifier / 5 Channel Class D Amplifier REMOTE LEVEL CONTROL PORT MODE ( CH2 / CH 4 ) This port is for connecting the remote gain Selectable input setting. level control. COLLECTIVE HEAT MANAGEMENT The X-Series amplifiers use a specially GND ( GROUND CONNECTION ) designed heat radiation heatsink to...
-
Page 6: Installation
In case you install the X-Series amplifiers by yourself, please read owner's manual very carefully. Before you start your installation, please take all steps into consideration, or you can have a DB Drive or DB Research’s authorized dealer check the installation and help set your car audio systems. -
Page 7: Speaker Connection
BATTERY 3-4. SPEAKER CONNECTION DB Drive recommends to use a minimum of 12 gauge speaker connecting cables. Run 12 gauge speaker connecting cables from your speakers to X-Series amplifier's mounting location. Keep speaker cables away from power cables and X-Series amplifier's input cables. Use grommets anywhere the cables have to pass through the holes in the metal frame or sheet metal. - Page 8 3-4A. X-SERIES MONOBLOCK AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 1. 4 ~ 1 ohms 3-4B. X-SERIES MONOBLOCK AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 2. 4 ~ 2 ohms CAUTION !! 4 ~ 2 ohms X-A1200 and X-A2000 amplifiers minimum impedance is 1 ohms.
- Page 9 3-5A. X-SERIES 2 CHANNEL AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 1. 8 ~ 2 ohms 8 ~ 2 ohms 3-5B. X-SERIES 2 CHANNEL AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 2. 8~ 4 ohms CAUTION !! X-A4002 Amplifier’s minimum impedance is 2 ohms stereo or 4 ohm mono.
- Page 10 3-6A. X-SERIES 4 CHANNEL AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 1. 8 ~ 2 ohms 8 ~ 2 ohms 8 ~ 2 ohms 8 ~ 2 ohms 3-6B. X-SERIES 4 CHANNEL AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 2. 8 ~ 2 ohms 8 ~ 2 ohms 8~ 4 ohms CAUTION !! X-A4002 Amplifiers’...
-
Page 11: Troubleshooting
3-7A. X-SERIES 5 CHANNEL AMPLIFIER’S SPEAKER CONNECTION DIAGRAM 1. 8 ~ 2 ohms 8 ~ 2 ohms 8 ~ 2 ohms 8 ~ 2 ohms 8~ 4 ohms 4. TROUBLE SHOOTING NO SOUND ( NO OUTPUT ) 1) Please check all connections, cables' routing, short and voltage at X-Series amplifiers and headunit. - Page 12 (1) year parts and labor limited warranty. This warranty applies to original purchase only, non-transferable. DB Drive™ will either repair or replace (at its option) any unit that has been found to be defective and under warranty.
