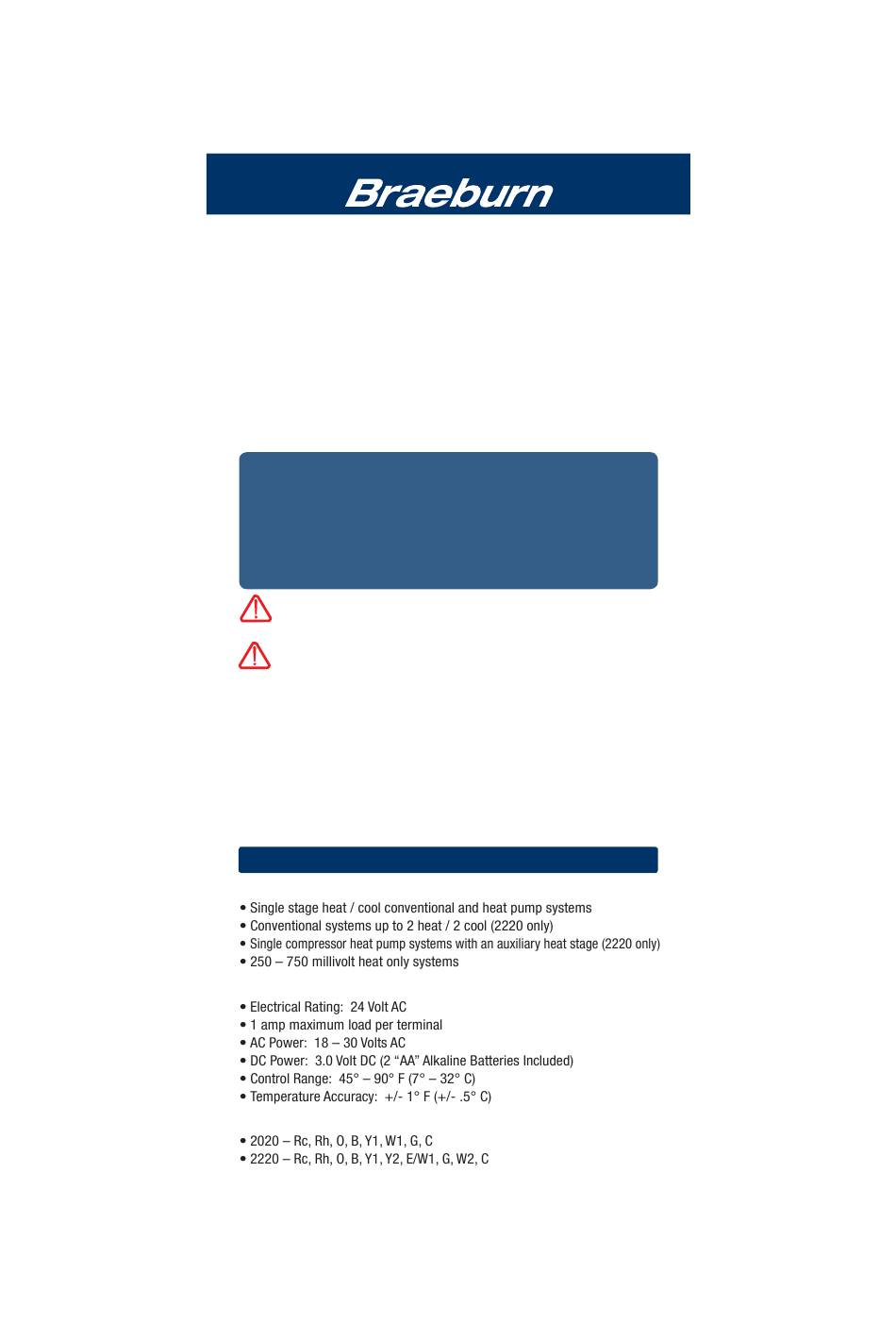

Programmable
Thermostats
Single Stage Heat / Cool
2020
Conventional and Heat Pump
Up to 2 Heat / 2 Cool Conventional
2220
Up to 2 Heat / 1 Cool Heat Pump
Model number is located on back of thermostat
1 Specifications
2 About Your Thermostat
3 Installation
4 System Testing
5 Setting User Options
Warning
Turn off power to the heating or cooling
equipment before installation.
Attention
For installation by experienced service
technicians only.
Read all instructions before proceeding.
This thermostat requires 24 Volt AC Power or two (2) properly installed
"AA" Alkaline batteries for proper operation. When connecting 24 Volt
AC Power the batteries may be installed as a backup.
For use only as described in this manual. Any other use
will void warranty.
1 Specifications
This thermostat is compatible with:
Electrical and control specifications:
Terminations
®
Detailed
User Guide
6 Setting Your Program Schedule
7 Operating Your Thermostat
8 Additional Operation Features
9 Thermostat Maintenance
2020W-100-06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Braeburn 2020
Summary of Contents for Braeburn 2020
-
Page 1: Programmable Thermostats
Detailed Programmable User Guide Thermostats Single Stage Heat / Cool 2020 Conventional and Heat Pump Up to 2 Heat / 2 Cool Conventional 2220 Up to 2 Heat / 1 Cool Heat Pump Model number is located on back of thermostat 1 Specifications... -
Page 2: About Your Thermostat

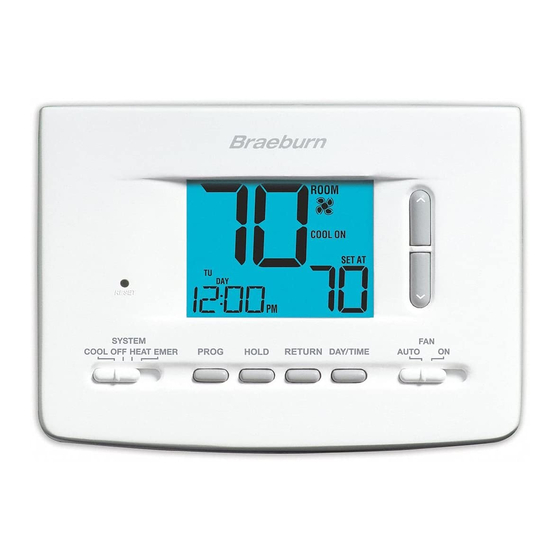

2 About Your Thermostat Room Temperature Day of Week Program Event Indicator Time of Day Low Battery Indicator Fan Indicator Hold Mode Indicator System Status Indicator Set Temperature Service Filter Indicator Reset Button System Switch PROG Button HOLD Button RETURN Button DAY/TIME Button Quick Reference Instructions... -
Page 3: Installation
3 Installation Warning Disconnect power before beginning installation. Thermostat Location Install your new Braeburn thermostat in 5 basic steps: Install the Sub-Base: Drill 3/16” pilot holes in your desired location. Use supplied anchors for drywall or plaster. NOTE: After sub-base installation, you may insert the quick reference card... - Page 4 Provide Power 24VAC Power Terminal (C) For 24 Volt AC power For primary or back-up power Connect Your Wires Wiring Terminations Terminal Function Description Additional Terminations (2220 only) Terminal Function Description...
- Page 5 Conventional Systems Typical Wiring Configurations NOTE: The “Installer Switch” option will be configured in the next step. Heat Only or Millivolt Set Installer Switch to CONV W1/E [note 4] [note 1] 1 HEAT / 1 COOL Single or Dual Transformer Set Installer Switch to CONV [note 2] [note 2]...
- Page 6 Heat Pump Systems Typical Wiring Configurations NOTE: The “Installer Switch” option will be configured in the next step. 1 HEAT / 1 COOL - No Auxiliary Heat Set Installer Switch to HP O or B [note 2] [note 1] 2 HEAT / 1 COOL - Including Auxiliary Heat (2220 only) Set Installer Switch to HP O or B [note 2]...
-
Page 7: System Testing
NOTE: Installer switches are located on the back of the thermostat. The reset button must be pressed after making any changes to these switches. Attach Thermostat to Sub-Base 4 System Testing Warning Read Before Testing NOTE: The compressor delay can be bypassed by pressing the reset button on the front of the thermostat. -
Page 8: Setting User Options
5 Setting User Options Advanced User Options To enter the User Options menu, hold down the RETURN button for approximately 3 seconds until the screen changes and displays the first User Option. RETURN Table of User Options User Factory Setting Options Default Options... -
Page 9: Setting Your Program Schedule
Extended Hold Period* (User Option 4) Service Filter Monitor (User Option 5) RETURN Adaptive Recovery Mode (early recovery)* (User Option 6) Setting Result 6 Setting Your Program Schedule Setting the Time and Day DAY/TIME DAY/TIME DAY/TIME RETURN Tips Before Setting Your Program Schedule This thermostat has been configured with one of the following programming options:... -
Page 10: Energy Saving Programs
NOTE: If this thermostat was set in the Installer Settings to be non-programmable, then you cannot set a user program. If you press the PROG HOLD buttons, the word “NO” will appear in the display, indicating there is no program present. See section 5, “Setting User Options”... - Page 11 Programming a 7 Day Schedule individual Setting All 7 Days at Once (SpeedSet ® NOTE: Setting all 7 days at once will copy over any previously programmed individual days. PROG PROG. PROG PROG RETURN Setting Individual Days (7 Day Mode) PROG DAY/TIME PROG...
-
Page 12: Operating Your Thermostat
Programming a 5-2 Day Schedule PROG PROG PROG PROG mode RETURN 7 Operating Your Thermostat Setting the System Control Mode COOL HEAT Additional Switch Position (Model 2220 Only): EMER NOTE: If your model 2220 was set for a conventional system (CONV) then you will not have the EMER (emergency heat) option and “NO EMER SET”... - Page 13 Setting the Fan Control Mode AUTO Temperature Adjustment Temporary Adjustment Extended Adjustment HOLD Status Indicators HEAT ON COOL ON SERVICE Additional status indicators (Model 2220 Only): EMER Program Event Indicators Note: You will not see a program event indicator while in HOLD Mode. Resetting the Thermostat...
-
Page 14: Additional Operation Features
8 Additional Operation Features Compressor Protection 9 Thermostat Maintenance Changing the Batteries If batteries are installed and they become low, a low battery indicator will appear in the display. NOTE: We recommend replacing the thermostat batteries annually or if the thermostat will be unattended for an extended period of time. -
Page 15: Limited Warranty
Store this manual for future reference Limited Warranty YEAR LIMITED WARRANT Y 2020W-100-06...
