Installation Instructions
1
M3x6 screws supplied with VLT

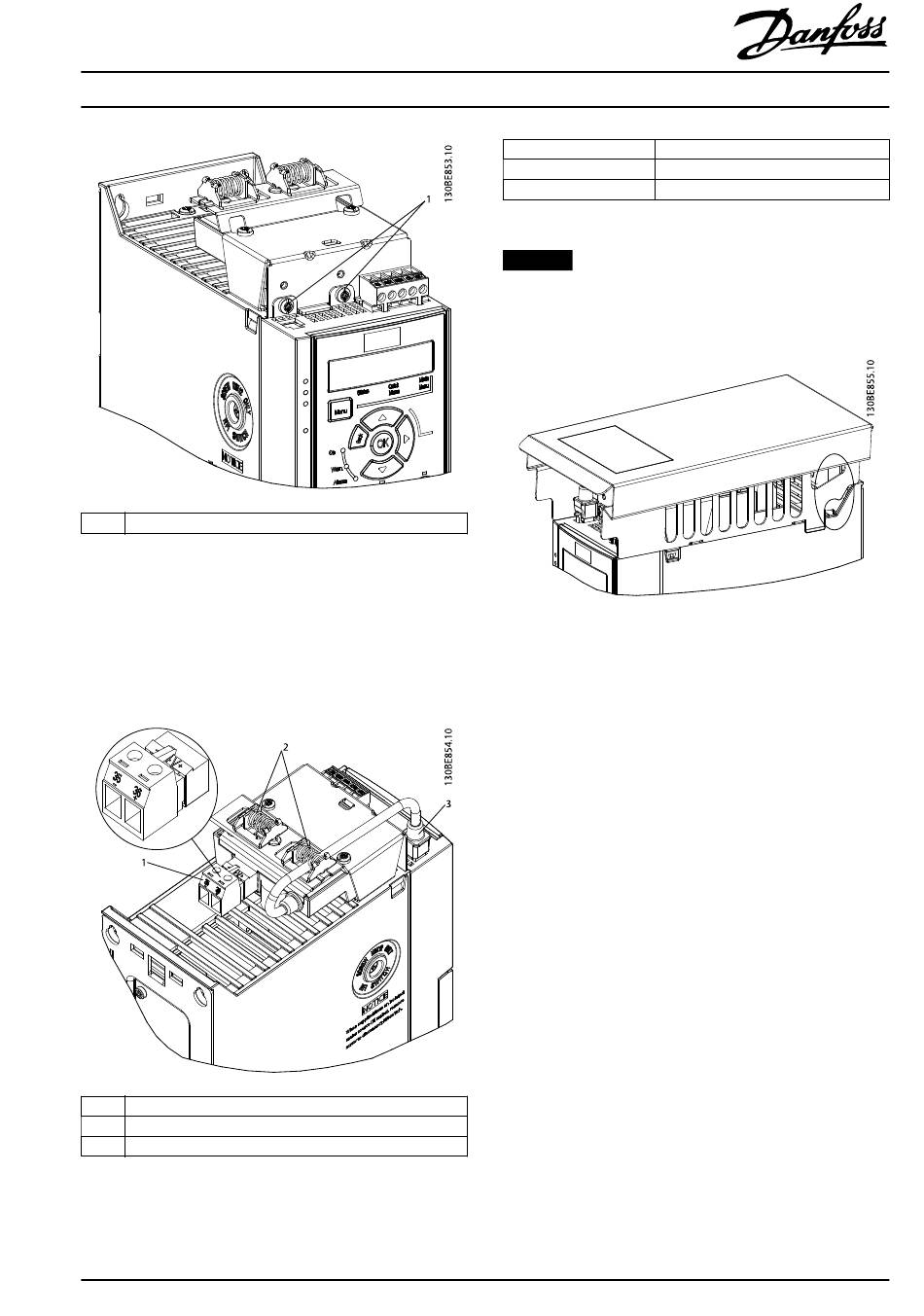

Illustration 1.3 Mounting MCB 106 and Bus Decoupling Kit
Assembly on the Frequency Converter
8. Connect the cable to the frequency converter, and fix
the cable with the spring.
9. Connect the external 24 V power supply cable to the
terminal 35 and 36 of the plug.
1 Plug
2 Springs
3 Cable
Illustration 1.4 Connecting Cables
MI07G202
®
VLT 24 V DC Supply MCB 106
®
VLT Midi Drive FC 280
®
24 V DC Supply MCB 106
Danfoss A/S © 02/2019 All rights reserved.
Terminal number
Terminal 35
Terminal 36
Table 1.4 24 V Back-up Option
NOTICE
If IP21/Type 1 Conversion Kit is installed on the frequency
converter, install the external 24 V power supply cable
through the slot as shown in Illustration 1.5.
Illustration 1.5 Frequency Converter with IP21/Type 1 Conversion
Kit
Power supply
- external 24 V DC supply
+ external 24 V DC supply
3
