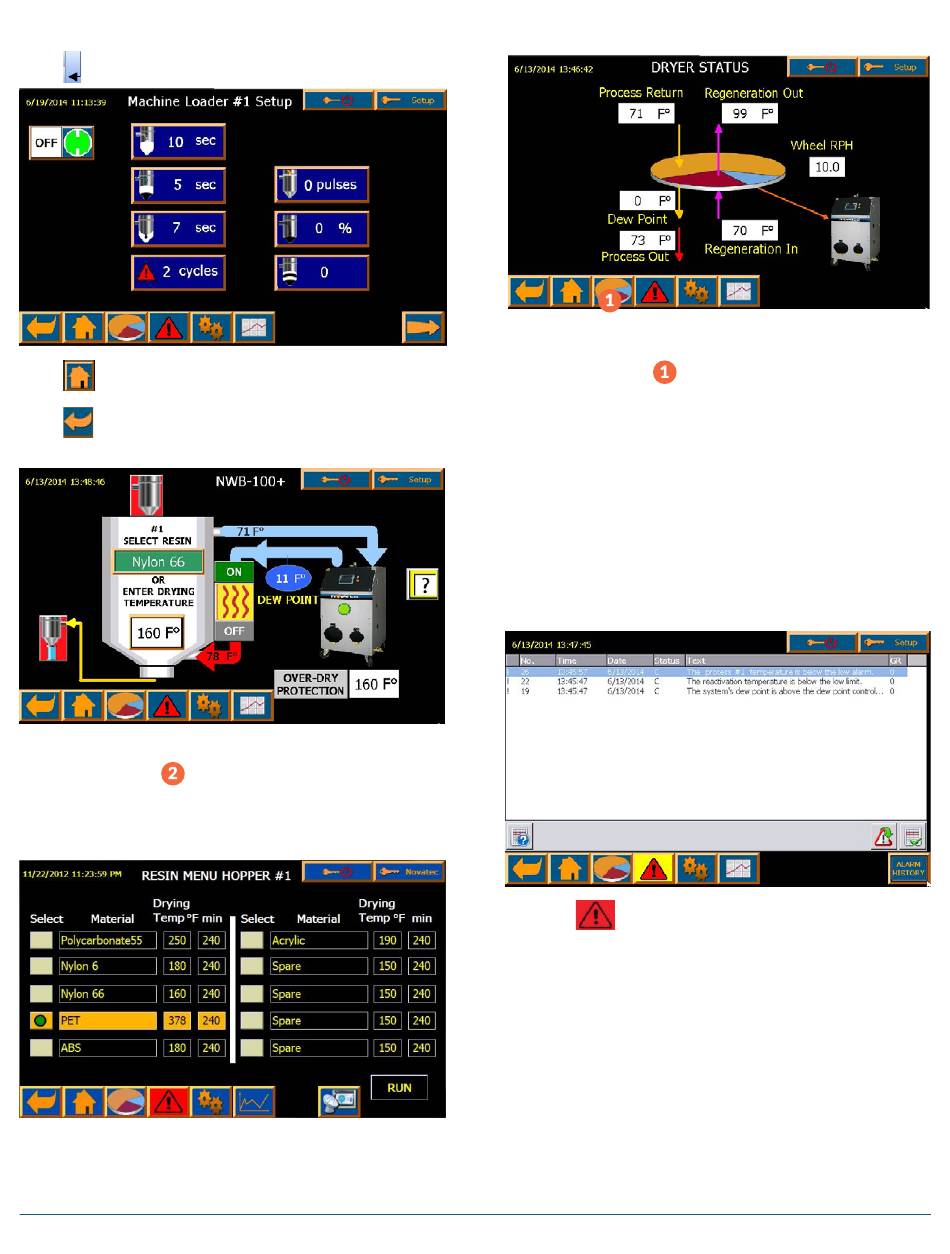

18.3 Machine Loader Setup

Press each function and enter value on numeric screen.
Press after each entry.
Press to access Quick Op Screen .
Press on Machine Loader 1 screen and again on
Hopper Loader 1 screen to return to Quick Ops screen.

18.4 Resin Menu

Access by pressing on QUICK OP screen.
Select a material by pressing the button next to a
Material. Several materials with appropriate drying tem-
peratures have been pre-loaded into the resin menu.
Up to 10 different recipes can be entered. Note that
level1 personnel can choose a recipe and run it but only
level 2 personnel can change recipes.

18.5 Dryer Status Screen

This screen is widely used by processors
Access by pressing the dryer image on the
Quick Op screen or
All of the dryer parameters can be monitored.
• Reactivation inlet and outlet temperature
• Process inlet and outlet temperature
• System dew point
• Calculated desiccant wheel RPH
The graphics on this screen will change appearance in
accordance with the mode of operation.
18.6 Message Screen – Alarms
This icon will appear on all screens when there is an
alarm. It will flash for an active alarm and show the count
for how many alarms are active. It will disappear when
the alarms clear or are cleared by operator intervention.
Alarm messages will appear as a drop-down box on any
screen when the Alarm icon is pressed.
21
on ANY screen.
