Summary of Contents for Fermax VDS VIDEO CITYLINE iLOFT KIT
Page 1

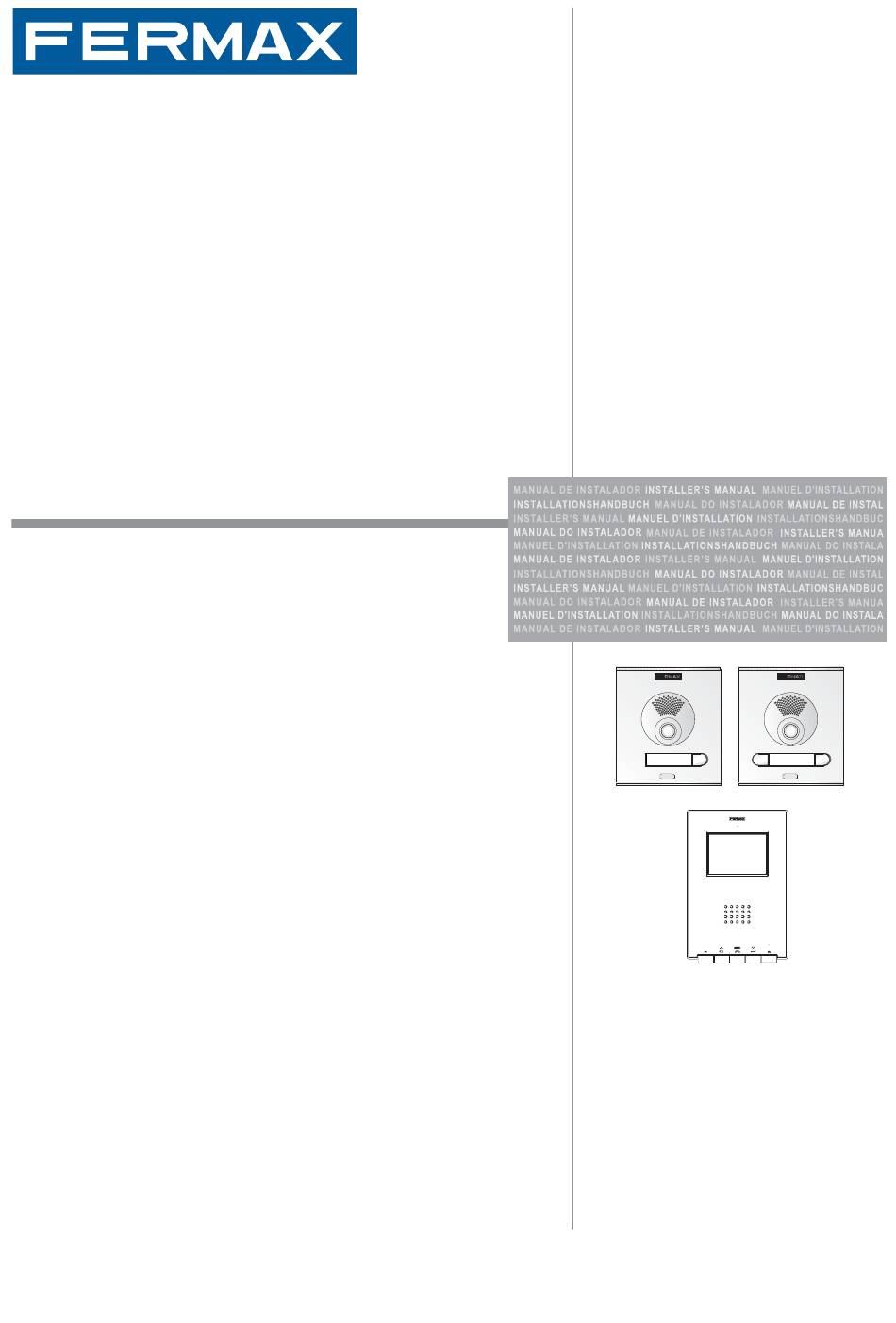

KIT VIDEO CITYLINE VDS iLOFT VDS VIDEO CITYLINE iLOFT KIT E S PA Ñ O L MANUAL DE INSTALADOR Y USUARIO E N G L I S H USER& INSTALLER’S MANUAL...
Page 2
VDS iLoft Kit «Kit Video Cityline iLOFT» Este documento técnico lo edita FERMAX ELECTRONICA S.A.U. con carácter informativo, y se reserva el derecho a modificar características de los productos que en él se refieren en cualquier momento y sin previo aviso. Estos cambios vendrán reflejados en posterio- res ediciones del mismo.
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit INSTALACIÓN DEL ALIMENTADOR Instalación en carril DIN Fijación con tornillos Desmontaje Montaje A IN...
Page 7
131mm 14mm - Prof * : la profundidad del Monitor se ha considerado con caja Fermax (*) Quitar la etiqueta electrostática de protección. Instalación con CAJA FERMAX (*) Quitar la etiqueta electrostática de protección. Instalación con CAJA UNIVERSAL Pag 7...
Page 8
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit INSTALACIÓN MONITOR SUPERFICIE Dimensiones monitor (Alto x Ancho x Prof .) 197 x 131 x 34,3 mm / 7,7”...
- Configuración de parámetros por menú en pantalla (OSD). - Apertura automática de puerta (Doormatic). - Lift Control. - Ajustes de brillo, contraste y color. • • • • • Para más información del monitor descargar el manual en: www.fermax.com Pag 10...
Page 11
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit PROGRAMACIÓN DEL MONITOR iLOFT ¡El monitor no funcionará mientras no haya sido programado! Opción 1: Desde Placa + Monitor 2 seg.
Page 14
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Apertura automática (Doormatic) La función de apertura automática está por defecto deshabilitada (no disponible al usuario) y debe ser el instalador desde el menú...
Page 15
Los parámetros que modificará serán: - Melodía seleccionada para placa principal. Ding- Dong-Dang. - Melodía seleccionada para placa secundaria. Bitonal Fermax. - Melodía seleccionada para timbre de puerta. Ding- Dong. - Volumen de tono de llamada. Volumen medio de llamada.
Page 16
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit AJUSTES: Video y Audio Ajuste Video: Brillo - Contraste - Color El monitor permite realizar los ajustes de brillo, contraste y color mientras se halla recibido una llamada o realizado un autoencendido y no se halla iniciado la conversación.
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Y con la pulsación de MENU desaparece el menú contextual quedando ajustado el video con los niveles establecidos.
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit ESQUEMA DE CABLEADO (COAX) F1 T A (*) IMPORTANTE 10 Kohm Colocar una resistencia de 10 Kohms entre los bornes + y L del último monitor.
Page 19
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit F1 T A (*) IMPORTANTE 10 Kohm Colocar una resistencia de 10 Kohms entre los bornes + y L del último monitor.
Page 20
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit ESQUEMA DE CABLEADO (5 HILOS / UTP CAT5) F1 T A (*) IMPORTANTE 10 Kohm Colocar una resistencia de 10 Kohms entre los...
Page 21
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit F1 T A F1 T A (*) IMPORTANTE 10 Kohm Colocar una resistencia de 10 Kohms entre los bornes + y L del último monitor.
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit AMPLIACIONES Este Kit puede ser ampliado con dos teléfonos o un monitor adicional sin necesidad de fuentes de alimentación extra.
Page 26
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit 4.-Una vez finalizada la indicación acústica del tiempo actual, o antes de que finalice, pulsar cualquier pulsador de la placa tantas veces como segundos se desee programar (de 1 a 99 segundos).
Gracias a su menú en pantalla se incluyen nuevas prestaciones para la configuración de los parámetros del monitor y el bucle inductivo. Esperamos disfrute de sus funcionalidades. www.fermax.com Pag 27...
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Botón de abrepuertas / llamada a conserje. · Estando en conversación con la Placa de Calle, al pulsar este botón se activa el abrepuertas.
Page 30
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Atender una llamada: Modo manos libres: Al presionar el pulsador de llamada, en la Placa de Calle se produce un tono de llamada tanto en la placa de calle como en el monitor, encendiéndose la pantalla.
Page 33
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Apertura automática (Doormatic) Con el modo de «apertura automática» activado cuando se reciba una llamada desde la placa de calle se activará...
Page 36
VDS iLoft Kit «Video Cityline iLOFT Set» This technical document of an informative nature is published by FERMAX ELECTRONICA S.A.U., which reserves the right to modify characteristics of the products referred to herein at any time and without prior notice. These changes will be reflected in subsequent editions of this document.
131mm 14mm - Depth *: the Monitor depth stated here takes into account the Fermax box (*) Remove the electrostatic protective tag Installation with a FERMAX BOX (*) Remove the electrostatic protective tag Installation with a UNIVERSAL BOX Pag 7...
Page 42
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit MONITOR INSTALLATION SURFACE Monitor Dimensions (Height x Width x Depth) 197 x 131 x 34.3 mm / 7.7”...
- Configuration of parameters for the screen menu (OSD) - Automatic door opening (DOORMATIC) - Lift control - Image adjustments (brightness, contrast and colour) • • • • • For additional information of monitor, download the manual from: www.fermax.com Pag 10...
Page 48
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Automatic Opening (Doormatic) The automatic open function is disabled by default (not availble to the user) and the installer must enable it, if desired, from the administrator menu, accessing the specified option.
Page 49
The parameters changed are: - Selected melody for the main panel. Ding-Dong- Dang. - Selected melody for the secondary panel. Bitonal Fermax. - Selected melody for the doorbell. Ding-Dong. - Call tone volume medium. Call volume - Conversation volume. Medium conversation volume - Image adjustments (brightness, contrast and colour).
Page 50
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit ADJUSTMENTS: Audio + Video Video adjustments: Brightness - Contrast - Colour The monitor allows for the adjustments of brightness, contrast and colour while having received a call or when an auto-start and no conversation has begun.
Page 51
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit And by pressing the MENU, the menu disappears, leaving the video with the established values.
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit WIRING DIAGRAM (COAX) F1 T A (*) IMPORTANT 10 Kohm Set up a 10Kohms resistance between the + and L terminals on the last monitor.
Page 53
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit WIRING DIAGRAM (COAX) F1 T A (*) IMPORTANT 10 Kohm Set up a 10Kohms resistance between the + and L terminals on the last monitor.
Page 54
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit WIRING DIAGRAM (5 WIRES / UTP CAT5) F1 T A (*) IMPORTANT 10 Kohm Set up a 10Kohms resistance between the + and...
Page 55
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit WIRING DIAGRAM (5 WIRES / UTP CAT5) F1 T A F1 T A (*) IMPORTANT 10 Kohm...
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit EXTENSIONS This Kit can be extended with two telephones or an additional monitor without the need for extra power supplies.
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit TECHNICAL FEATURES Power Supply 18 Vdc Consumption 57 mA on standby 180 mA with video with audio and video...
Page 60
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit 4.- Once these indicator tones have concluded, or before they conclude, press any button on the panel, with one press for each second to be programmed (from 1 to 99 seconds).from the residence or following the indicator tones), wait 5 seconds before taking any other action.
With the onscreen menu you have new features to configure the monitor´s parameters and induction loop. We hope you enjoy its range of functions. www.fermax.com. Pag 27...
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Lock Release / Call Guard Unit Button · Pressing this button whilst communicating with the Entry Panel will activate the lock release.
Page 64
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit Answering a call Hands free mode: When the call button on the Entry panel is pressed a call tone is emitted both from the panel and on the monitor, causing the screen to start up.
VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit VDS iLoft Kit PROGRAMMING: USER Menu Access the User Menu 1º. To enter in the User menu press «Menu» for 1 second. Confirmation key Scroll keys in the menus ¸...
