Diamond CS0 E Instructions For Use And Installation

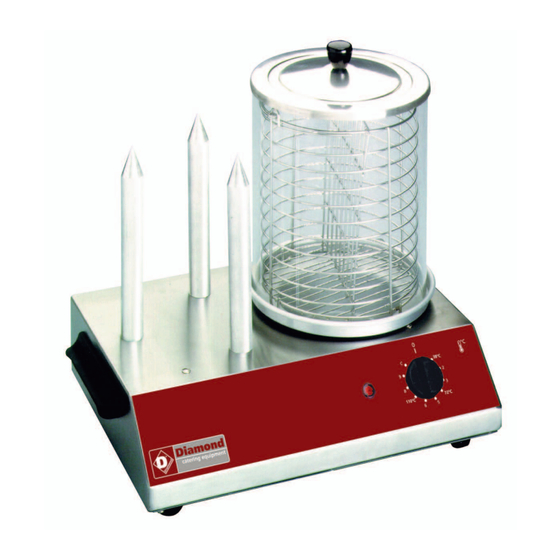

Hot dog machines
Hide thumbs Also See for CS0 E:
Table of Contents

Advertisement

Quick Links

Download this manual
02/2016
Mod: STAR-HD/R
Production code: CS 3 E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS0 E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Diamond CS0 E

Summary of Contents for Diamond CS0 E

  • Page 1 02/2016 Mod: STAR-HD/R Production code: CS 3 E...
  • Page 2 INSTRUCTIONS FOR USE AND INSTALLATION HOT DOG MACHINES CS0 E / CS2 E / CS3 E / CS4 E / HD 4 Made in France Mai 2015...
  • Page 3 HOT DOG MACHINES CS0 E / CS2 E / CS3 E / CS4 E / HD 4 Congratulations for the acquisition of this upmarket appliance made in France. You chose an appliance which alloys the best technical qualities with a big user- friendliness.

  • Page 4: Contents Of Cardboard Packaging

    - Do not use the appliance for other functions than determined use. - Do not leave the cord of electrical feeding in the contact of hot surfaces. - The appliance should not be used close to combus- tible materials. - During use, look after not to obstruct hearings of aeration of the appliance.

  • Page 5: Way Of Functioning

    4. WAY OF FUNCTIONING The hot dog machine HD 4 is available with only 4 heating pins. The model CS 0 E is available without any heating pins but with a water container. The others models are fitted with a heated container for cooking and keeping hot dogs in a damp atmosphere created by means of the water poured in the water tank.

  • Page 6: First Cleaning

    5. FUNCTIONING / MANIPULATION a) Installation / assembly: - Unpack carefully the device of its packaging. - Place the hot dog machine on a plane and heatproof surface. - Never place the device near a wall or near a partition makes of combustible materials even if it is very well isolated.

  • Page 7: Temperature Setting

    Putting on Turn on the power control knob (n°2 on picture) on the wished position: the or- ange pilot light (n°1 on picture) ignites. For a quick preheating, set the power control knob on maximum position. Once orange pilot light (n°1 on picture) is off, the machine reached the wished temperature.

  • Page 8: Technical Specifications

    7. TECHNICAL SPECIFICATIONS CS0 E CS 2 E CS3 E CS4 E HD 4 Models Outside dimen- 260x380x400 260x380x400 440x300x400 440x300x400 260x380x300 sions mm Weight 7 kg 8 kg 10 kg 10 Kg 6 Kg Power 500 W 500 W...

  • Page 9: Conditions Of Guarantee

    For any information about the collection of electric and electronic waste, please con- tact your distributor. 10. GUARANTEE Conditions of guarantee The guarantee applicable to any device is the commercial guarantee of the distribu- tor or the retailer. Please contact the store where you bought your device to know the precise conditions.
  • Page 10 PHASE NEUTRE / NEUTRAL TERRE / EARTH ORANGE INFINITE / ENERGY-REGULATOR RESISTANCE / HEATING ELEMENT C02216 Câblage : CS 0 E Schéma électrique Approuvé par : Date : Dessiné par : Date : Indice DT42 C.Gu 26/11/2014 26/11/2014 S.Grenon...
  • Page 11 SCHEMA PHASE NEUTRE / NEUTRAL TERRE / EARTH ORANGE INFINITE / ENERGY-REGULATOR RESISTANCE / HEATING ELEMENT C02216 Câblage : CS 2 E Schéma électrique Approuvé par : Date : Dessiné par : Date : Indice DT43 C.Gu 27/11/2014 27/11/2014 S.Grenon...
  • Page 12 PHASE NEUTRE / NEUTRAL TERRE / EARTH ORANGE INFINITE / ENERGY-REGULATOR RESISTANCE / HEATING ELEMENT C02015 Câblage : CS 3 E Schéma électrique Approuvé par : Date : Dessiné par : Date : Indice DT41 C.Gu 25/11/2014 25/11/2014 S.Grenon...
  • Page 13 PHASE NEUTRE / NEUTRAL TERRE / EARTH ORANGE INFINITE / ENERGY-REGULATOR RESISTANCE / HEATING ELEMENT C02015 Câblage : CS 4 E Schéma électrique Approuvé par : Date : Dessiné par : Date : Indice DT45 C.Gu 03/12/2014 03/12/2014 S.Grenon...
  • Page 14 PHASE NEUTRE / NEUTRAL ORANGE TERRE / EARTH INFINITE / ENERGY-REGULATOR RESISTANCE / HEATING ELEMENT C02216 Câblage : HD 4 Schéma électrique Approuvé par : Date : Dessiné par : Date : Indice DT46 C.Gu 03/12/2014 03/12/2014 S.Grenon...
  • Page 15 CODE PIECE SPARE PART 39001 SUPPORT PLAQUE ALU CHAUFFE SAUCISSES ALUMINIUM PLATE HOLDER CS 46073 PROTECTION INT HD 2B/HD 4N/HD 6 INSIDE PROTECTION HD 2B/HD 4N/HD 6 46074 SERRE RESISTANCE HD 2B/HD 4N/HD 6 ELEMENT HOLDER HD 2B/HD 4N/HD 6 46075 FOND SOCLE HD 2B/HD 4N/HD6 BOTTOM CASING HD 2B/HD 4N/HD6...
  • Page 16 F05051 F04012 F05009 F05022 A15016 A08003 A14111 G06P04022 A15016 46076 A10001 A04006 C03P04022 39001 F05026 D02029 C04007_115 C04007_95 46074 46073 46075 A13003 CS 0 E Vue éclatée Approuvé par : Date : Dessiné par : Date : Indice DT42 C.Gu 26/11/2014 26/11/2014 S.Grenon...
  • Page 17 CODE PIECE SPARE PART 39001 SUPPORT PLAQUE ALU CHAUFFE SAUCISSES ALUMINIUM PLATE HOLDER CS 46070 CAISSON HD 2B CASING HD 2B 46073 PROTECTION INT HD 2B/HD 4N/HD 6 INSIDE PROTECTION HD 2B/HD 4N/HD 6 46074 SERRE RESISTANCE HD 2B/HD 4N/HD 6 ELEMENT HOLDER HD 2B/HD 4N/HD 6 46075 FOND SOCLE HD 2B/HD 4N/HD6...
  • Page 18 F05051 F04012 F05009 F05010 F05022 A15016 A08003 A14111 G06P04023 A15016 46070 A10001 A04006 C03P04023 39001 F05026 D02029 C04007_115 C04007_95 46074 46073 46075 A13003 CS 2 E Vue éclatée Approuvé par : Date : Dessiné par : Date : Indice DT43 C.Gu 27/11/2014 27/11/2014...
  • Page 19 CODE PIECE SPARE PART 46001 CAISSON CS 3 PLOTS CASING CS 3 46002 FOND DE SOCLE CS 2/3/4/0 PLOTS BOTTOM CASING CS 2/3/4/0 PLOTS 46003 BOITE RESISTANCE CS 2/3/4/0 PLOTS HEATING ELEMENT BOX CS 2/3/4/O A04006 REGULATEUR REGULATOR A08003 VOYANT ORANGE DIAM 12 ORANGE PILOT LIGHT DIAM 12 A10001 SERRE CABLE PA 107...
  • Page 20 F05051 F04012 F05009 F05010 F05022 A15016 A08003 A14111 G06P04020 A04006 46001 A10001 F05024 A15016 D02001 C03P04020 46003 H02026 46002 A13003 CS 3 E Vue éclatée Approuvé par : Date : Dessiné par : Date : Indice DT41 C.Gu 25/11/2014 25/11/2014 S.Grenon...
  • Page 21 CODE PIECE SPARE PART 46002 FOND DE SOCLE CS 2/3/4/0 PLOTS BOTTOM CASING CS 2/3/4/0 PLOTS 46003 BOITE RESISTANCE CS 2/3/4/0 PLOTS HEATING ELEMENT BOX CS 2/3/4/O 46020 CAISSON CS 4 PLOTS CASING CS 4 A04006 REGULATEUR REGULATOR A08003 VOYANT ORANGE DIAM 12 ORANGE PILOT LIGHT DIAM 12 A10001 SERRE CABLE PA 107...
  • Page 22 F05051 F04012 F05009 F05010 F05022 A15016 A08003 A14111 G06P04021 A04006 46020 A10001 F05024 A15016 D02001 C03P04021 46003 H02026 46002 A13003 CS 4 E Vue éclatée Approuvé par : Date : Dessiné par : Date : Indice DT45 C.Gu 03/12/2014 03/12/2014 S.Grenon...
  • Page 23 CODE PIECE SPARE PART 39001 SUPPORT PLAQUE ALU CHAUFFE SAUCISSES ALUMINIUM PLATE HOLDER CS 46071 CAISSON HD 4N CASING HD 4N 46073 PROTECTION INT HD 2B/HD 4N/HD 6 INSIDE PROTECTION HD 2B/HD 4N/HD 6 46074 SERRE RESISTANCE HD 2B/HD 4N/HD 6 ELEMENT HOLDER HD 2B/HD 4N/HD 6 46075 FOND SOCLE HD 2B/HD 4N/HD6...
  • Page 24 F05010 A15016 A08003 A14111 G06102 A15016 46071 A10001 A04006 C03P04024 39001 F05026 D02029 C04007_115 C04007_95 46074 46073 46075 A13003 HD 4 Vue éclatée Approuvé par : Date : Dessiné par : Date : Indice DT46 C.Gu 03/12/2014 03/12/2014 S.Grenon...

This manual is also suitable for:

Cs2 eCs3 eCs4 eHd 4
