Chicago Pneumatic CP 0012 Safety And Operating Instructions Manual

Handheld pneumatic pick hammers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SAFETY AND OPERATIONS INSTRUCTIONS FROM:
PLEASE READ THIS INFORMATION CARFULLY PRIOR TO
OPERATING EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP 0012 and is the answer not in the manual?

Questions and answers

Related Manuals for Chicago Pneumatic CP 0012

Summary of Contents for Chicago Pneumatic CP 0012

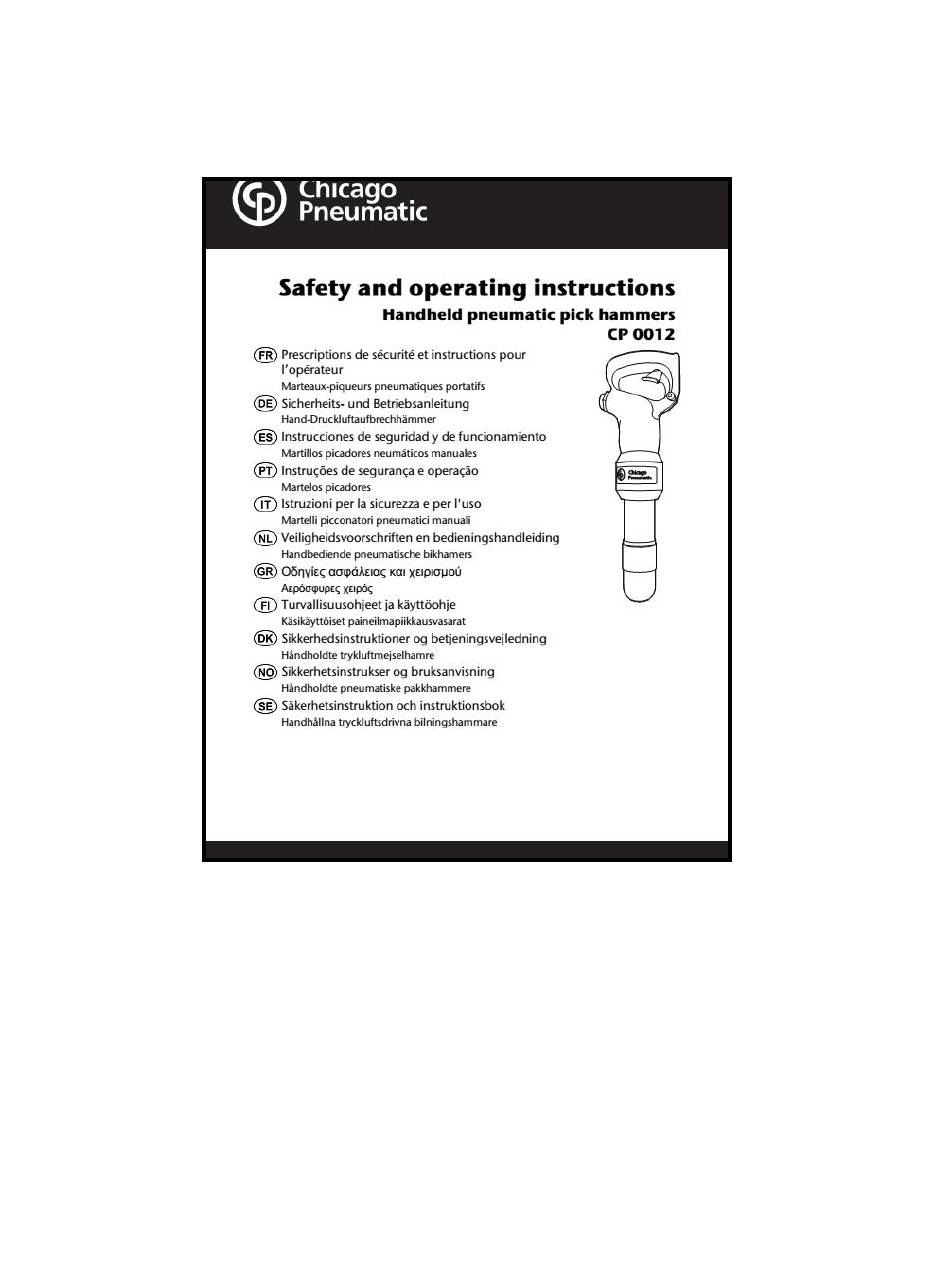

  • Page 1 SAFETY AND OPERATIONS INSTRUCTIONS FROM: PLEASE READ THIS INFORMATION CARFULLY PRIOR TO OPERATING EQUIPMENT...

  • Page 2: Table Of Contents

    Contents CP 0012 ENGLISH Contents Introduction............... 5 About the Safety and operating instructions.

  • Page 3: Introduction

    CP 0012 Safety and operating instructions Introduction Thank you for choosing Chicago Pneumatic brand products. For over a century, the Chicago Pneumatic brand has represented performance and innovation in the pneumatic tool industry. Today the brand is found around the world on a range of pneumatic and hydraulic tools that includes breakers, rock drills, chipping hammers, clay-diggers, picks and busters, scabblers, pumps and a whole lot more.

  • Page 4: Safety Instructions

    Safety and operating instructions CP 0012 Drugs, alcohol or medication Safety instructions WARNING Drugs, alcohol or medication To reduce the risk of serious injury or death to Drugs, alcohol or medication may impair your yourself or others, read and understand the Safety judgment and powers of concentration.

  • Page 5: Operation, Precautions

    CP 0012 Safety and operating instructions ► Make sure that the insertion tool is fully inserted ► Never ‘ride on the machine with one leg over the and the tool retainer is in a locked position before handle. the machine is started.
  • Page 6 Safety and operating instructions CP 0012 ► If the machine has an exhaust, direct the exhaust WARNING Projectiles so as to reduce disturbance of dust in a dust filled Failure of the work piece, of accessories, or even of environment.
  • Page 7 CP 0012 Safety and operating instructions ► Participate in health surveillance or monitoring, WARNING Vibration hazards medical exams and training programs offered by Normal and proper use of the machine exposes the your employer and when required by law. operator to vibration. Regular and frequent exposure to vibration may cause, contribute to, or aggravate ►...

  • Page 8: Maintenance, Precautions

    Safety and operating instructions CP 0012 WARNING Noise hazard High noise levels can cause permanent and disabling hearing loss and other problems such as tinnitus (ringing, buzzing, whistling or humming in the ears). To reduce risk and prevent an unnecessary increase in noise levels: ►...

  • Page 9: Overview

    Design and function These instructions are valid for the CP 0012. The CP 0012 is a machine with a D-handle, designed for light demolition and plant work. The machine can be used both horizontally and vertically. No other use is permitted.

  • Page 10: Installation

    Safety and operating instructions CP 0012 Data plate Installation Hoses and connections Machine type Maximum permitted compressed air pressure Compressed air source Serial number Water separator (optional) The warning symbol together with the book symbol means that the user must read the...

  • Page 11: Connecting A Water Separator

    CP 0012 Safety and operating instructions Selecting the right insertion tool Connecting a water Selecting the right insertion tool is a precondition separator for proper machine function. It is important to select insertion tools of high quality to avoid unnecessary The length of the air hose between the compressor machine damage.

  • Page 12: Operation

    Stop the machine immediately in all cases of ► CP 0012, Rd. 0.680 and H 0.580 power supply interruption. Start and stop 1. Slide the retainer over the chisel. 2. Rotate and lock the chisel into the retainer.

  • Page 13: When Taking A Break

    CP 0012 Safety and operating instructions Breaking Every day Let the machine do the work; do not press too ♦ hard. Before undertaking any maintenance or changing the insertion tool on pneumatic machines, always ♦ Avoid working in extremely hard materials for...

  • Page 14: Tightening Torques

    Safety and operating instructions CP 0012 Tightening torques Storage > Clean the machine properly before storage, in order to avoid hazardous substances. See “Dust and fume hazard” > Pour approximately ⁄ oz (5 cl) of oil directly into the air inlet nipple, connect the machine to the compressed air supply and start it for a few seconds.

  • Page 15: Technical Data

    Machine data Shank Air Consumption dimension Weight Length foot /min Impact freq. Type (mm) (kg) (mm) (l/s) CP 0012 H19 ⁄ (5.5) (406) (9.5) (19 x 50) CP 0012 2R Rd 0.680 (17.3) (5.5) (406) (9.5) CP 0012 2H H 0.580 (14.7)

  • Page 16: Ec Declaration Of Conformity

    Safety and operating instructions CP 0012 EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Atlas Copco Construction Tools AB, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below.
