Operator's Manual
CP714

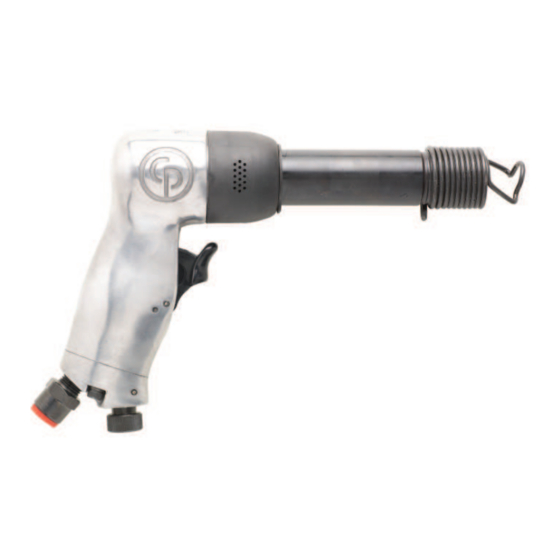

Air Hammer
WARNING
To reduce risk of injury, everyone using, installing, repairing, maintaining,
changing accessories on, or working near this tool must read and
understand these instructions, as well as separately provided safety
instructions part number 6159948780, before performing any such task.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chicago Pneumatic CP714K
Summary of Contents for Chicago Pneumatic CP714K
- Page 1 Operator’s Manual CP714 Air Hammer WARNING To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool must read and understand these instructions, as well as separately provided safety instructions part number 6159948780, before performing any such task.
-
Page 2: Air Diagram
Air Diagram: Fig. 1 Fig. 2 Vibrations Air Consumption Sound pressure Soundpower Blows per Dimension Inner Hose Weight Bore & stroke Power Air Inlet minute Dia. Average at load Model [inch] [inch] [kg] [l/min] [l/min] [inch] [ Joule] [inch] [dB(A)] [dB(A)] [m/s²] [m/s²] [mm]... - Page 3 : EN ISO 11148-4:2012 Name and position of issuer :Nicolas Lebreton (R&D Manager) Place & Date : Saint-Herblain, 04/06/2015 Original Instructions are in English. Other languages are a translation of the original instructions. Copyright 2015, Chicago Pneumatic Tool Co. LLC...
-
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY PNEUMATIC HAMMER declare that the product(s): Machine type(s) : CP714, CP717 ZIP, CP0951, CP0952, CP9356-NS, CP9356-WF Serial number: See on the tool document Origin of the product : Japan is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to "Machinery"... -
Page 5: Vibration Levels
DECLARATION OF CONFORMITY (Fr) DECLARATION DE CONFORMITE Vibration levels SCALER, HAMMER ISO 28927-9 ISO8662-14 ISO 15744 (3 axis) (1 axis) Part # Models K m/s dB(A) dB(A) T012735 CP714 13,2 T020120 CP717 20,4 T022306 CP0951 T019191 CP0952 15,4 T022165 CP9356-NS 17,3 10,9 T021959... - Page 6 CP714 Air Hammer 135,138 Item Item Parts No. Description Parts No. Description CA091545 Cap-Throttle CA046691 Regulator (Incl: Index No. 127) CA046590 Screen-Air C102551 O-Ring (-012) A117360 Spring-Throttle Valve Defl ector-Exhaust Assy. (Incl: Index Nos. P070554 136, 137, 138) A050261 Valve-Throttle A050262 Stem-Throttle Valve S086833...
-
Page 7: Safety Instructions
SAFETY INSTRUCTIONS • DO NOT DISCARD - GIVE TO USER • Our goal is to produce tools that help you work safely and efficiently. Operating hazards The most important safety device for this or any tool is yOU. your care •... - Page 8 particles. this type of work. • some dust created by power sanding, sawing, grinding, drilling and • To reduce your exposure to these chemicals: work in a well ventilated area, other construction activities contains chemicals known to the state of and work with approved safety equipment, such as dust masks that are california to cause cancer and birth defects or other reproductive harm.
