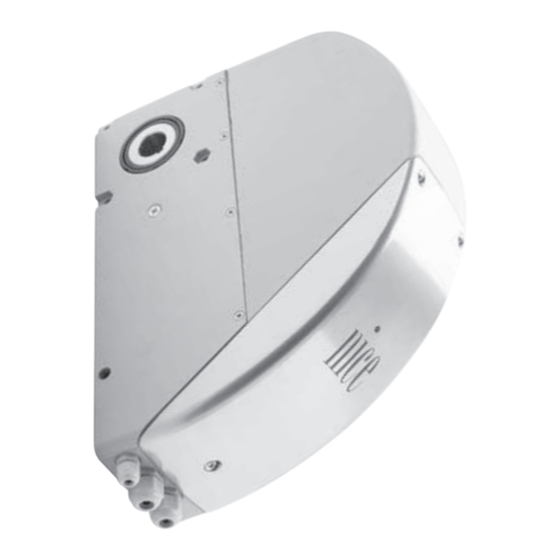

sumo
Instructions and warnings for the fitter
istruzioni ed avvertenze per l'installatore
Instructions et recommandations pour l'installateur
Anweisungen und Hinweise für den Installateur
Instrucciones y advertencias para el instalador
Instrukcja instalowania
Advertisement
Table of Contents
Related Manuals for Nice sumo
Summary of Contents for Nice sumo
- Page 1 Instructions and warnings for the fitter istruzioni ed avvertenze per l’installatore Instructions et recommandations pour l’installateur Anweisungen und Hinweise für den Installateur Instrucciones y advertencias para el instalador...
-
Page 2: Table Of Contents
Nice declines all liability for badly built sectional doors or any system installation phases. Please read these instructions and the deformations that may occur during use. -
Page 3: Product Description
SUMO must power a door (sectional or two- In particular, check that: wing) which must be in good condition and safe; it cannot make up the door does not stick when opening or closing;... -
Page 4: Installing Sumo (Standard Procedure)
- After fixing the brackets to the wall, the slots allow the position of manoeuvre could not be performed safely and easily; SUMO to be adjusted in order to ensure the chain is fairly taut. - the level of transmitted torque is required to be increased with a Tighten the screws to complete fixing. -
Page 5: Electrical Connections
Tighten the cable holder to prevent the cables from being torn from operation. the terminal board. (Please consult figs. 12-12a) Close SUMO by screwing up the 3 screws of the cover with a Philips Thread the power cable and the encoder cable respectively through screwdriver. -
Page 6: Manual Manoeuvre Or Release
Not only does regular maintenance offer longer life, but also correct and safe system operation. 6.1) Disposal SUMO comprises various types of materials which must be disposed There are no particular dangers or risks deriving from demolition of of in compliance with the laws of the country of installation. -
Page 7: Technical Specifications
7) Technical specifications SUMO 2000 SUMO 2010 Irreversible 24Vdc gear motor with encoder and local and cable Irreversible 24Vdc gear motor with encoder, local and cable release release devices. devices and sheath. Protected to IP44. Protected to IP66. Torque 120Nm and 7.5÷16rpm (6)* Torque 120Nm and 7.5÷16rpm (6)*... -
Page 8: Instructions And Warnings For Users Of The Sumo Gear Motor
Nice however, is not the producer of your automated system as this is handbook that the fitter will have given you. Keep this manual for... - Page 9 To do this, perform the manual release operation: gate once the gear motor has been released as described further on. this can be done by the user and Nice has made it as easy as • Maintenance. Just like all machines, your automated system possible, without the need for tools or physical effort.
- Page 10 SU2000 SU2010...
- Page 11 18 ÷ 245mm 73 ÷ 300mm 28,4mm 15 ÷ 95mm 70 ÷ 150mm...
- Page 14 rif. SU2000 SU2010 BMGSUA 34567 BMGSUB 34567 BMGSUC 14567 BMGSUD 34567 BMGSUE 4567 BMGSUF 4567 BMGSUG 4567 BMGSUH 4567 PMD0272 4610 PMD0273 4610 PMD0274 4610 CRA1 CRA6 Z36 PMD0278 4610 PMD0279 4610 PMD0339 4610 PPD0276 4610 PPD0277 4610 MICROI-C 1617 MMCOI 2620 MO-C 2640 MO-Q 2640...
- Page 15 SU2010...
- Page 16 Indirizzo / Address: Via Pezza Alta 13, 31046 Z.I. Rustignè - ODERZO - ITALY Tipo / Type: Attuatore elettromeccanico “SUMO” 24Vcc per porte sezionali 24 Vdc “SUMO” electromechanical gear motor for sectional doors Modello / Model: SU2000, SU2010 Accessori / Accessories:...
