www.aotewell.com sales04@aotewell.com Installation Instructions Logic Module, Internal CompactFlash, and RAM Catalog Numbers 2711P-Rxxxx Topic Page About the Components Important User Information Safety Precautions About the Logic Module Electrostatic discharge (ESD) wristband Install or Replace RAM Install or Replace the Internal CompactFlash Marine Applications Install a Logic Module Replace a Logic Module...
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
Logic Module, Internal CompactFlash, and RAM Safety Precautions Before installing or replacing components and modules, disconnect power from the terminal. During the installation, be careful not to touch any of the exposed electronic components. Disconnect all power from the terminal before installing or replacing any components. SHOCK HAZARD Failure to disconnect power may result in electrical shock or damage to the terminal.
Page 4

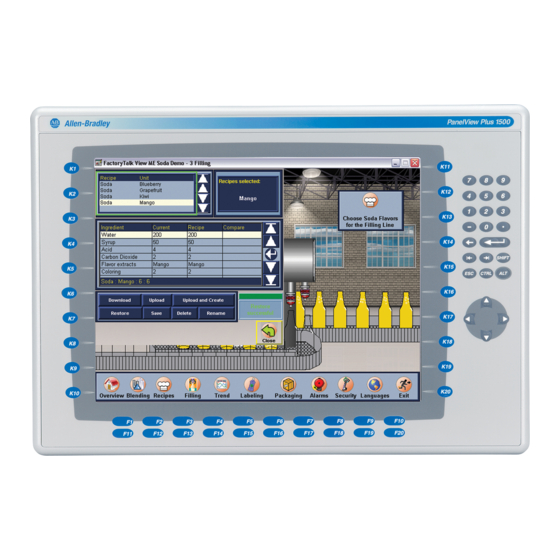

Description PanelView Plus or PanelView Plus CE 700 to 1500 Logic Modules 2711P-RP Logic module without flash/RAM memory, DC input 2711P-RPA Logic module without flash/RAM memory, AC input 2711P-RPD Logic module without flash/RAM memory, isolated DC input PanelView Plus 700 to 1500 Logic Modules...
Logic Module, Internal CompactFlash, and RAM Required Tools The following tools are required for installation: • #1 and #2 Phillips screwdriver • Electrostatic discharge (ESD) wristband Component Compatibility for PanelView Plus CE Terminals It is important to match the series of the internal CompactFlash card with the correct series of the logic module and software version.
Page 6
Logic Module, Internal CompactFlash, and RAM Component Compatibility for PanelView Plus Terminals It is important that you match the series of the internal CompactFlash card with the correct series of the logic module and software version. The series of the CompactFlash determines the version of FactoryTalk View ME software.
Logic Module, Internal CompactFlash, and RAM Install or Replace RAM The logic module is available with or without RAM installed. If ordered separately, you must install the RAM before attaching the logic module to the display module. RAM Memory Modules Cat.
512 MB internal CompactFlash with FactoryTalk View ME software for PanelView Plus CE logic modules The 2711P-RP, 2711P-RPD, and 2711P-RPA logic modules are compatible with any of the internal CompactFlash options. Follow these steps to replace the internal CompactFlash. 1. Turn the logic module over to expose the circuit board.
Page 9
Logic Module, Internal CompactFlash, and RAM Battery Precautions When you connect or disconnect the battery, an electrical arc can occur. This could cause WARNING an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding. For safety information on the handling of lithium batteries, including handling and disposal of leaking batteries, see Guidelines for Handling Lithium Batteries, publication 5-4.
Page 10
Logic Module, Internal CompactFlash, and RAM 6. Locate the battery on the circuit board. Lift up the edge of the battery indicated by the arrow. 7. Remove the battery by lifting up the side of the battery. 8. Insert the new battery. 9.
Logic Module, Internal CompactFlash, and RAM Ethernet Cable Use Belden 7921A shielded Ethernet Category 5e cable according to TIA 568-B.1 and RJ45 connector according to IEC 60603-7 for compliance with Marine emissions limits and European Union 89/336/EEC EMC Directive. The maximum cable length between the terminal’s Ethernet port and a 10/100 Base-T port on an Ethernet hub (without repeaters or fiber) is 100 m (328 ft).
Logic Module, Internal CompactFlash, and RAM Install a Logic Module If the display module and logic module are ordered as separate components, attach the logic module to the display module before panel installation. 1. Disconnect power from the terminal. 2. Set the display module of the terminal display-side down on a clean, flat, stable surface to avoid scratches.
www.aotewell.com sales04@aotewell.com Logic Module, Internal CompactFlash, and RAM Replace a Logic Module Before replacing the logic module, you must remove the communication module, if attached. Remove the internal CompactFlash card and RAM from the logic module if you want to reuse the memory in the new logic module.
PanelView Plus and PanelView Plus CE terminals. publication 2711P-TD001 You can view or download publications at http://literature.rockwellautomation.com. To order paper copies of technical documentation, contact your local Rockwell Automation distributor or sales representative. www.aotewell.com sales04@aotewell.com Publication 2711P-IN004J-EN-P - September 2009...
Page 15
Logic Module, Internal CompactFlash, and RAM Notes: www.aotewell.com sales04@aotewell.com Publication 2711P-IN004J-EN-P - September 2009...
Page 16
Please contact your local Rockwell Automation representative for the return States procedure. PanelView Plus, PanelView Plus CE, RSView ME, FactoryTalk View, Allen-Bradley, Rockwell Automation, and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
