Visonic PowerMax Pro Installation Instructions page 2

2. SPECIFICATIONS 2. SPECIFICATIONS 2. SPECIFICATIONS 2. SPECIFICATIONS
Number of Outputs: 5
Output Type: Solid State Relay – dry contact.
Predefined Output State: N.O. or N.C. programmable (by DIP switch).
Maximum Load Current: 100 mA
Maximum Peak Current: 350 mA @10 ms
3. 3. 3. 3. MOUNTING AND WIRING MOUNTING AND WIRING MOUNTING AND WIRING MOUNTING AND WIRING
In the PowerMax Pro, PowerMaxComplete, PowerMaster-30 G2 and PowerMaster-33 G2 control panels, press the PGM-5 module into the
marked location (see Figures 4a, 4b and 4e) until a click is heard.
In the PowerMaxExpress and PowerMaster-10 G2 control panels, use the two screws to fasten the PGM-5 module into the marked location, as
illustrated in Figure 4c and 4d.
Front unit
Back unit
* It is strongly recommended to route the cable as shown to prevent interference which may occur if routed too close to the control panel's antennas.
Front unit
Back unit
* It is strongly recommended to route the cable as shown to prevent interference which may occur if routed too close to the control panel's antennas.
2
POWERMAX PRO
PGM-5
Wiring*

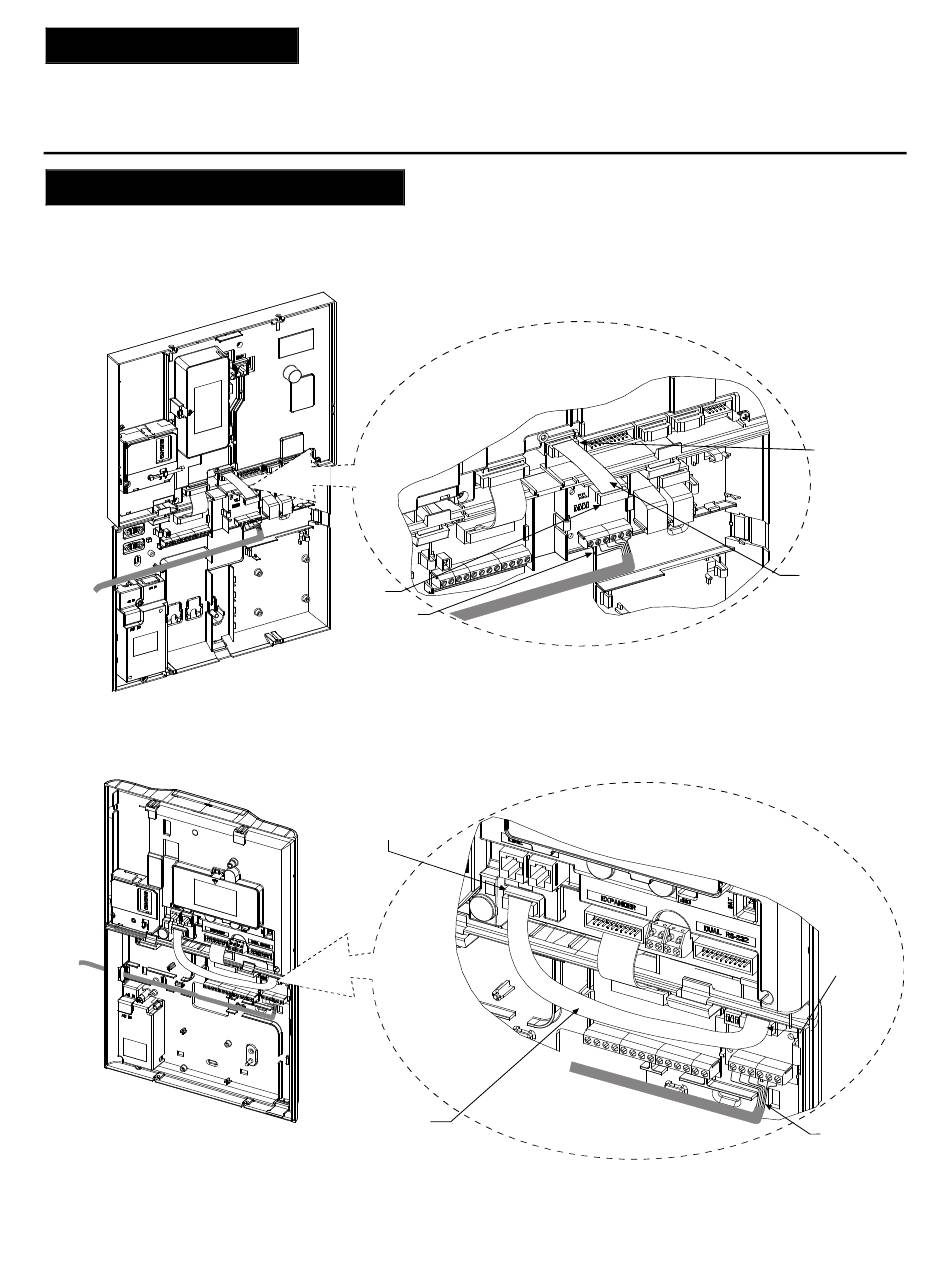

Figure 4a – PGM-5 Mounting and Wiring in PowerMax Pro Control Panel
POWERMAXCOMPLETE
PowerMaxComplete
BBA Connector
Flat cable
Figure 4b – PGM-5 Mounting and Wiring in PowerMaxComplete Control Panel
Output Resistance R : 16Ω max. @I
ON
N.O. Leakage Current: <1 uA
Maximum Load Voltage: 15 V
Operating Temperatures: 0°C to 50°C (32°F to 122°F)
Compliance with Standards: EN 50130-4
Connect one side of the flat cable
into the PGM-5 connector and the
other side into the PowerMax Pro
PC connector
Connect one side of the flat cable into the
PGM-5 connector and the other side into the
PowerMaxComplete BBA connector
D-302182 PGM-5 Installation Instructions
= 100 mA
L
PowerMax Pro
PC Connector
Flat cable
PGM-5
Wiring*
