i-ALERT® Gateway Installation Guide

2.3 Mounting Options

The gateway is shipped with mounting ears and has an optional poll mounting bracket
2.3.1

Wall Mounting

The mounting ears are shown in 5. Each mounting ear is attached with two flat head screws (item#5).
Figure 6 provides information on the mounting hole pattern. The gateway should be mounted vertically
as shown in Figure 8.

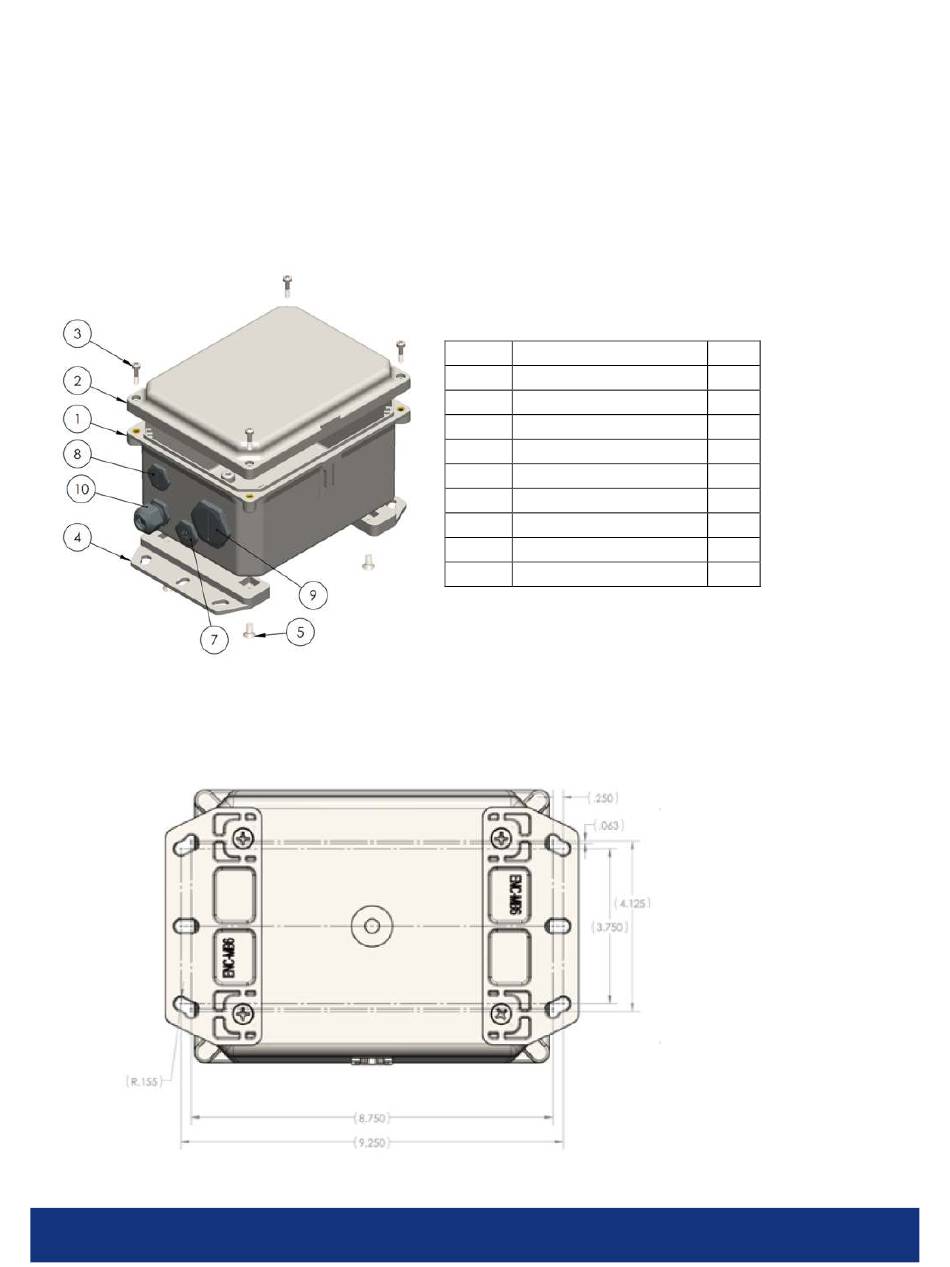

Figure 5: Gateway Assembly
Figure 6: Gateway Back plate Mounting Diagram
Item Description
1 IP68 Enclosure
2 IP68 Cover
3 Cover Screws
4 Mounting Ears
5 Mounting Ear Screws
7 Air Vent
8 Blank Plug
9 SIM Plug
10 Power Cable Gland
Qty
1
1
4
2
4
1
1
1
1
