i-ALERT® Gateway Installation Guide
2.2 Powering the Gateway
2.2.1 AC Powered Gateway
The i-ALERT® AC Gateway is by default shipped with a 110 VAC/240 VAC cord separately. This gives the
user the option to hardwire the Gateway or to use the provided 110 VAC/240 VAC cord. When using the
standard plug-in cord, the rating is no longer classified as C1D2. Please consult standards pertaining to
the installation location when powering by this method. Once wired and powered into a 110 VAC/240
VAC outlet or hardwired it will discover and begin communicating with all i-ALERT2® sensors and posting
data to the ITT AI Platform®.

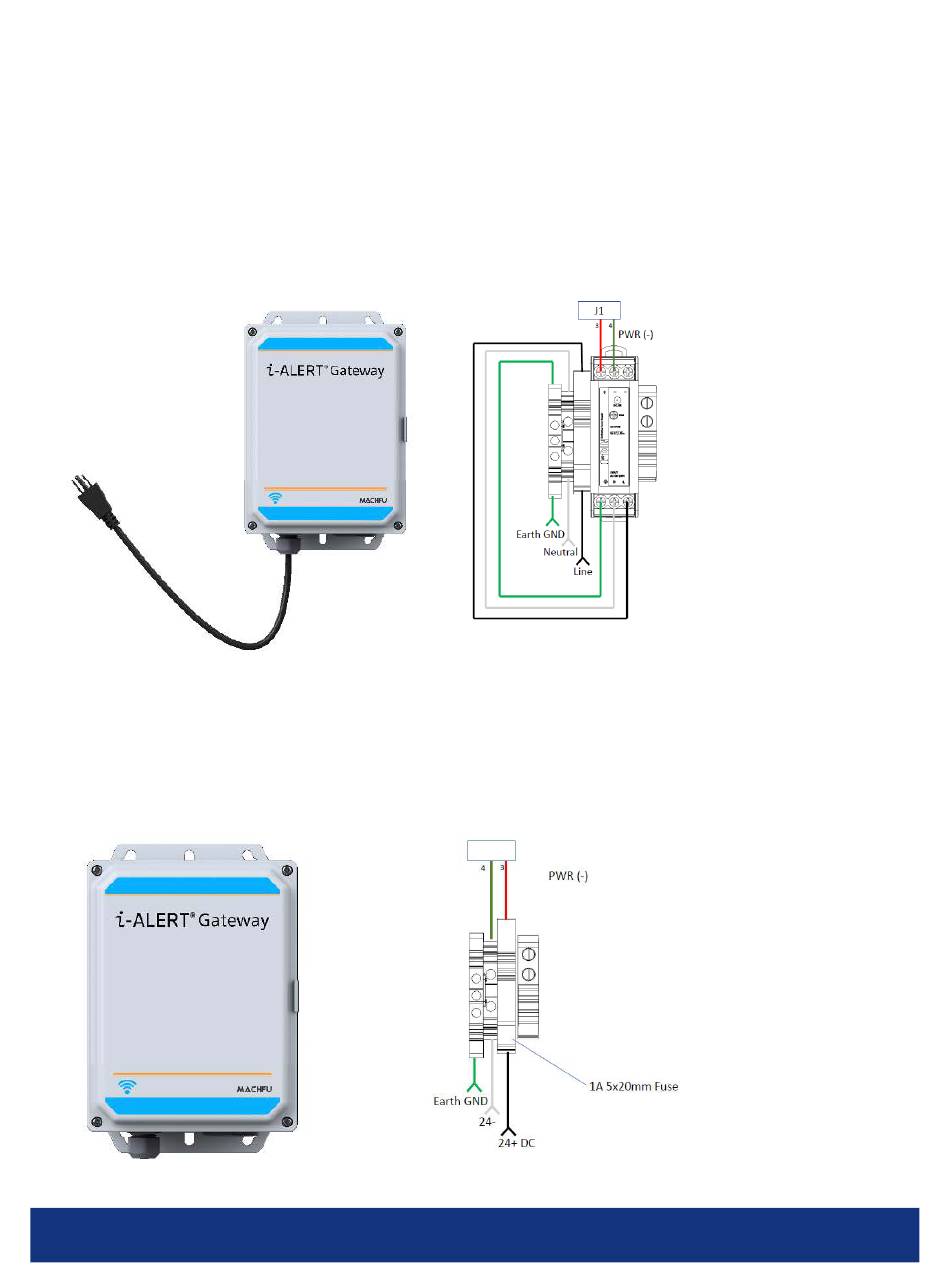

Figure 2: i-ALERT2® 120VAC-24VAC option
2.2.2 9-60 VDC Powered Gateway
The gateway can be optionally ordered to be powered from 9-60VDC. When powered in this way, the
unit is wired as shown in Figure . Once powered the gateway will discover and begin communicating
with all i-ALERT2® sensors and posting data to the ITT AI Platform®.
Figure 3: i-ALERT2® Optional 9-60 VDC Wiring
