i-ALERT® Gateway Installation Guide
2.3.2 Pole Mounting
The i-ALERT® Gateway can be modified to be mounted with an optional pole mount bracket kit as shown
in Figure . The pole mount kit can be used with poles of diameter of 2 inches to 12 inches.
To mount the bracket to the gateway, remove the mounting ears by removing the screws (4 X item #5,
Figure ). Then attach the brackets using the four screws (item #6) and washers (item #7) as shown in
Figure

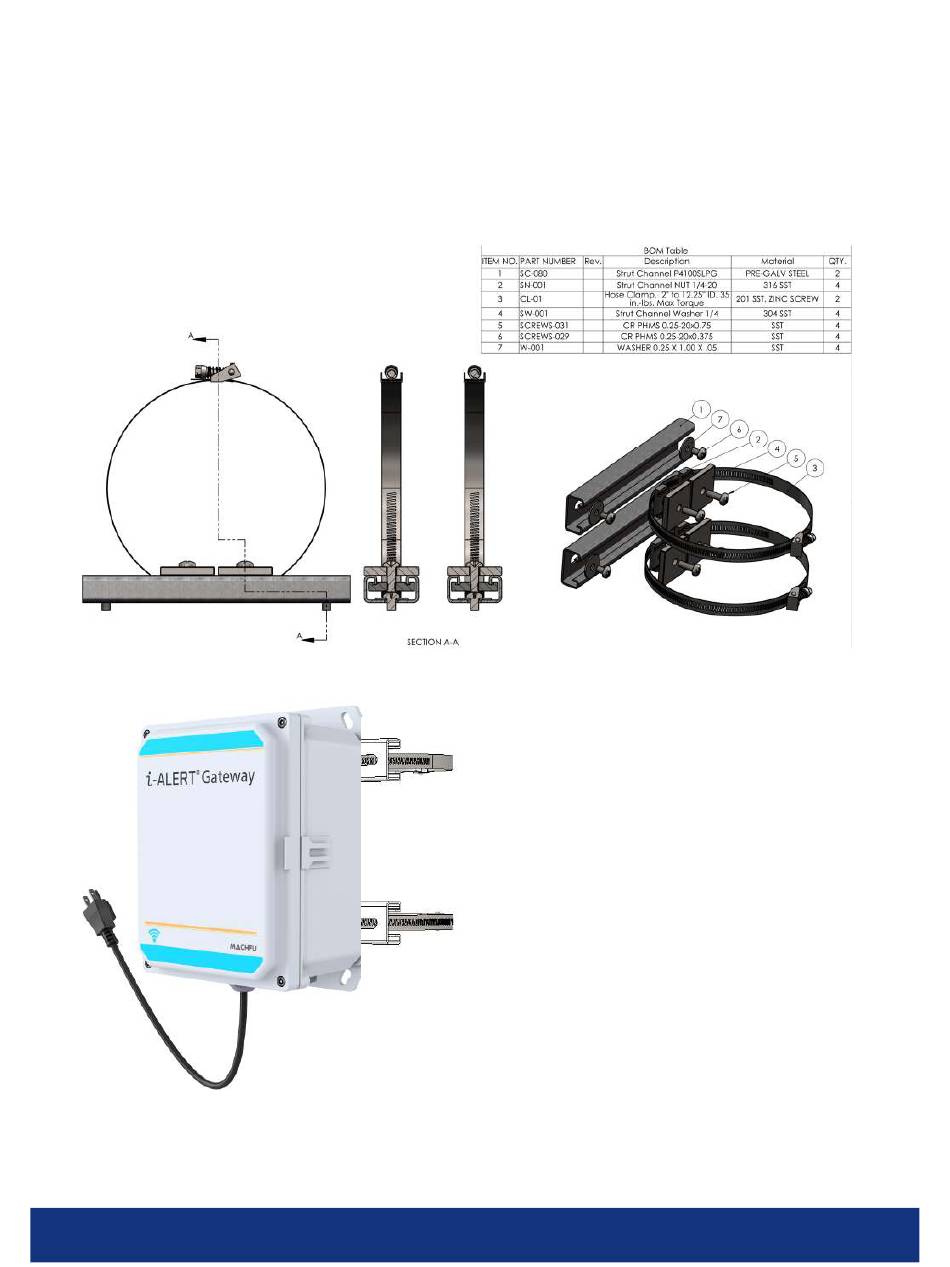

Figure 7: Pole Mount Bracket Kit
.
Figure 8: Gateway with pole mount bracket
9/13
