Summary of Contents for Samson AirLine Micro Earset

  • Page 1 Owner’s Manual...
  • Page 2 By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2019, Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...

  • Page 3: Important Safety Information

    Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. AirLine Micro Earset...
  • Page 4 Important Safety Information Unplug the apparatus during lightening storms, or when unused for long periods of time. Refer all servicing to qualified personnel. Service is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 5 AT, BE, CH, CY, CZ*, DK, EE, FI*, FR*, DE*, GR*, HU, IE, IS, IT, LV, LT*, LU, MT*, NL, NO*, PL* PT, RO, SK, SI, ES, SE, UK *Subject to license. Please contact your national frequency authority for information on available legal use in your area. Any changes or modifications not expressly approved by Samson Technologies Corp. could void your authority to operate the equip- ment.

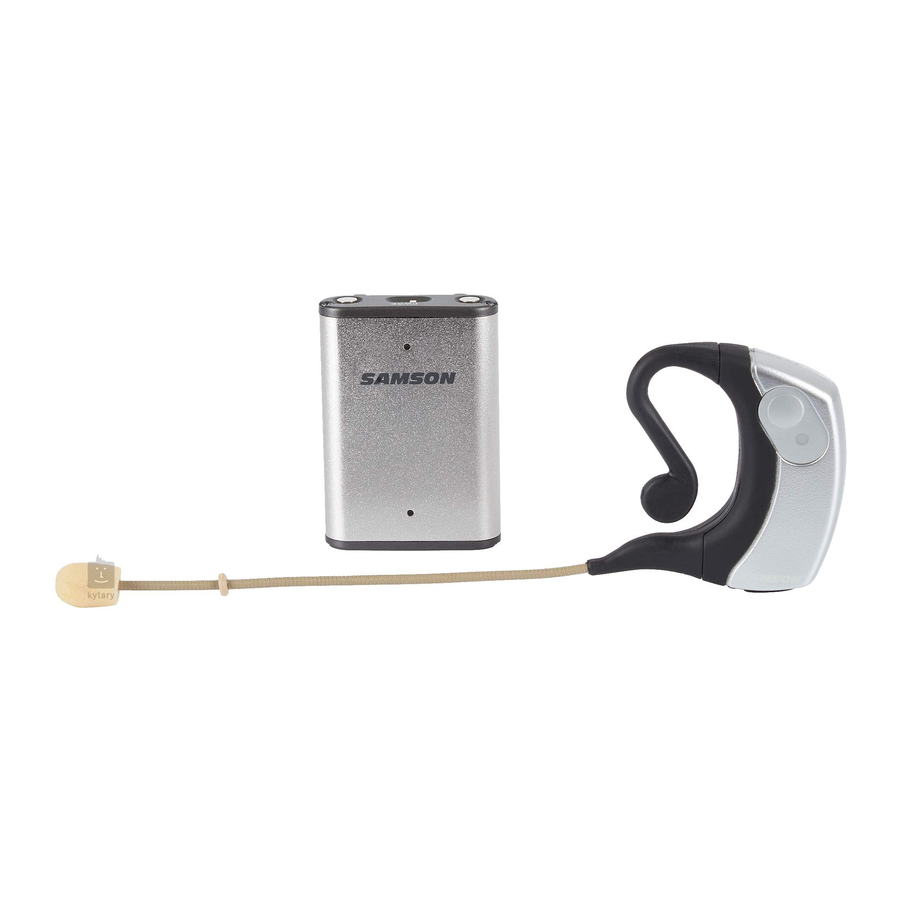

  • Page 6 Thank you for purchasing the Samson AirLine Micro Earset wireless system, a breakthrough in wireless microphone technology. Wireless systems were originally developed to eliminate cables. Samson took this one step further by creating the AH2 single earset transmitter, which provides unparalleled freedom of movement. The AirLine Micro features an integrated omnidirectional microphone and flexible gooseneck boom, which always allows you to obtain the perfect position to pick up your voice, even during active performances.
  • Page 7 Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your AirLine Micro Earset system was purchased outside of the United States, contact your local distributor for warranty details and service information.

  • Page 8: System Components

    Each system is shipped with one plug adaptor specific to the country USB Y-Power Cable where the system is purchased. Plug adaptors can be Universal AC Adaptor ordered through Samson. 1/8” to 1/4” Audio Cable 3 Windscreens...

  • Page 9: Quick Start

    Note: The channel number is laser-engraved on the back of the AR2 and AH2 chassis. If these channels do not match, please contact Samson Technical Support at 1-800-372-6766. If your unit was purchased outside of the United States, please contact your local distributor.
  • Page 10 Quick Start Remove the USB cable and continue with setup. Physically place the receiver where it will be used (if desired, the AR2 receiver model can be used with the included AR2D dock) and fully extend the antennas vertically. Turn your audio system off and connect the receiver’s 1/8” unbalanced output jack to the microphone or line level audio input of your amplifier or mixer.
  • Page 11 GREEN, indicating sufficient RF reception in all areas of coverage. If the AR2’s Status Indicator lights YELLOW, it desig- nates RF dropout or muted receiver. Reposition the device (or its antennas) as necessary. If extended range coverage is required, another AR2 true diversity receiver (set to the same channel as the transmitter) should be used. AirLine Micro Earset...

  • Page 12: Wearing The Ah2 Transmitter

    Wearing the AH2 Transmitter The AH2 can be re-sized to fit comfortably on your ear. Rotate the adjustment band up. (figure 1) Position the AH2 over your left ear so that the body of the transmitter is behind your ear. (figure 2) figure 1 Push the adjustment band down until it fits comfortably in your ear and is secure against your head.

  • Page 13: Guided Tour - Ar2 Receiver

    The Low Battery Indicator will flash BLUE when the unit is on, and the battery is low. When recharging the AR2, the LED will be steady BLUE until the battery is fully charged, then the indicator will turn off. AirLine Micro Earset...
  • Page 14 Guided Tour - AR2 Receiver 5. Audio Output Level Switch - Sets the audio output level of the unbalanced output to microphone or line level. 6. USB DC Power Input - Connect the supplied universal adaptor to recharge the internal lithium ion rechargeable battery or to power the receiver.

  • Page 15: Guided Tour - Ah2 Transmitter

    NOTE: The Universal AC Adaptor will charge the AH2 & AR2 faster than a computer USB port. NOTE: The USB port is only used for charging purposes and can’t be used for data exchange between a PC and the AH2. AirLine Micro Earset...
  • Page 16 Guided Tour - AH2 Transmitter 4. Multifunction Switch - Press and hold to turn the unit on or off. Press and release to mute or unmute the transmitter. To adjust the transmitter volume, while the AH2 is powered on, press and hold until the power turns off, release the switch, then press and hold the switch for 5 seconds and the Status Indicator will first flash GREEN then flashes YELLOW.
  • Page 17 2. Attach the included 1/8” to 1/4” audio cable to the audio output on the back panel of the AR2D. 3. To recharge the AR2 receiver, connect the USB Y-cable to the USB DC input on the back panel of the AR2D and connect the cable to the included Universal AC adaptor. AirLine Micro Earset...

  • Page 18: Specifications

    Specifications System Power Requirements Internal lithium ion Operating Frequency rechargeable battery or AC K Band 477.525 – 492.425 MHz adaptor E Band 863.125 – 864.875 MHz Battery Life ~6 hours Number of Channels Indicators Power On, Tone Key, K Band Transmitter Mute, Transmitter E Band Peak, Battery Low, Recharging...

  • Page 19: Airline Micro Channel Plan

    490.975 MHz 863.625 MHz 492.425 MHz 864.500 MHz 477.525 MHz 864.875 MHz 479.100 MHz 480.475 MHz *Not for use in the USA and Canada. For questions regarding available channels in your area contact your local Samson distributor. AirLine Micro Earset...
  • Page 20 AirLine Micro Function & Indicator Guide AH2 Earset Transmitter Status Earset Status Indicator Light Powering On Steady GREEN. Mute Intermittent GREEN flashes. Volume Adjust Intermittent YELLOW flashes. The indicator flashes faster as the volume is increased. The indicator flashes slower as the volume is decreased. Battery Low The indicator flashes BLUE.
