Summary of Contents for Samson AH2
-
Page 2: Table Of Contents
Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Wearing the AH2 Transmitter . . . . . . . . . . . . . . . . 7 Guided Tour - AR2 Receiver . -
Page 3: Introduction
10 hours of battery operation . Both the AH2 and AR2 can be recharged with the included AC adaptor and USB Y-cable . The AR2 can be powered directly off of the AC adaptor, for continuous operation . The AH2 and AR2 can also be recharged by USB bus power when connected to any USB host-equipped device . - Page 4 . Lithium-ion batteries need to be used for maximum life and performance . If you are not using your wireless system often, be sure to complete a full charge cycle at least every three months . If you need to replace your AH2 or AR2 battery please contact Samson or your local distributor .
-
Page 5: System Components
Each system is shipped with one plug adaptor specific to the country where the system is USB Y-Power Cable purchased. Plug adaptors can be ordered through Samson. Universal AC Adaptor 1/8” to 1/4” Audio Cable... -
Page 6: Quick Start
. Note: The channel number is laser-engraved on the back of the AR2 and AH2 chassis. If these channels do not match, please contact Samson Technical Support at 1-800-372-6766. If your unit was purchased outside of the U.S., please contact your local distributor. - Page 7 . Note: If the AH2 is muted, the AH2 Status Indicator LED will flash GREEN and the AR2 Status Indicator will flash GREEN. To unmute the AH2, press the Multi-Function Switch and the Status Indicator will light steady GREEN.
- Page 8 Status Indicator turns off, and release the switch . Then press and hold the Multi-Function Switch again for 5 seconds . The AH2 Status Indicator will first flash GREEN then flash YELLOW to show that you are in the Volume Adjustment mode .
-
Page 9: Wearing The Ah2 Transmitter
The AH2 can be re-sized to fit comfortably on your ear . 1 . Rotate the adjustment band up . (figure 1) 2 . Position the AH2 over your left ear so that the body of the transmit- ter is behind your ear . (figure 2) 3 . -
Page 10: Guided Tour - Ar2 Receiver
3. Status Indicator - This three-color LED acts as a multi-function meter, indicating power, transmitter tone-key status, transmitter mute, and transmitter peak . YELLOW AR2 Powered On, No Tone-Key Present GREEN AH2 On, Normal Operation Flashing GREEN AH2 Audio Muted Transmitter Input Overloaded Owners Manual... - Page 11 Guided Tour - AR2 Receiver 4. Low Battery Indicator - This BLUE LED displays the status of the battery . The Low Battery Indicator will flash BLUE when the unit is on, and the battery is low . When recharging the AR2, the LED will be steady BLUE until the battery is fully charged, then the indicator will turn off .
-
Page 12: Guided Tour - Ah2 Transmitter
NOTE: The Universal AC Adaptor will charge the AH2 & AR2 faster than a computer USB port. NOTE: The USB port is only used for charging purposes and cannot be used for data exchange between a PC and the AH2 transmitter. - Page 13 4. Multi-Function Switch - Press and hold to turn the unit on or off . Press and release to mute or unmute the transmitter . To adjust the transmitter volume, while the AH2 is powered on, press and hold until the power turns off, release the switch, then press and hold the switch for 5 seconds and the Status Indicator will first flash GREEN then flashes YELLOW .
-
Page 14: Ar2 Dock

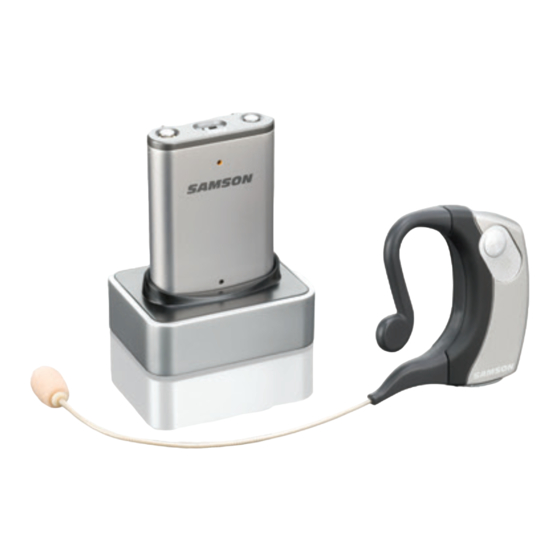

AR2 Dock 1/8” Audio Output USB DC Input For added convenience and easy setup, we have included the AR2D dock . To use the dock please follow these steps: 1 . Slide the AR2 receiver into the AR2D dock . There are two keys on the rear of the AR2 that will match up and align with the AR2D so that the receiver will fit correctly . -
Page 15: Specifications
Weight 42g (1 .5 oz .) Operating Temperature –18°C (0°F) to +40°C (+104°F) Storage Temperature –5°C (23°F) to +35°C (+95°F) AH2 Transmitter Audio Input Level -110 dBv ~ 0 dBv AR2 Receiver Volume Adjustment Steps Audio Output Connector 1/8” Unbalanced... -
Page 16: Airline Micro Channel Plan
AirLine Micro Channel Plan Channel Frequencies Channel Frequencies 642 .375 MHz 863 .125 MHz 642 .875 MHz 863 .625 MHz 644 .125 MHz 864 .500 MHz 644 .750 MHz 864 .875 MHz 645 .500 MHz 645 .750 MHz Airline Micro N-Channel wireless frequencies are within UHF TV frequency bands. Only certain channels may be available in particular areas. - Page 17 *Subject to license . Please contact your national frequency authority for information on available legal use in your area . Any changes or modifications not expressly approved by Samson Technologies Corp . could void your authority to operate the equipment .
- Page 18 CE Declaration We, Samson Technologies Corporation, located at 45 Gilpin Ave, Hauppauge, NY 11788 USA declare under our own responsibility that these devices are in conformity with the essential requirements of R&TTE Directive 1999/5/EC when installed in accordance with the installation instructions contained in the product documentation .
- Page 19 FCC Consumer Alert for Wireless Microphones Most users do not need a license to operate this wireless microphone system . Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts);...
- Page 20 Steady BLUE . Indicator turns off when the battery is fully charged . AR2 Receiver Status Receiver Indicator Lights Powering On Status Indicator: Steady YELLOW . (AR2: ON, AH2: OFF) Powering On Status Indicator: Steady GREEN . (AR2: ON, AH2: ON) AH2 Mute Status Indicator: Intermittent GREEN flashes .
