Led) Status - Sun Microsystems SG-XPCIE1FC-EM8-Z Installation Manual

LEDs

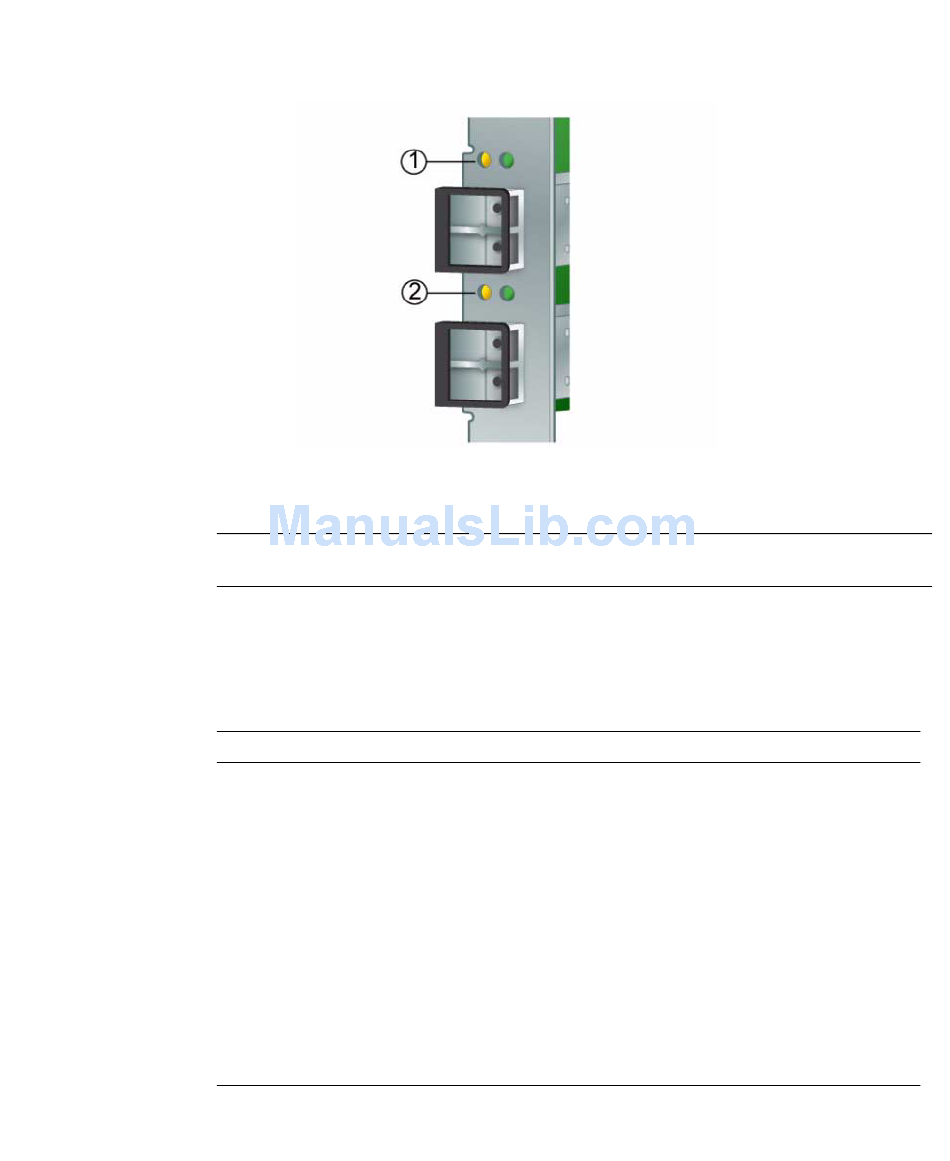

FIGURE 2-5
Figure Legend
1 Port 0 LEDs
2 Port 1 LEDs
4. Observe the light-emitting diode (LED) status for the power-on self test (POST)
results as shown in
LED Status
TABLE 2-2
Green LED Yellow LED
Off Off
Off On
Off Slow Blink
Off Fast Blink
Off Flashing
On Off
On On
On 2 Fast Blinks
On 3 Fast Blinks
On 4 Fast Blinks
.
TABLE 2-2
State
Wake-Up Failure (Dead Board)
POST failure (Dead Board)
Wake-Up Failure Monitor
Failure in POST
POST Processing in Progress
Failure While Functioning
Failure While Functioning
2 Gb Link Rate – Normal, Link up
4 Gb Link Rate – Normal, Link up
8 Gb Link Rate – Normal, Link up
Chapter 2 Hardware Installation and Removal 15
