a. Remove the transceiver from its cage assembly (see
Caution – This is a delicate operation–take care not to damage the transceiver.

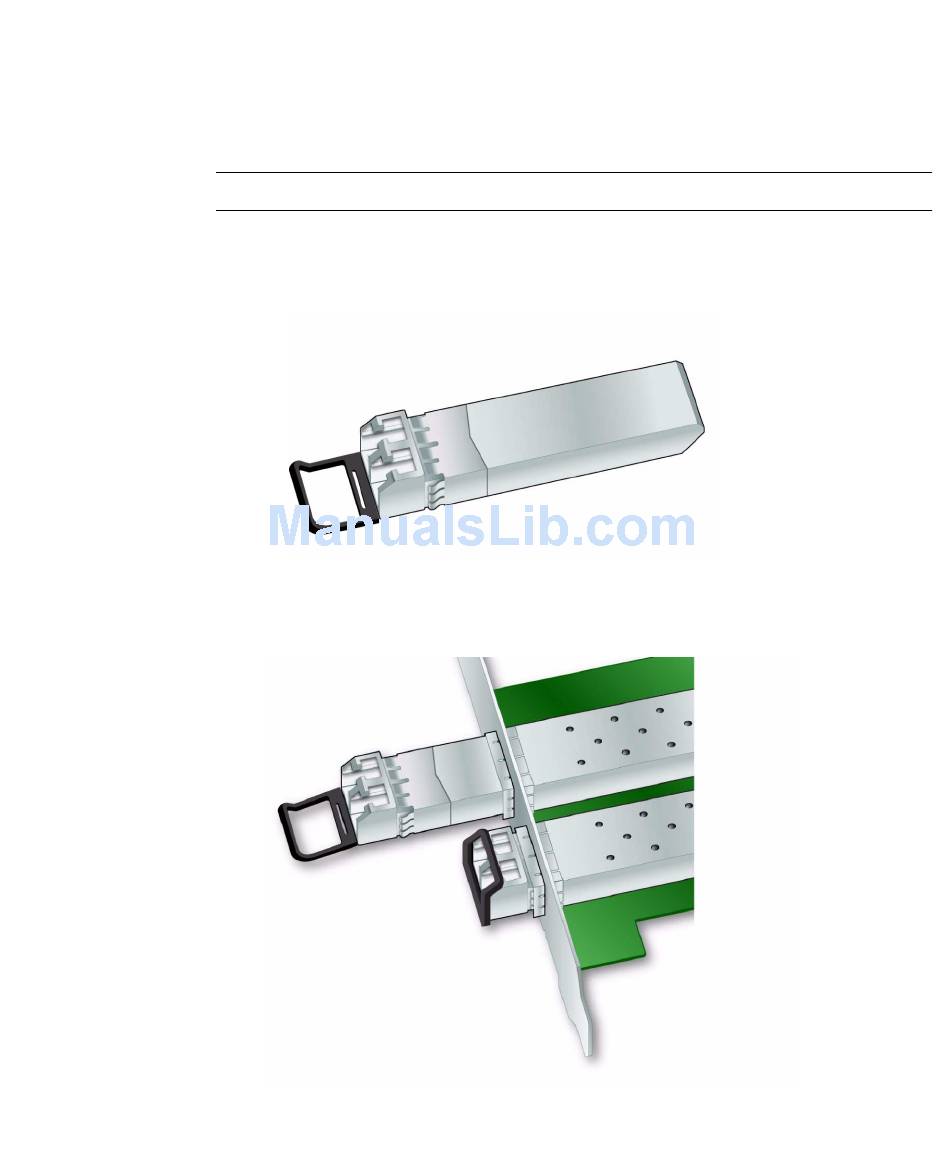

FIGURE 2-1
A Partly Extracted Optical Transceiver and an Optical Transciever That is Latched In Place
FIGURE 2-2
bail (handle) out and down to release the latch and gently pull the
transceiver out of its housing.
Do not force it. After the latch is released, the transceiver slides out easily..
Optical Transceiver
FIGURE 2-2
Chapter 2 Hardware Installation and Removal
) by pulling the
