b. Observing ESD precautions, store the transceiver in an ESD-safe place.
c. Remove the mounting bracket screws from the top of the HBA.

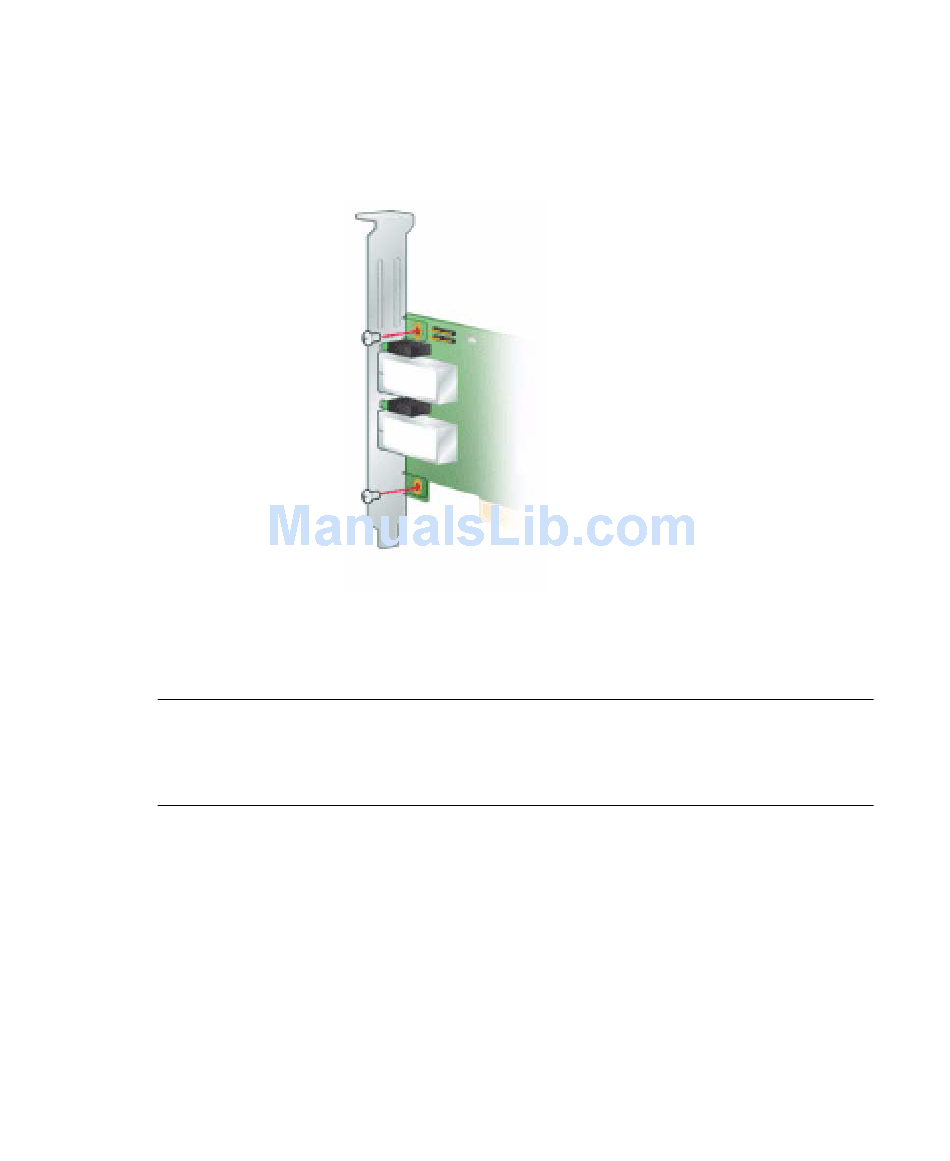

FIGURE 2-3
d. Remove the bracket and store it for future use.
e. Align the new mounting bracket tabs with the holes in the HBA.
Caution – Be careful not to push the bracket past the transceiver housing's
grounding tabs.
Make sure the LEDs are properly aligned with the holes in the bracket.
f. Re-install the screws that attach the HBA to the bracket.
g. Re-install the transceiver by sliding it into the housing.
h. Push the bail back into place.
7. Insert the HBA into the empty PCI-Express 8-lane slot and press firmly until
the adapter is seated.
8. Secure the mounting bracket of the HBA to the case with the panel screw or
clip.
12 Sun StorageTek 8 Gb FC PCI-Express HBA, Emulex Installation Guide • December 2008
Removing the Bracket Mounting Screws
When the latch engages, it clicks.
