Although VLANs are commonly used to create individual broadcast domains
and/or separate IP subnets, it can be useful for a server to have a presence on more
than one VLAN simultaneously. Several Sun products support multiple VLANs on a
per port or per interface basis, allowing very flexible network configurations.
FIGURE 4-1
VLAN 1
VLAN 2
VLAN 3
Shared
Media
Segment
Software
PC 1
(VLAN 2)

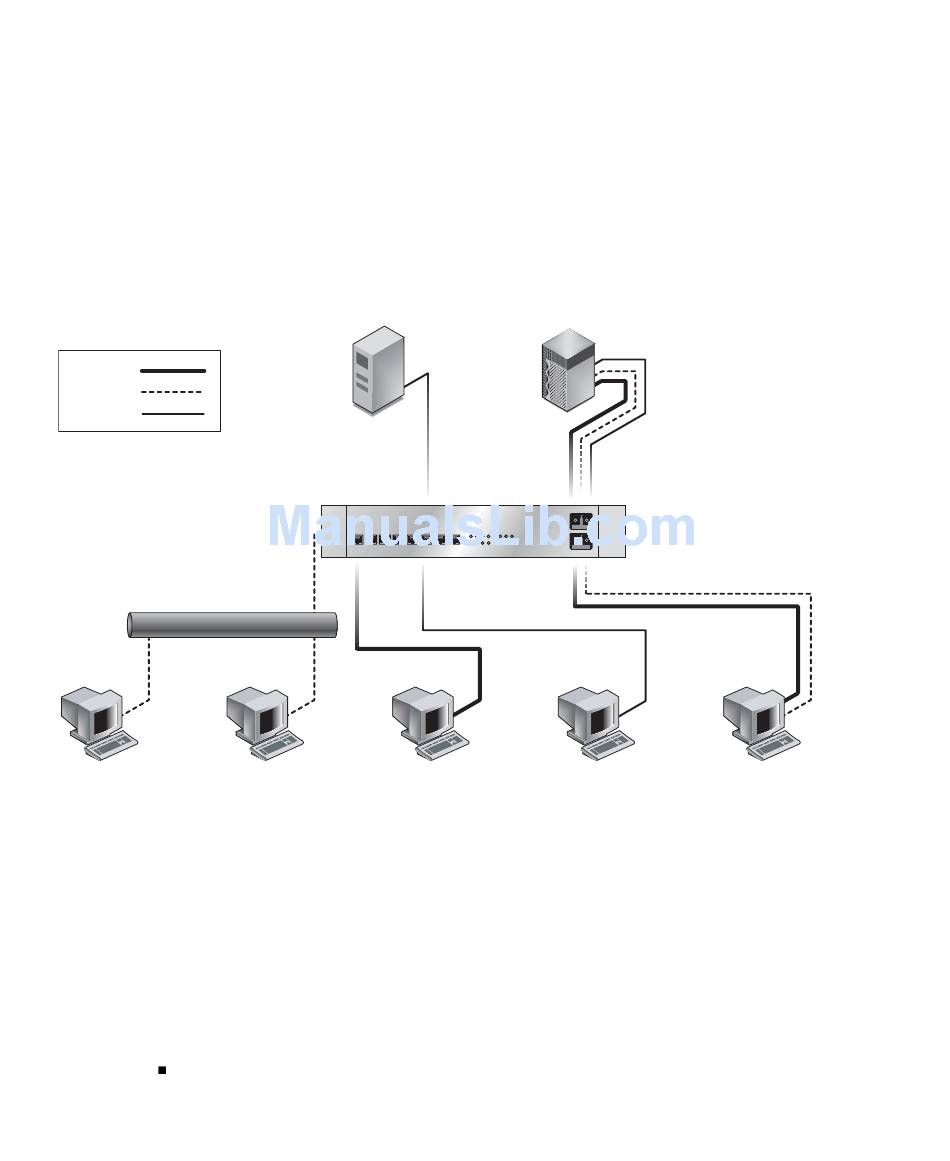

Example of Servers Supporting Multiple VLANs With Tagging Adapters
FIGURE 4-1
The example network has the following features:
The physical LAN network consists of a switch, two servers, and five clients. The
LAN is logically organized into three different VLANs, each representing a different
IP subnet.
VLAN 1 is an IP subnet consisting of the Main Server, Client 3, and Client 5. This
represents an engineering group.
38 Sun 10-Gigabit Ethernet PCI-X Adapter Installation and User's Guide • December 2005
shows an example network that uses VLANs.
Accounting
Server
(VLAN 3)
Software Engineering
PC 2 PC 3
(VLAN 2) (VLAN 1)
Main Server
Adapter
Gigabit/Tagged
(All VLANs)
Accounting
PC 4
(VLAN 3)
Engineering/
Software PC 5
Adapter
Gigabit/Tagged
(VLAN 1 & 2)
