To Install the Optical Transceiver

The Sun 10-Gigabit Ethernet PCI-Xadapter requires an optical transceiver to create
and Ethernet connection. The optical transceiver Part Number: 135-1172-01 is
available from Sun Microsystems.

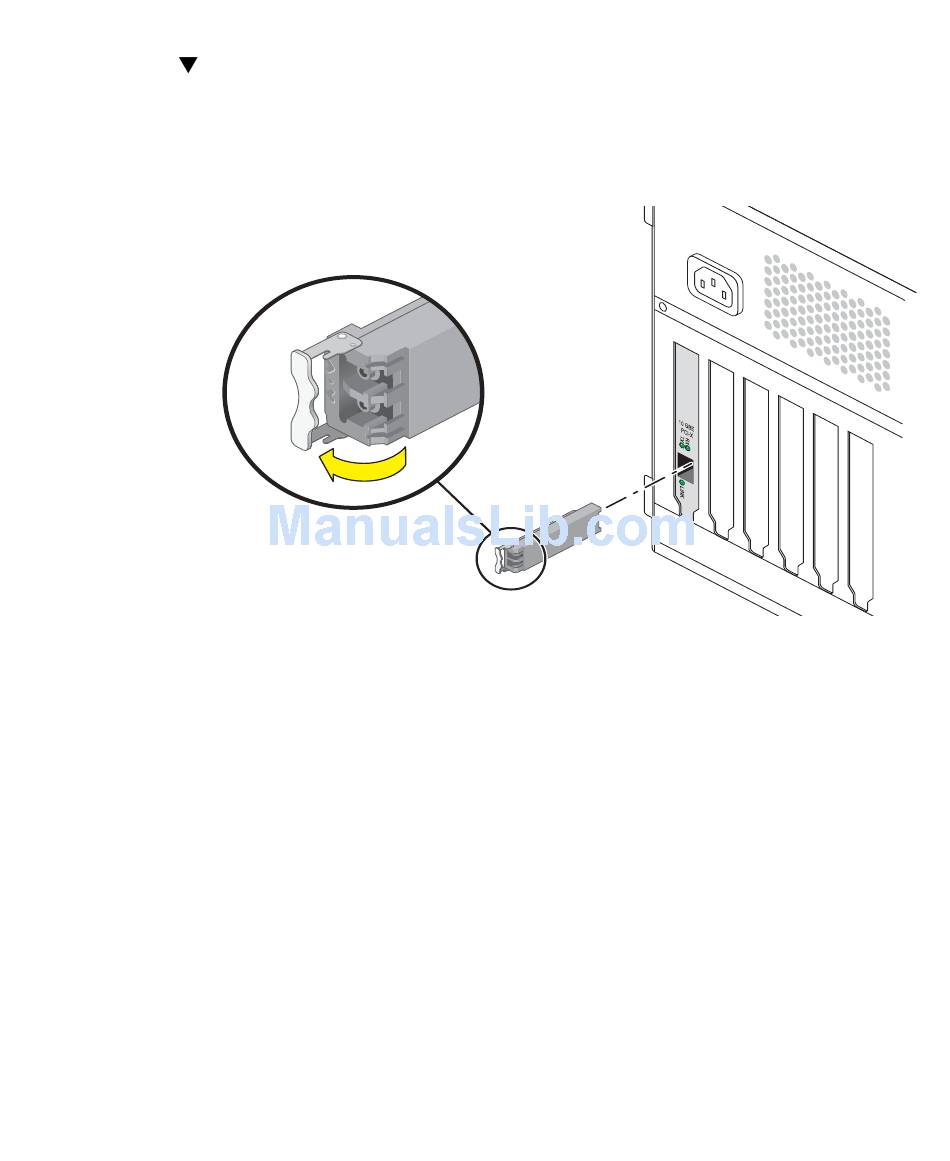

1. Pull the white locking handle into the full horizontal position.
You will feel the handle click into position when it is fully opened.
2. Holding the optical transceiver by the edges, align the transceiver with the slot in
the Sun 10-Gigabit Ethernet PCI-Xadapter and slide it into the opening.
3. Applying even pressure at both corners of the transceiver, push the transceiver
until it is firmly seated in the slot.
Chapter 2 Installing the Adapter 7
