Page 1: Installation Instructions

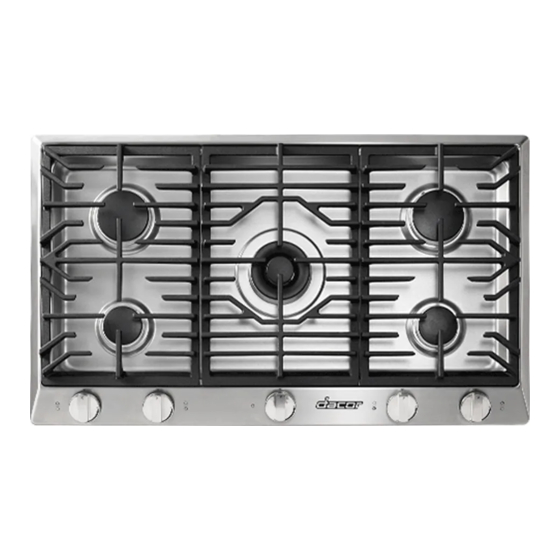

Installation Instructions Heritage Series Gas Cook top ® Models HCT305G, HCT365G Part No. 113554 Rev. B... -
Page 2: Table Of Contents
Phone: 833-35-ELITE (833-353-5483) USA, Canada M – F, 5:00 a.m. to 5:00 p.m. Pacific Time Website: www.dacor.com/customer-care/contact-us Product data label All specifications are subject to change without notice. Dacor assumes no liability for such changes. © 2018 Dacor. All Rights Reserved. -
Page 3: Important Safety Instructions
• Installation and service must be performed by a qualified technician, caution when installing/maintaining/operating the cooktop. service agency, or gas supplier. • Always contact Dacor Customer Assurance (see info, previous • If you smell gas: page) about issues you cannot resolve. -
Page 4: General Safety Precautions
Important Safety Instructions General Safety Precautions To promote household safety when using the cooktop, follow basic safety precautions, including these precautions: WARNING • Read the cooktop use and care manual completely before operating this appliance. • Keep packaging materials away from children. (Plastic sheets/bags are suffocation hazards.) •... -
Page 5: Electrical Requirements
Important Safety Instructions Gas-Supply Requirements Electrical Requirements • Verify that the cooktop matches your provided gas service WARNING (natural gas or liquid propane). To avoid an electric shock hazard, the power supply must meet the • If using the cooktop above 4000 ft. (1219 m) elevation, ensure specifications below. -
Page 6: Installation Specifications
Installation Specifications Product Dimensions All tolerances: ±1/16” (±1.6 mm) unless otherwise noted. HCT305G and HCT365G W x H x D Dimensions WARNING Observe applicable codes and ordinances during planning/ installation. Contact your local building authority for details. HCT305G/-365G Utility Locations Cooktop/Chassis Overhang Dimensions Model A (width) -
Page 7: Cabinet And Countertop Layout
30” min. Combustible Downdraft Compatibility (76.2 cm) surface to rear If installing the cooktop with a downdraft, use only the approved See cutout Dacor downdraft model numbers below. dimensions 1 5/8” min. Cooktop Model Approved Downdraft (4.1 cm) HCT305G ERV3015... -
Page 8: Cutout Dimensions
Installation Specifications Cutout Dimensions All tolerances: ±1/16” (±1.6 mm) unless otherwise noted. Rear wall Vertical combustible surface 4 1/4” (10.8 cm) min. from mounting surface to combustibles below cooktop chassis Minimum distance to combustible side 1 5/8” min. wall above countertop (both sides) (4.1 cm) Configuration (C) Minimum... -
Page 9: Installation Instructions
• Stainless-steel cleaner (1; stainless-steel models only) • Do not overtighten the gas connections/fittings. If parts are missing, contact Dacor Customer Assurance. (See If • Do not use Teflon tape or plumber’s putty on flexible gas-line con- You Need Help…, inside cover.) nections. -
Page 10: Assembling The Burners
Installation Instructions Assembling the Burners Inner burner cap (bottom) WARNING • Never operate the cooktop with burner parts removed. Outer burner cap • All burner air-mixture settings are done at the factory; do not try to adjust these settings.. Remove the burner heads, rings, caps, and grates from their packaging. -
Page 11: Placing The Grates
Installation Instructions Placing the Grates When a grate is correctly installed, the tips of the four longest fingers center over the corresponding burner. ♦ Use the grate notches to place and orient the grates. – The notches beneath the grates fit the cooktop rear. –... -
Page 12: Verifying Proper Function
Turn off the burner. cover for this information.) 7. Turn the gas-supply valve ON. Dacor is not responsible for the cost of correcting problems 8. Verify that the gas flame ignites on all burners: caused by faulty installation. a. Press-turn a control knob to the flame icon. -
Page 13: Installer Checklist
Installation Instructions □ Installer Checklist Was the gas-supply inlet pressure verified to be within the maximums specified in this manual? (Pg. 3.) □ Is the cooktop secured with the provided hold-down brack- IMPORTANT ets? (Pg. 8.) □ Is the cooktop connected to the gas supply as instructed and Though the installer should complete this checklist to ensure proper installation/function, the homeowner is ultimately responsible for the per applicable codes? Was the gas supply checked for leaks? - Page 14 Notes...
- Page 15 Notes...
- Page 16 Dacor ● 14425 Clark Avenue, City of Industry, CA 91745 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.dacor.com...
