User Manual
®
Distinctive

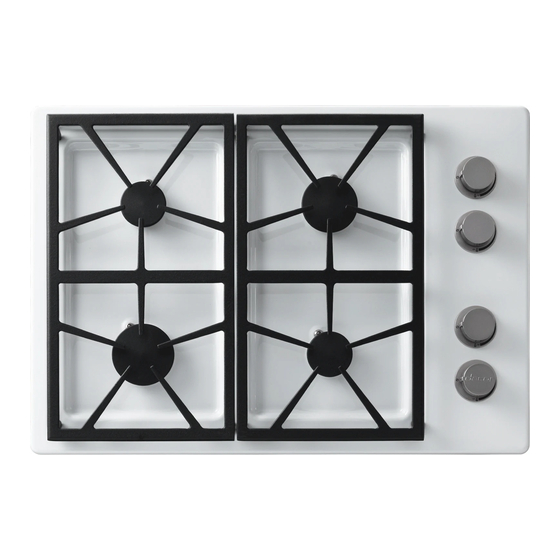

Gas Cooktop
Models DTCT304G, DTCT365G, DTCT466G,
HPCT466GB, HPCT466GS
T a b l e o f C o n t e n t s
Important Safety Instructions ................................. 1
Getting to Know Your Cooktop ............................. 4
Setting Up Your Cooktop ...................................... 5
Operating Your Cooktop ...................................... 6
Care and Cleaning ............................................. 8
Troubleshooting ................................................ 10
Warranty and Service ....................................... 11
Warranty Card .................................... Back Cover
Part No. 108857 Rev. D
Advertisement
Related Manuals for Dacor Distinctive DTCT466G
Summary of Contents for Dacor Distinctive DTCT466G
-
Page 1: Table Of Contents
User Manual ® Distinctive Gas Cooktop Models DTCT304G, DTCT365G, DTCT466G, HPCT466GB, HPCT466GS T a b l e o f C o n t e n t s Important Safety Instructions ......... 1 Getting to Know Your Cooktop ......4 Setting Up Your Cooktop ........5 Operating Your Cooktop ........ - Page 2 Website: www.dacor.com/customer-care/contact-us Thanks for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor cooktop will deliver a top-level performance and enjoyment for decades to come.
-
Page 3: Important Safety Instructions
Immediate hazards that WILL result in severe Date of purchase___________________________ personal injury or death. Dacor keeps improving the quality and performance of our products, so when changes are made to the WARNING cooktop, new versions of the manual are created. - Page 4 Important Safety Instructions General Safety Precautions To reduce the risk of fire, electric shock, serious injury or death when using your cooktop, follow basic safety precautions, including the following: WARNING WARNING • If you receive a damaged product, immediately • Do not heat unopened food containers such as baby contact your dealer or builder.
- Page 5 Important Safety Instructions WARNING WARNING • Use only dry pot holders when removing food and TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE: cookware from the cooktop. Wet pot holders can cause steam burns.
-
Page 6: Getting To Know Your Cooktop
Smart Flame™ Technology: All burners are easily cleaned. equipped with Dacor’s Smart Flame technology. By Spill Trays: The spill trays catch any food that falls reducing the flame and flame temperature, Smart through the cooktop grates. -
Page 7: Setting Up Your Cooktop
Setting Up Your Cooktop Assembling the Burners and Grates Tabs WARNING Assemble the burners and grates only when the cooktop is cool. 1. Put the burner ring on the burner base as shown Burner ring in Figure 1 and Figure 2. Be sure to match the correct size. -
Page 8: Operating Your Cooktop
Operating Your Cooktop Selecting the Cookware Lighting a Burner WARNING WARNING • NEVER cover the slots between the burner control • To avoid the chance of fire, explosion or carbon knobs and the trim rings on the cooktop. Doing so monoxide poisoning, do not attempt to use your blocks air flow through the cooktop and may cause cooktop without the burners completely and properly... - Page 9 The griddle is • To ensure that the burners operate properly, designed to sit on top of your burner grates. Dacor keep the burner igniters, burner rings, and recommends not to exceed the medium tempera- burner caps clean and dry.
-
Page 10: Care And Cleaning
Care and Cleaning Disassembling for WARNING Cleaning • Clean only the parts of the cooktop listed in this Refer to this figure manual. Clean them only in the manner specified. for the following • To avoid dangerous fumes or damage to your disassembling cooktop’s surfaces and accessories, use only the types instructions. - Page 11 IMPORTANT: The igniter will not work correctly if it • Clean stainless steel surfaces with the Dacor or the other burner parts are not clean. Dirty or wet Stainless Steel Cleaner included with your igniters may not spark at all.
-
Page 12: Troubleshooting
Troubleshooting Problem — Solution Guide Problem May Be Caused By What to Do (Solution) Nothing works. Cooktop is not connected to Check to make sure power cord is con- electrical power source. nected to electrical outlet. Power to electrical outlet is off. Turn on power at circuit breaker or fuse box. -
Page 13: Warranty And Service
Dacor’s Customer Service center is available 6:00 . – 5:00 . Pacific Time For warranty repairs or questions and for Dacor Distinctive Service (DDS) in the US and Canada Phone: (800) 793-0093, extension 2822 For non-warranty repairs or questions in the US and Canada... - Page 14 LIMITED FIRST YEAR WARRANTY stances. If your Dacor product fails to function within one THE REMEDIES PROVIDED IN THE ABOVE EXPRESS year of the original date of purchase due to a defect...
- Page 15 NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTY PROCESSING DEPT PO BOX 90070 CITY OF INDUSTRY CA 91715-9907...
- Page 16 Dacor product, please return all forms in one envelope, or activate the warranty online for each product. Please be assured that Dacor will never sell your name or any information on this form for mailing-list purposes, as we do not...
