Installation Instructions
Heritage

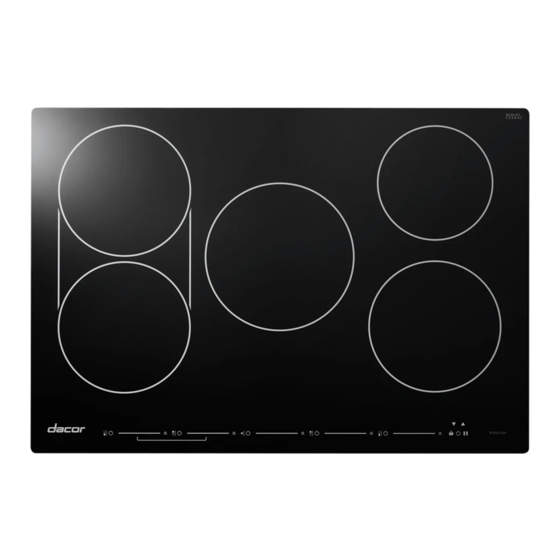

Touch-Control Induction Cooktop
®
Models HICT305BG, HICT365BG
Part No. 113775 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heritage HICT305BG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dacor Heritage HICT305BG

Summary of Contents for Dacor Heritage HICT305BG

  • Page 1 Installation Instructions Heritage Touch-Control Induction Cooktop ® Models HICT305BG, HICT365BG Part No. 113775 Rev. A...

  • Page 2: Table Of Contents

    Phone: 833-35-ELITE (833-353-5483) USA, Canada Mon – Fri, 5:00 am-5:00 pm Pacific Time Website: www.dacor.com/customer-care/contact-us READ AND SAVE THESE INSTRUCTIONS All specifications are subject to change without notice. Dacor assumes no liability for such changes. ® © 2018 Dacor. All Rights Reserved.

  • Page 3: Important Safety Instructions

    • The Important Safety Instructions and warnings in this manual do not cover all possible issues that may arise; therefore, during installation/maintenance/operation, be cautious and use common sense. • Always contact Dacor Customer Assurance (see If You Need Help…, previous page) with questions/issues you cannot resolve via the Installation Instructions and User Manual.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS General Precautions, cont. WARNING • Concerning cooking practices: - Use the cooktop only for cooking tasks consistent with a residential appliance. The cooktop is not engineered for commercial/industrial use. - Do not let pans boil dry. - Do not turn the cooktop ON with empty cookware on a cooking element. - To avoid steam burns, use only dry potholders to handle cookware, and use extreme caution when adding water to food in a hot pan.

  • Page 5: Consignes De Sécurité Importantes

    / la maintenance / le fonctionnement, soyez prudent et faites preuve de bon sens. • Contactez toujours l’assurance du client Dacor (voir Si vous avez besoin d’aide ..., page précédente) avec des questions / problèmes que vous ne pouvez pas résoudre via les instructions d’installation et le manuel de l’utilisateur.
  • Page 6 CONSIGNES DE SÉCURITÉ IMPORTANTES Précautions générales, suite ATTENTION • Concernant le service / maintenance de la table de cuisson: - Avant d’installer / réparer l’unité, éteignez le panneau de service, puis verrouillez le panneau pour éviter que l’alimentation ne soit allumée. Si le panneau ne peut pas être verrouillé, fixez fermement / en évidence un dispositif d’avertissement (par exemple, une étiquette) sur le panneau de service.

  • Page 7: Installation Specifications

    INSTALLATION SPECIFICATIONS Electrical Specifications WARNING • To reduce risk of fire, and cooktop malfunction/damage, be sure to IMPORTANT exceed all min/max clearances in these instructions. • Do not modify the cooktop’s electrical conduit. The cooktop’s electrical-connection lead wires may be a smaller •...

  • Page 8: Appliance Dimensions

    INSTALLATION SPECIFICATIONS Appliance Dimensions All tolerances: ±1/16 (±1.6 mm), unless otherwise stated This section contains pertinent appliance dimensions that will help you plan for the countertop cutout and under-counter clearances. HICT305BG HICT365BG • Chassis depth is 1/2” wider and deeper at the base of the glass cooking surface. •...

  • Page 9: Cabinet Cutout Dimensions

    INSTALLATION SPECIFICATIONS Cabinet-Cutout Dimensions All tolerances: ±1/16 (±1.6 mm), unless otherwise stated See Page 8 for flush- and downdraft-installation cutouts. Cabinet Clearances Model HICT305BG 30” (76.2 cm) 28 3/4” (73.0 cm) HICT365BG 36” (91.4 cm) 34 3/4” (88.3 cm) Callout Description 30”...
  • Page 10 (See the downdraft’s installation instructions, available for HICT305BG 30 1/8” (76.5 cm) 28 3/4” (73.0 cm) download at www.dacor.com, to determine the exact dimensions.) • Sealing is also required between the cooktop chassis and the HICT365BG 36 1/8” (91.8 cm) 34 3/4”...

  • Page 11: Cooktop/Wall-Oven Combination

    INSTALLATION SPECIFICATIONS Cooktop/Wall-Oven Combination All tolerances: ±1/16 (±1.6 mm), unless otherwise stated Combination HICT Cooktop/Wall Oven Installation Dimensions Wall Oven (A) Min. C’top to (C) Min. Wall to (D) Countertop Front (E) Min. Cabinet Face (B) Cutout Depth Comments Model Oven Platform Cutout Back to Cutout Front...

  • Page 12: Installation Instructions

    • HICT Induction Glass Cooktop • Foam tape • Hold-down brackets (2) • Glass scraper (PN 82499) • Dacor Cooktop Cleaning Creme (PN A300) • Product literature If any item is damaged/missing, contact your dealer immediately. Do not install a damaged/incomplete cooktop.
  • Page 13 INSTALLATION INSTRUCTIONS Three-Wire Electrical Connection 1. Separate the wires exiting the cooktop conduit. 2. Connect the black wire from the cooktop to the black (L1) sup- IMPORTANT ply wire in the junction box. 3. Connect the red wire from the cooktop to the red (L2) supply No white-wire connection is needed for this 3-wire appliance.

  • Page 14: Verifying Proper Function

    If the cooktop still does not work, do not try to repair it but con- 1. Turn on power to the cooktop at the circuit-breaker or fuse box. tact Dacor Customer Assurance. (See inside front cover for con- tact information.) 2.

  • Page 15: Wiring Diagram

    WIRING DIAGRAMS...
  • Page 16 Dacor ● 14425 Clark Avenue, City of Industry, CA 91745 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.dacor.com...
