  • Page 3: Serial Number Location

    SERIAL NUMBER LOCATION Always give your dealer or distributor the serial number of your UCL Advanced FSHRS when ordering parts or requesting service or other information. The serial number plate is located where indicated. Please mark the number in the space provided for easy reference.

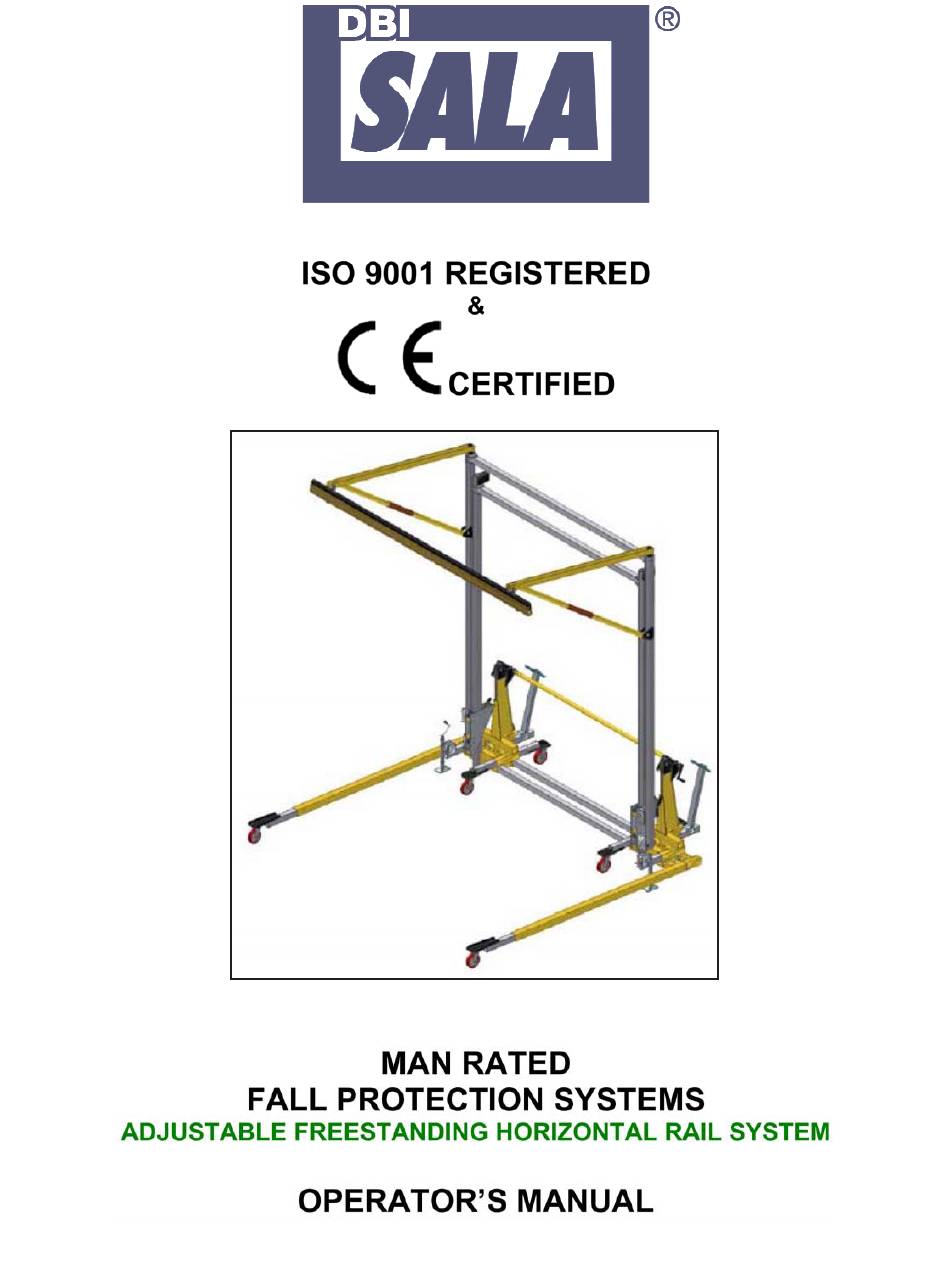

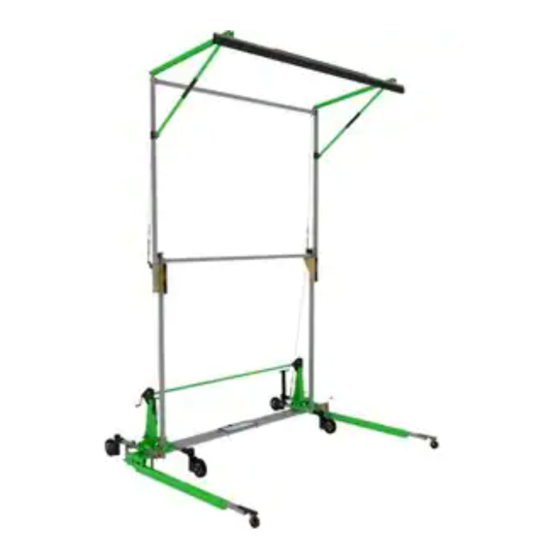

  • Page 4 Congratulations on your choice of a Unique Concepts Man Rated Adjustable Freestanding Horizontal Rail Fall-Arrest System (FSHRS) to compliment your fall arrest applications. This equipment has been designed and manufactured to meet the needs of a discriminating operator for the efficient access and egress from working heights while incorporating fall protection.

  • Page 5: Safety Alert Symbol

    SAFETY SAFETY ALERT SYMBOL This Safety Alert symbol means The Safety Alert symbol identifies important ATTENTION! BECOME ALERT! safety messages on your equipment and in the YOUR SAFETY IS INVOLVED! manual. When you see this symbol, be alert to the possibility of personal injury of death. Follow the instructions in the safety message.

  • Page 6: General Safety

    Unique inspecting the equipment. Concepts Man Rated FSHRS. YOU must ensure that you and anyone else who is going 2. Refer to and follow applicable ANSI, OSHA, CE to operate, maintain, inspect or work around the or other Standards and local regulations.
  • Page 7 13. Do not use the equipment around physical OPERATING SAFETY or environmental hazards. This list includes but is not limited to: 1. Read, understand and follow the Operator’s a. Corrosion that may affect the structural Manual and signs on the equipment before integrity of the life line or other components using, maintaining or inspecting the b.
  • Page 8 OPERATING, NEW OPERATOR OR OWNERS It is the responsibility of the owner’s The UCL ADVANCED FSHRS is designed to organization or operator to read this manual attach to a person working at a height to and to train all other operators before they provide protection against injuries resulting from start working with the equipment.

  • Page 9: Operating Safety

    OPERATING SAFETY 1. Read, understand and follow the User 12. Establish a regular training program for Manual and signs on the equipment before new and experienced workers. using, maintaining or inspecting the equipment. 13. Establish a detailed inspection program for your equipment and document the findings.

  • Page 13: Maintenance And Inspection

    1. Visual Inspection 1. Clean FSHRS System Perform a complete visual inspection. Refer Thoroughly clean the FSHRS System using to Section 4.2.1 excluding .2. Refer to mild soap on the body and labels. Be sure quarter year inspection for 4.2.1.2. Remove the labels are legible.
  • Page 14 4.1.2 Lubricants 1. Chain Lubricant Use a light lubricant like WD-40 to lubricate the chain. 2. Brake and Drive Lubricant Use WD40.
  • Page 15 Inspection 4.2.1 Visual Inspection A complete visual inspection should be performed on the FSHRS System equipment you are using prior to the operation. The following items should be checked; and the results recorded on the “Inspection Log” sheet (see Section 4.3).
  • Page 16 Overload gusset assembly bends, or breaks. Minor cosmetic damage in the component body will not affect the function of the FSHRS System. However if there are major dents or any other structural damage, the unit should be removed form service and returned to the manufacturer for service.
  • Page 17 See Figure 4.2.1.7. Figure 4.2.1.7 4.2.2 Functional Inspection A functional check should be performed on the FSHRS prior to every use. The following functional tests should be done; and the results recorded on the “Inspection Log” sheet (Section 4.3). 1. System Operation and Adjustments 2.
  • Page 21 LABELS 5.1 Warning Labels The UCL ADVANCED FSHRS uses a label rating system that is attached to all components on the system. The operator and/or entrant must establish the local standards by a qualified engineer and only then, a decision can be made by the rating labels...

  • Page 22: Specification Sheets

    6 SPECIFICATION SHEETS 6.1 General These specification sheets contain information necessary for the proper installation and use of the equipment mentioned in this manual. These specifications contain application specific ratings and mounting requirements determined through design and testing. Please read and follow these specification sheets carefully to ensure the proper installation of each item.
  • Page 23 UCL Free Standing Horizontal Railing System c/w Urethane Wheels SPECIFICATIONS PAGE 1 OF 4 Model#: 8520216 / 8520215 Model 8520216/8520215 8520216 8520215 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 • Northern Europe: +44 (0) 1928 571324 REGISTERED www.capitalsafety.com •...
  • Page 24 UCL Free Standing Horizontal Railing System c/w Urethane Wheels SPECIFICATIONS PAGE 2 OF 4 Model#: 8520216 / 8520215 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 • Northern Europe: +44 (0) 1928 571324 REGISTERED www.capitalsafety.com •...
  • Page 25 UCL Free Standing Horizontal Railing System c/w Urethane Wheels SPECIFICATIONS PAGE 3 OF 4 Model#: 8520216 / 8520215 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 • Northern Europe: +44 (0) 1928 571324 REGISTERED www.capitalsafety.com •...
  • Page 26 UCL Free Standing Horizontal Railing System c/w Urethane Wheels SPECIFICATIONS PAGE 4 OF 4 Model#: 8520216 / 8520215 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 • Northern Europe: +44 (0) 1928 571324 REGISTERED www.capitalsafety.com •...

  • Page 27: Service Centers

    8. SERVICE CENTERS 8.1 General This list provides a general list of the manufacturer(s) as well as cetified service centres in different countries. If you require assistance in finding the closest service centre please call the manufacturer(s) directly. Manufacturer(s) EUROPE / MIDDLE EAST / AFRICA CANADA Capital Safety Group E.M.E.A.
  • Page 28 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 • Northern Europe: +44 (0) 1928 571324 www.capitalsafety.com • info@capitalsafety.com Printed in Canada Revision Number: 03 Issue Date: March 21, 2007...

This manual is also suitable for:

85202168520215
